(2-02) - RADIATOR AND BAFFLES

Запчасти Case IH 1194 (2-02) - RADIATOR AND BAFFLES (02) - ENGINE

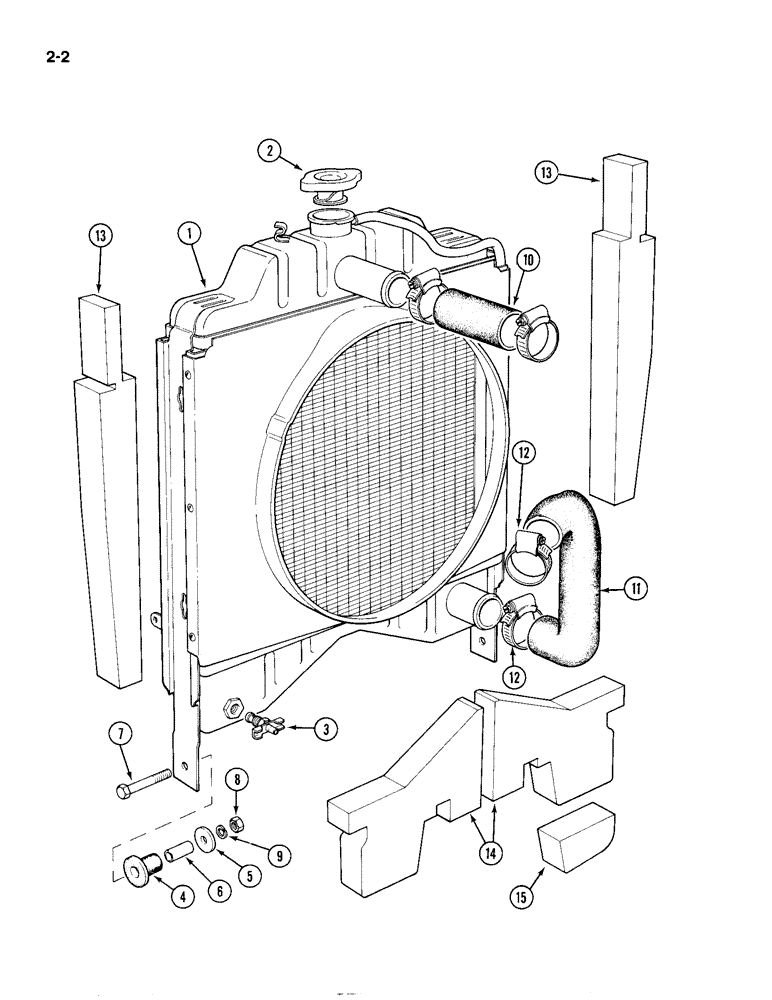

Схема запчастей Case IH 1194 - (2-02) - RADIATOR AND BAFFLES (02) - ENGINE
11
12
13
5
2
3
7
8
9
10
1
4
6
12
15
13
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K307836

RADIATOR

- standard, Includes: Ref. 2

1шт.

1

K307838

RADIATOR

- tropical, Includes: Ref. 2

1шт.

2

K956638

CAP

- fill, 10 PSI (69 kPa)

1шт.

3

K622060

PLUG, DRAIN

VALVE - drain, 1/4 inch BSP

1шт.

4

K200734

MOUNTING PARTS

MOUNT - rubber

2шт.

5

K88751

WASHER

- 3/8 inch, special

2шт.

6

K627321

BUSHING

SPACER

2шт.

7

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

2шт.

8

280136

NUT,3/8"-16, G8

2шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

10

K37575

HOSE

- radiator inlet

1шт.

11

K200874

RADIATOR HOSE,1.50" ID x 6.81", SAE J20-R4 SC D1

Outlet (without cab) 1.50" ID x 6.81", SAE J20-R4 SC D1

1шт.

11

K203991

HOSE

- radiator outlet (with cab)

1шт.

12

K622029

CLAMP

- hose 1-3/4 inch (44 mm)

4шт.

13

K307938

BAFFLE

- radiator, side

2шт.

14

K307979

BAFFLE

- radiator, lower

2шт.

15

K307980

BAFFLE

- radiator

1шт.

K261710

COWL

SCREWS

8шт.

K261710

COWL

PLASTIC COWL

1шт.
