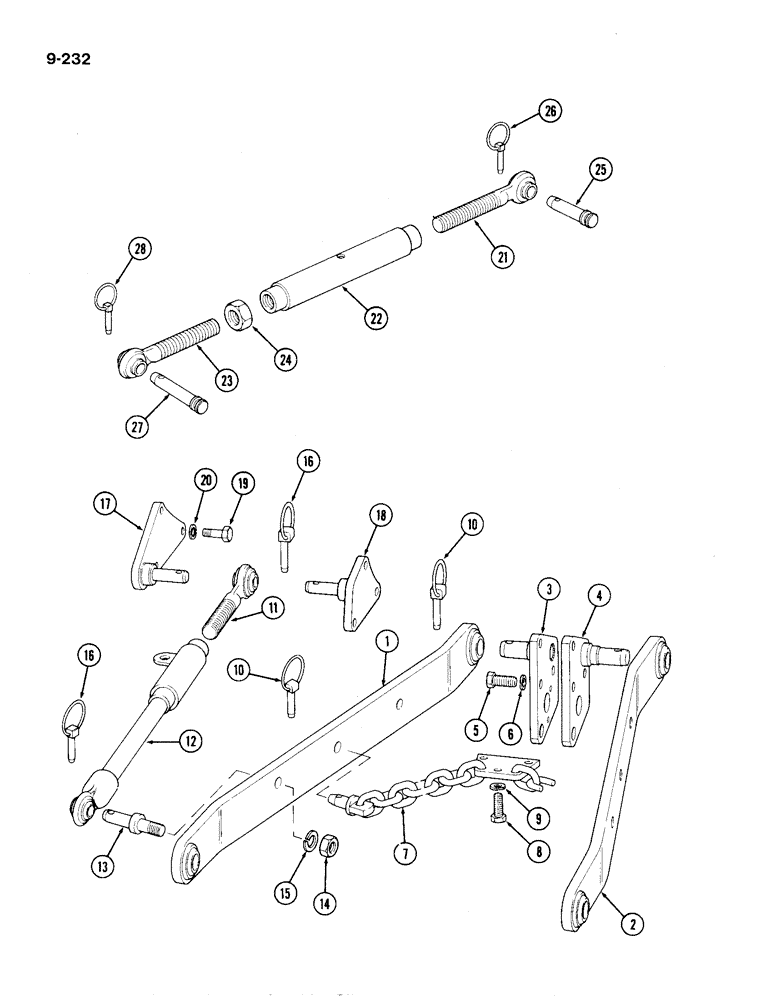

Запчасти Case IH 1194 (9-232) - LINKS AND STABILIZER BARS, CATEGORY 1 LINKAGE (09) - CHASSIS/ATTACHMENTS

1

K928548

LINK

LOWER LINK - 30-1/2 inch (775 mm) left-hand

1шт.

2

K928549

LINK

LOWER LINK - 30-1/2 inch (775 mm) right-hand

1шт.

3

K940091

BRACKET

- hitch, left-hand

1шт.

4

K940092

BRACKET

- hitch, right-hand

1шт.

5

K603108

SCREW

BOLT - 1/2 UNC x 1-1/2 inch

6шт.

6

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

7

K942994

CHAIN (AG)

CHAIN - check

1шт.

8

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

3шт.

10

K210316

LINCH PIN

AND RING (Replaces K66408)

4шт.

UK1272

STABILIZER

LINKAGE STABILIZER UNIT, Includes: Ref. 11 - 20 and stabilizer bar assy.

1шт.

K955899

STABILIZER

BAR ASSEMBLY - telescopic, Includes: Ref. 11 & 12

2шт.

11

K914993

END

HOUSING - ball, front

1шт.

12

K955900

TUBE,8.125" L

HOUSING - tube and ball, rear

1шт.

13

K964993

LINK

PIN - lower link

2шт.

14

K607006

NUT

- 5/8 inch UNC

2шт.

15

K19485

WASHER

- lock, 5/8 inch

2шт.

16

K210318

LINCH PIN

AND RING (Replaces K920359)

4шт.

17

K922654

PLATE

BRACKET - left-hand

1шт.

18

K922656

PLATE

BRACKET - right-hand

1шт.

19

K603108

SCREW

BOLT - 1/2 UNC x 1-1/2 inch

6шт.

20

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

K927079

LINK

TOP LINK ASSEMBLY, Includes: Ref. 21 - 24

1шт.

21

K912362

SCREW

AND HOUSING - 7-1/2 inch (191 mm) tractor end

1шт.

22

K927080

TUBE

TURNBUCKLE - 1 inch UNC

1шт.

23

K912365

SCREW

AND HOUSING - 7-1/2 inch (191 mm)

1шт.

24

K607059

NUT

- lock, 1 inch UNC

1шт.

25

K912936

PIN

- link, sensing unit

1шт.

26

K210316

LINCH PIN

AND RING (Replaces K66408)

1шт.

27

K903981

HITCH PIN

PIN - link

1шт.

28

K210318

LINCH PIN

AND RING (Replaces K920359)

1шт.
