Запчасти Case IH 1194 (9-230) - LEVELING LEVER AND LIFT ROD, DUAL CATEGORY LINKAGE, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

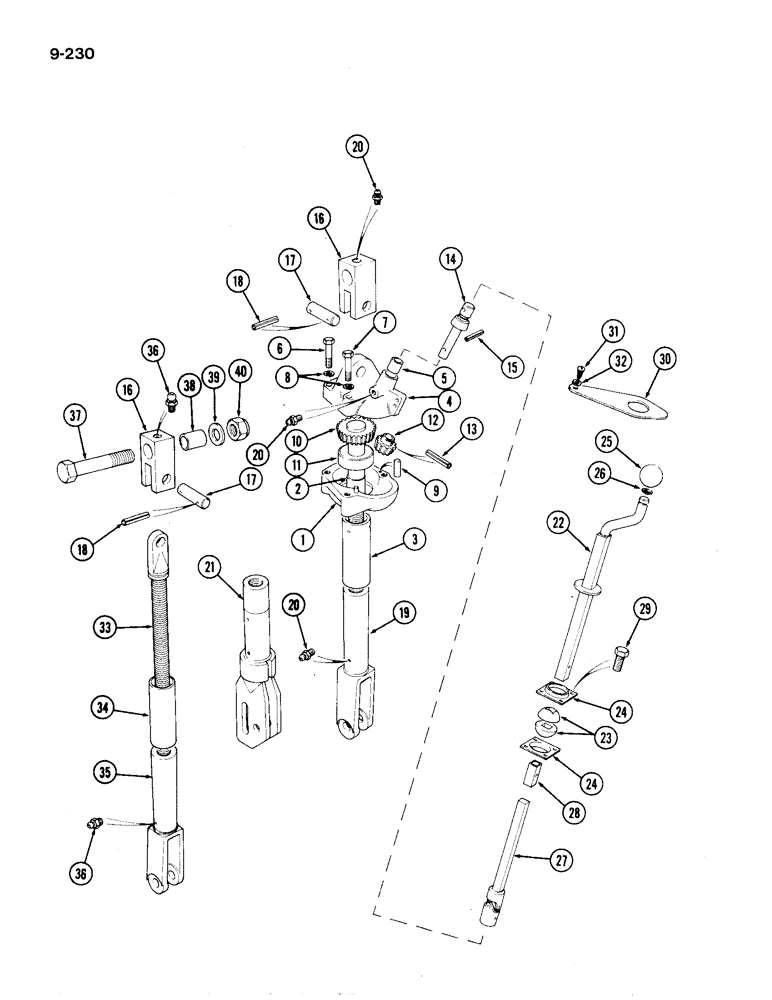

Схема запчастей Case IH 1194 - (9-230) - LEVELING LEVER AND LIFT ROD, DUAL CATEGORY LINKAGE, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
30
29
17
20
40
11
39
36
25
18
27
12
14
6
36
34
7
31
4
10
20
23
28
8
19
24
18
20
37
15
5
33
16
9
35
24
32
13
16
22
38
26
21
3
1
17
2

Артикул

Название

Примечание

Количество

K955542

LEVER

LEVELING LEVER ASSEMBLY - standard nut, Includes: Ref. 1 - 20

1шт.

K204588

LEVER

LEVELING LEVER ASSEMBLY - with slotted nut, Includes: Ref. 1 - 20

1шт.

1

K962977

HOUSING

- gear, with bushing and tube

1шт.

2

K621339

BUSHING

- gear housing

1шт.

3

K922657

TUBE,1.75" DIA x 5.25" L

- 1-3/4 x 5-1/4 inch (44 x 133 mm) gear housing

1шт.

4

K962691

COVER

CAP - with bushings and dowels

1шт.

5

K621340

BUSHING

- cap

2шт.

6

K600405

BOLT

- 3/8 UNC x 1-5/8 inch

2шт.

7

K600407

BOLT

- 3/8 UNC x 1-7/8 inch

2шт.

8

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

9

K32063

PIN

DOWEL - 3/16 x 1/2 inch

2шт.

10

K919770

SHAFT

SCREW - leveling, 1 inch Whitworth x 9-5/16 inch

1шт.

11

K19187

THRUST BEARING

BEAWRNG - thrust

1шт.

12

K919769

GEAR

PINION - bevel

1шт.

13

K623946

PIN

- spring, 5/32 x 15/16 inch

1шт.

14

K954077

SHAFT

SPINDLE

1шт.

15

K691356

PIN

- spring, 5 x 25 mm

1шт.

16

K921914

FORK

END

1шт.

17

K948353

PIVOT PIN

PIN - pivot

1шт.

18

K623740

SPLIT PIN/SAFETY PIN

PIN - spring, 3/16 x 7/8 inch

2шт.

19

K940700

NUT

- adjusting, 1 inch Whitworth standard

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

21

K945967

CLEVIS

NUT - adjusting, 1 inch Whitworth, slotted

2шт.

K303671

SPINDLE

ASSEMBLY - telescopic, Includes: Ref. 22 - 28

1шт.

22

K303672

SPINDLE

AND HANDLE

1шт.

23

K303520

BALL JOINT

BALL - nylon, half

2шт.

24

K303518

CASE

SOCKET

2шт.

25

K919763

BUTTON

KNOB - handle

1шт.

26

K621790

RING, SNAP

RING - retaining, 12 mm, external

1шт.

27

K303648

ARM

SPINDLE AND UNIVERSAL JOINT

1шт.

28

K303531

SLEEVE

BUSHING - plastic

1шт.

29

K653339

SCREW,Hex, M5 x 0.8 x 12mm

- M5 x 12 mm

4шт.

30

K303814

RUBBER

STRAP - retaining

1шт.

31

K652753

SCREW

- self-tapping, M8 x 16 mm

1шт.

32

K303630

BUSHING

WASHER - 8 mm

1шт.

K940505

ROD

LIFT ROD ASSEMBLY - standard nut, Includes: Ref. 33 - 36

1шт.

K204586

ROD

LIFT ROD ASSEMBLY - with slotted nut, Includes: Ref. 33 - 36

1шт.

33

K962978

SET SCREW

SCREW - adjusting, 1 inch Whitworth x 10-7/8 inch

1шт.

34

K940510

TUBE,1.75" ID x 6.187" L

- 1-3/4 x 6-1/4 inch (44 x 158 mm)

1шт.

35

K940700

NUT

- adjusting, standard

1шт.

36

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

37

K601413

BOLT

- 3/4 UNC x 3-3/4 inch

2шт.

38

K901963

BUSHING

2шт.

39

K19476

WASHER

- 3/4 inch (19 mm)

2шт.

40

K607446

NUT

- self-locking, 3/4 inch UNC

2шт.

Выбрано товаров: 45
