Запчасти Case IH 1194 (9-228) - LEVELING LEVER AND LIFT ROD, DUAL CATEGORY LINKAGE, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

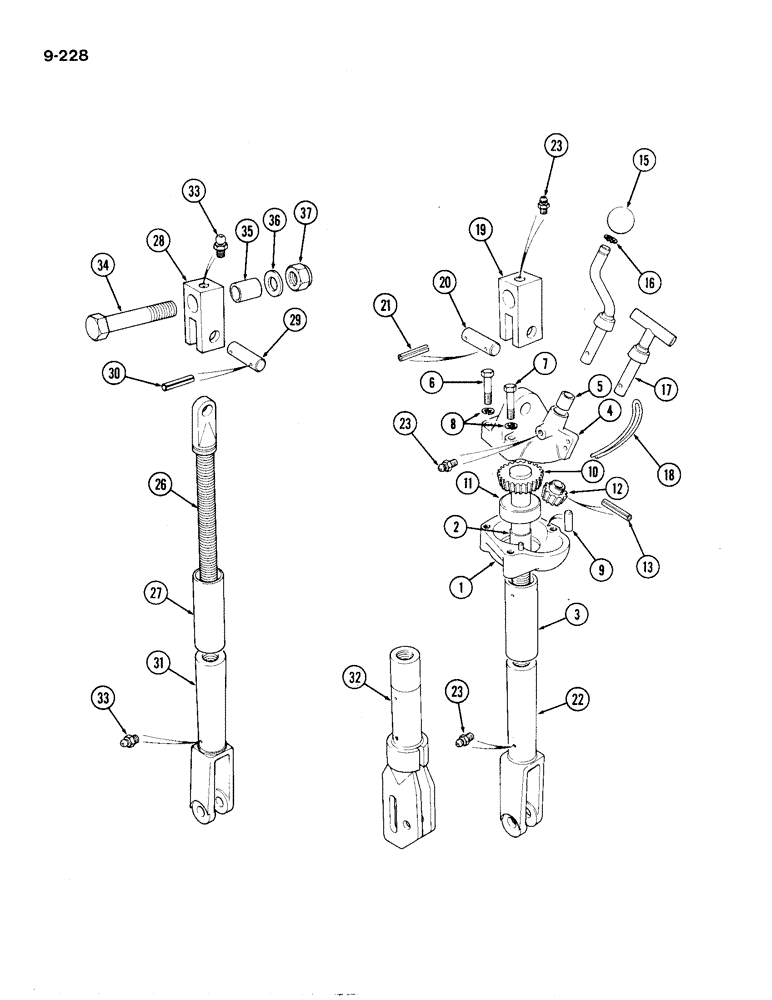

Схема запчастей Case IH 1194 - (9-228) - LEVELING LEVER AND LIFT ROD, DUAL CATEGORY LINKAGE, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
9
31
22
8
3
10
26
29
30
23
11
16
7
19
33
17
27
5
6
18
15
4
1
37
23
32
36
20
2
28
35
13
33
12
34
23
21

Артикул

Название

Примечание

Количество

K940508

LEVER

LEVELING LEVER ASSEMBLY - standard, Includes: Ref. 1 - 23

1шт.

K204587

LEVER

LEVELING LEVER ASSEMBLY - with slotted nut, Includes: Ref. 1 - 23

1шт.

K210156

LEVER

LEVELING LEVER ASSEMBLY - (North America only), Includes: Ref. 1 - 23

1шт.

1

K962977

HOUSING

- gear, with bushing and tube

1шт.

2

K621339

BUSHING

- gear housing

1шт.

3

K922657

TUBE,1.75" DIA x 5.25" L

- 1-3/4 x 5-1/4 inch (44 x 133 mm) gear housing

1шт.

4

K962691

COVER

CAP - with bushings and dowels

1шт.

5

K621340

BUSHING

- cap

2шт.

6

K600405

BOLT

- 3/8 UNC x 1-5/8 inch

2шт.

7

K600407

BOLT

- 3/8 UNC x 1-7/8 inch

2шт.

8

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

9

K32063

PIN

DOWEL - 3/16 x 1/2 inch

2шт.

10

K919770

SHAFT

SCREW - leveling, 1 inch Whitworth x 9-5/16 inch

1шт.

11

K19187

THRUST BEARING

BEARING - thrust

1шт.

12

K919769

GEAR

PINION - bevel

1шт.

13

K623946

PIN

- spring, 5/32 x 15/16 inch

1шт.

14

K919761

LEVER

- hand with knob (Not North America)

1шт.

15

K919763

BUTTON

KNOB

1шт.

16

K621790

RING, SNAP

RING - retaining, 1/2 inch (13 mm) external

1шт.

17

K210133

LEVER

- hand (North America only)

1шт.

18

K924723

SPRING

LATCH - spring

1шт.

19

K921914

FORK

END

1шт.

20

K948353

PIVOT PIN

PIN - pivot

1шт.

21

K623740

SPLIT PIN/SAFETY PIN

PIN - spring, 3/16 x 7/8 inch

2шт.

22

K940700

NUT

- adjusting, standard

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

K940505

ROD

LIFT ROD ASSEMBLY - standard, Includes: Ref. 26 - 33

1шт.

K204586

ROD

LIFT ROD ASSEMBLY - with slotted nut, Includes: Ref. 26 - 33

1шт.

26

K962978

SET SCREW

SCREW - adjusting, 1 inch Whitworth x 10-7/8 inch

1шт.

27

K940510

TUBE,1.75" ID x 6.187" L

- 1-3/4 x 6-1/4 inch (44 x 158 mm)

1шт.

28

K921914

FORK

END

1шт.

29

K948353

PIVOT PIN

PIN - pivot

1шт.

30

K623740

SPLIT PIN/SAFETY PIN

PIN - spring, 3/16 x 7/8 inch

2шт.

31

K940700

NUT

- adjusting, standard

1шт.

32

K945967

CLEVIS

NUT - adjusting, slotted nut

1шт.

33

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

34

K601413

BOLT

- 3/4 UNC x 3-3/4 inch

2шт.

35

K901963

BUSHING

2шт.

36

K19476

WASHER

- 3/4 inch (19 mm)

2шт.

37

K607446

NUT

- self-locking, 3/4 inch UNC

2шт.

Выбрано товаров: 40
