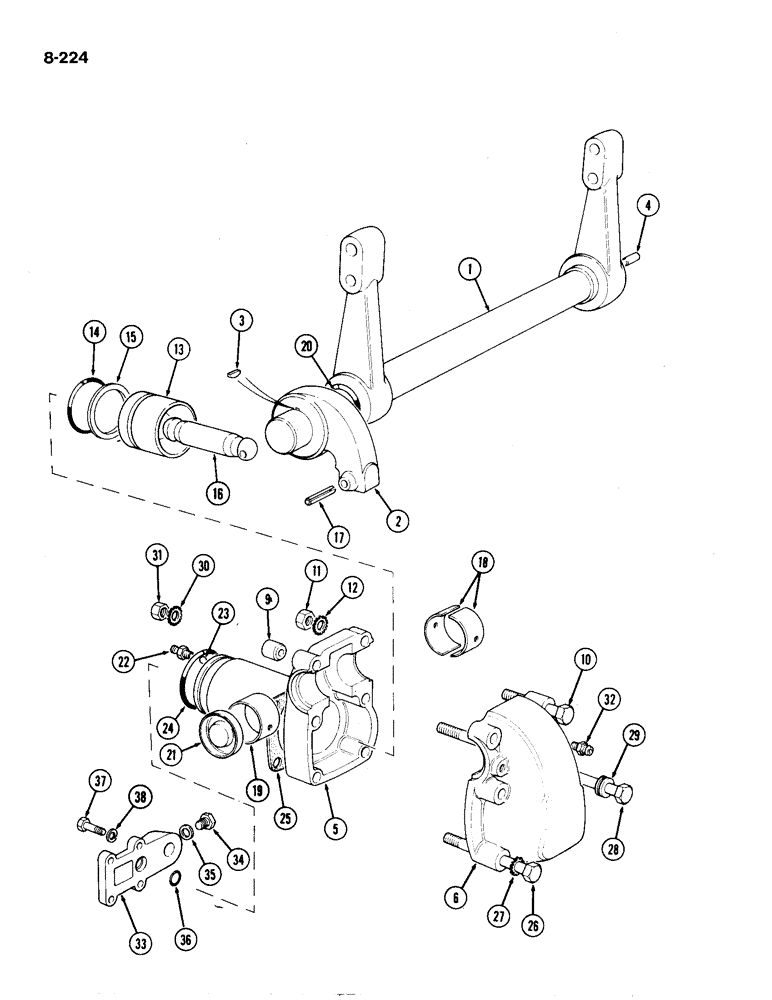

Запчасти Case IH 1194 (8-224) - RAMSHAFT AND RAM CYLINDER (08) - HYDRAULICS

1

K921719

SHAFT

RAMSHAFT AND LEVERS - linkage (Standard), Includes: Ref. 2 - 4

1шт.

1

K205053

SHAFT

RAMSHAFT AND LEVERS - linkage (Heavy Duty), Includes: Ref. 2 - 4

1шт.

2

K906796

ARM

LEVER - ram, linkage

1шт.

3

K622381

KEY

- special

2шт.

4

K621807

PIN

DOWEL - 5/16 x 1/2 inch

1шт.

5

K207251

HOUSING

CYLINDER BODY AND COVER ASSEMBLY, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY, Includes: Ref. 9 - 12

1шт.

9

K924685

RUBBER

RESTRICTOR - cylinder body

1шт.

10

K600816

BOLT

- 1/2 UNC x 3-1/2 inch

2шт.

11

K607004

NUT

- 1/2 inch UNC

2шт.

12

K11518

WASHER

- lock, 1/2 inch

2шт.

13

K907502

PISTON

- standard

1шт.

13

K946371

PISTON

- 0.020 inch (0.51 mm) oversize

1шт.

14

K623542

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

- 2-3/4 inch (70 mm) internal diameter

1шт.

15

K628050

RING,69.6mm ID x 79.65mm OD x 2.64mm Thk

- backup

1шт.

16

K910106

ROD

- connecting

1шт.

17

K623920

SPLIT PIN/SAFETY PIN

PIN - spring, 1/4 x 1-7/8 inch

1шт.

18

K912013

BEARING HALF,50.22mm ID x 54.52mm OD x 30.63mm W

BEARING - half

2шт.

19

K912012

BUSHING

- bearing

1шт.

20

K623538

O-RING,6.99mm Thk x 50.16mm ID, 60 Duro

- 2 inch (51 mm) internal diameter

1шт.

21

K30061

COVER

DISC - sealing

1шт.

22

K910104

SCREW

- bleed

1шт.

23

K11286

BALL

- steel, 5/16 inch (8 mm)

1шт.

24

K623566

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

- 3-7/8 inch (98 mm) internal diameter

1шт.

25

K926385

GASKET

- cylinder to rear axle housing

1шт.

26

K600822

BOLT

- 1/2 UNC x 5 inch

2шт.

27

K11518

WASHER

- lock, 1/2 inch

2шт.

28

K601274

BOLT

- 5/8 UNC x 12-1/2 inch

2шт.

29

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - 5/8 inch (16 mm)

2шт.

30

K11516

WASHER

- lock, 5/8 inch

2шт.

31

K607006

NUT

- 5/8 inch UNC

2шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

33

K910107

HYD CONNECTOR

CONNECTOR - tube to ram cylinder

1шт.

34

K619543

PLUG

- 1/2 inch UNF

1шт.

35

K15735

WASHER

- sealing, 1/2 inch (13 mm)

1шт.

36

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4 inch (19 mm) internal diameter

1шт.

37

K600404

BOLT

- 3/8 UNC x 1-1/2 inch

4шт.

38

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.
