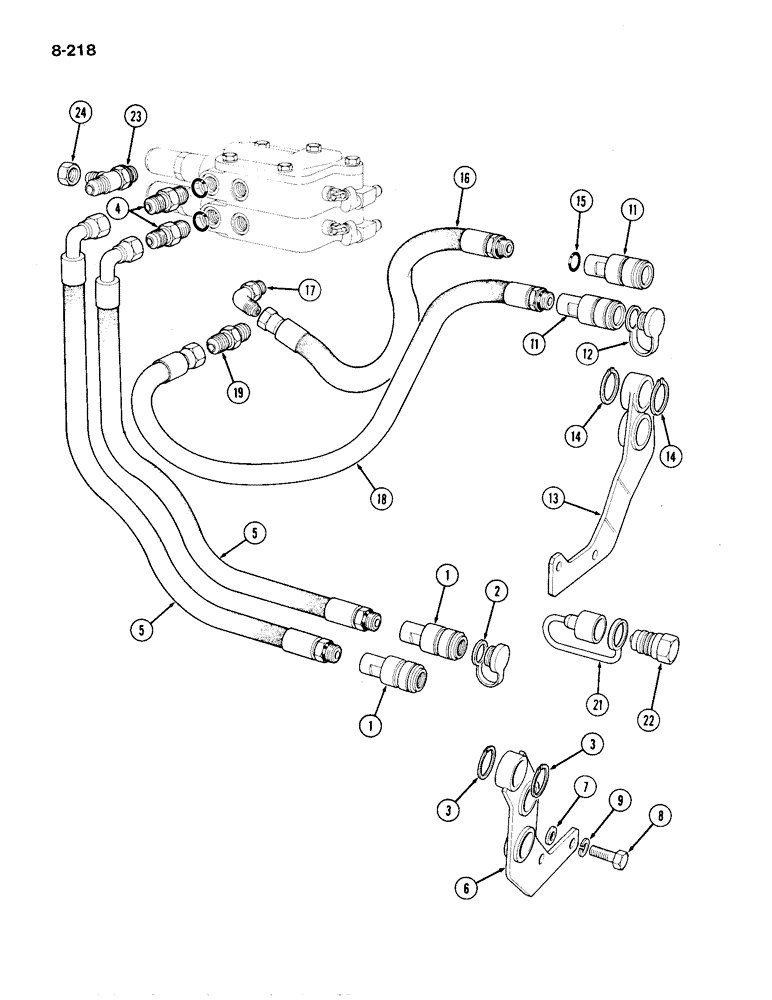

Запчасти Case IH 1194 (8-218) - REMOTE VALVE COUPLINGS AND TUBES, TRACTORS WITH CAB (08) - HYDRAULICS

REF

INSTRUCTION

TUBES AND COUPLING UNIT, first valve part of UK6634, Includes: Ref. 1 - 9

1шт.

1

K201770

COUPLING, BREAK AWAY

COUPLING - quick release, tractor half

2шт.

2

K950297

PLUG

- dust, tractor coupling

2шт.

3

K621510

SNAP RING,#150, Ext

Ring, Snap, (38 mm) #150, Ext

4шт.

4

K626039

FITTING

UNION - 3/4 inch UNF

2шт.

5

K207572

HOSE

TUBE - flexible, 3/4-7/8 UNF x 24 inch

2шт.

6

K202578

BRACKET

- mounting, left-hand

1шт.

7

K19474

HARDWARE

WASHER - 1/2 inch (13 mm)

2шт.

8

K603108

SCREW

BOLT - 1/2 UNC x 1-1/2 inch

2шт.

9

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

REF

INSTRUCTION

TUBE AND COUPLING UNIT - second valve, part of UK6636, Includes: Ref. 11 - 19

1шт.

11

K201770

COUPLING, BREAK AWAY

COUPLING - quick release, tractor half

2шт.

12

K950297

PLUG

- dust, tractor coupling

2шт.

13

K207710

BRACKET

- mounting, right-hand

1шт.

14

K621510

SNAP RING,#150, Ext

Ring, Snap, (38 mm) #150, Ext

4шт.

15

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 inch (19 mm) internal diameter

3шт.

16

K202605

HOSE

TUBE - flexible, 3/4-7/8 UNF x 15 inch

1шт.

17

K622114

FITTING

ELBOW - 3/4 inch UNF

1шт.

18

K207572

HOSE

TUBE - flexible, 3/4-7/8 UNF x 24 inch

1шт.

19

K626039

FITTING

UNION - 3/4 inch UNF

2шт.

21

K200646

COUPLING, BREAK AWAY

COUPLING - quick release, implement half, Includes: Ref. 22

1шт.

22

K200645

CAP

COVER - dust, implement coupling

1шт.

UK5811

FITTING

ATTACHMENT - forward tube connection (Order K622180 and K626102), Includes: Ref. 23 & 24

1шт.

23

K622180

FITTING

TEE FITTING - 3/4 inch UNF

2шт.

24

K626102

CAP

- 3/4 inch UNF

2шт.
