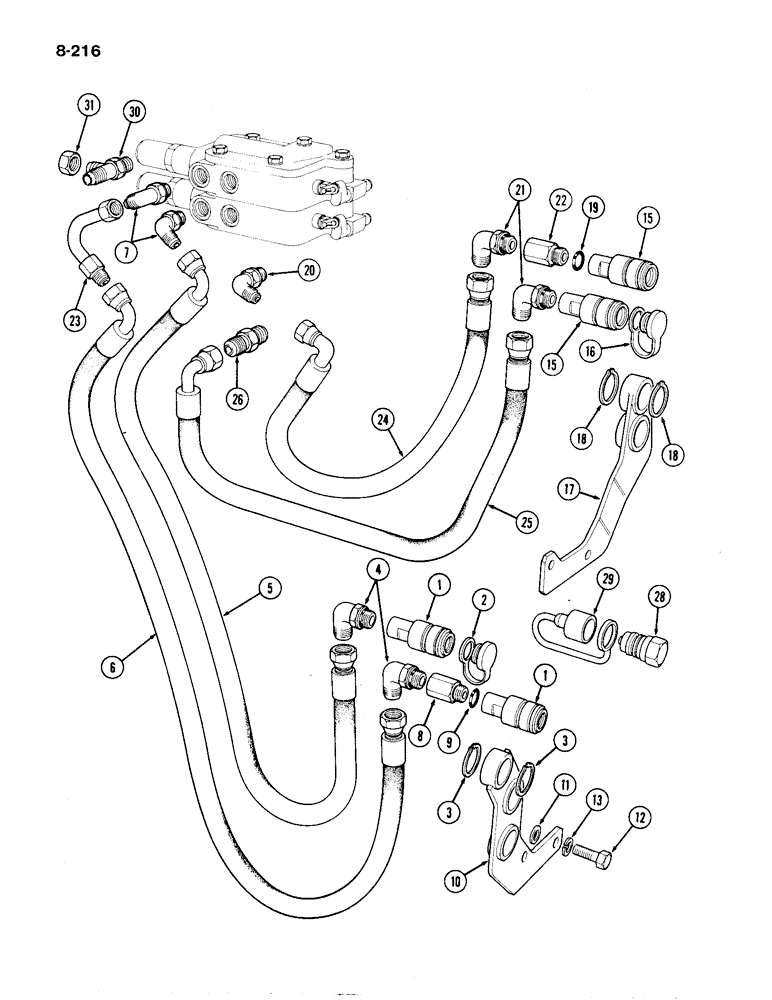

Запчасти Case IH 1194 (8-216) - REMOTE VALVE COUPLINGS AND TUBES, TRACTORS WITHOUT CAB (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
TUBES AND COUPLINGS - first valve, part of UK6633 and UK6691, Includes: Ref. 1 - 13
1шт.
1
K201770
COUPLING, BREAK AWAY
COUPLING - quick release, tractor half
2шт.
2
K950297
PLUG
- dust, tractor coupling
2шт.
3
K621510
SNAP RING,#150, Ext
Ring, Snap, (38 mm) #150, Ext
4шт.
4
K622113
FITTING
ELBOW - 7/8 inch UNF, 90 degree
2шт.
5
K202622
HOSE
TUBE - flexible, 3/4 - 7/8 UNF x 24 inch
1шт.
6
K201876
HOSE
TUBE - flexible, 3/4 - 7/8 UNF x 28 inch
1шт.
7
K622114
FITTING
ELBOW - 3/4 inch UNF, 90 degree
2шт.
8
K626081
FITTING
EXTENSION - elbow, 7/8 inch UNF
1шт.
9
K623592
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 3/4 inch (19 mm) ID
2шт.
10
K202578
BRACKET
- mounting, left-hand
1шт.
11
K19474
HARDWARE
WASHER - 1/2 inch (13 mm)
2шт.
12
K603108
SCREW
BOLT - 1/2 UNC x 1-1/2 inch
2шт.
13
K19484
LOCK WASHER
WASHER - lock, 1/2 inch
2шт.
REF
INSTRUCTION
TUBES AND COUPLINGS - second valve, part of UK6635, UK6692 and UK6781, Includes: Ref. 15 - 26
1шт.
15
K201770
COUPLING, BREAK AWAY
COUPLING - quick release, tractor half
2шт.
16
K950297
PLUG
- dust, tractor coupling
2шт.
17
K202430
BRACKET
- mounting, right-hand
1шт.
18
K621510
SNAP RING,#150, Ext
Ring, Snap, (38 mm) #150, Ext
4шт.
19
K623592
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 3/4 inch (19 mm) ID
2шт.
20
K622114
FITTING
ELBOW - 3/4 inch UNF, 90 degree
1шт.
21
K622113
FITTING
ELBOW - 7/8 inch UNF, 90 degree
2шт.
22
K626081
FITTING
EXTENSION - elbow, 7/8 inch UNF
1шт.
23
K201766
PIPE
TUBE - valve
1шт.
24
K201876
HOSE
TUBE - flexible, 3/4-7/8 UNF x 28 inch
1шт.
25
K202622
HOSE
TUBE - flexible, 3/4-7/8 UNF x 24 inch
1шт.
26
K626039
FITTING
UNION - 3/4 inch UNF
1шт.
28
K200646
COUPLING, BREAK AWAY
COUPLING ASSEMBLY - quick release, implement half, Includes: Ref. 29 - 31
1шт.
29
K200645
CAP
COVER - dust, implement coupling
1шт.
UK5811
FITTING
ATTACHMENT - forward tube connection (Order K622180 and K626102), Includes: Ref. 30 & 31
1шт.
30
K622180
FITTING
TEE FITTING - 3/4 inch UNF
2шт.
31
K626102
CAP
- 3/4 inch UNF
2шт.
Выбрано товаров: 32
