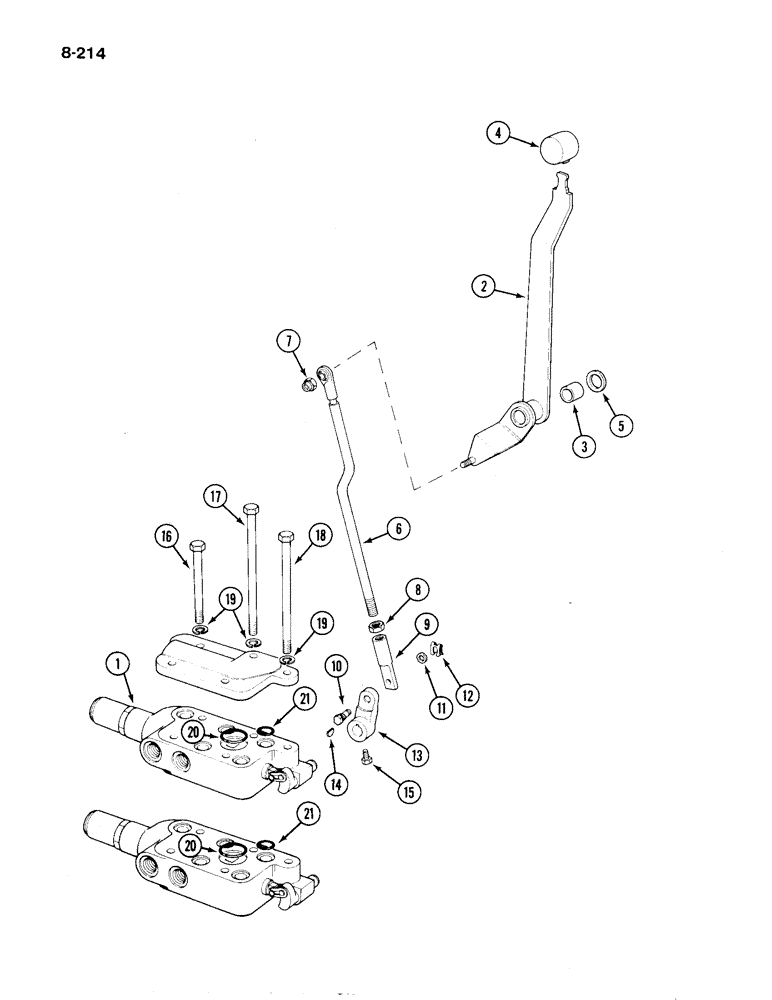

Запчасти Case IH 1194 (8-214) - SECOND REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS

1

UK5024

VALVE

ATTACHMENT - detented, See Figure 8-220

1шт.

1

UK5025

VALVE

ATTACHMENT - spring centered, See Figure 8-220

1шт.

UK6636

KIT

CONTROLS, FITTINGS AND HOSE ATTACHMENT, Includes: Ref. 2 - 21

1шт.

2

K306128

LEVER

ASSEMBLY - control

1шт.

3

K655430

BUSHING

- control lever

2шт.

4

K306268

KNOB

- lever

1шт.

5

K655810

BUSHING

SPACER - lever

1шт.

6

K307214

ROD

- second valve

1шт.

7

K617300

NUT

- 3/8 inch UNC

1шт.

8

280136

NUT,3/8"-16, G8

1шт.

9

K204970

ROD

END - rod, second valve

1шт.

10

K306319

PIN

-, Serial Range: rod-lever

1шт.

11

K651777

WASHER

- 6 mm

2шт.

12

K625039

CLIP

- retaining

1шт.

13

K307199

LEVER

- second valve

1шт.

14

K19602

KEY

- Woodruff No. 404

1шт.

15

K616302

SET SCREW

BOLT - 5/16 UNF x 3/8 inch

1шт.

16

K600516

BOLT

- 3/8 UNC x 4-3/4 inch (replaces K616516)

2шт.

17

K600514

BOLT

- 3/8 UNC x 6-1/4 inch

1шт.

18

K600513

BOLT

- 3/8 UNC x 6 inch

2шт.

19

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

5шт.

20

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

21

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch (18 mm) ID

5шт.

REF

INSTRUCTION

TUBES AND COUPLINGS, See Figure 8-218

31шт.
