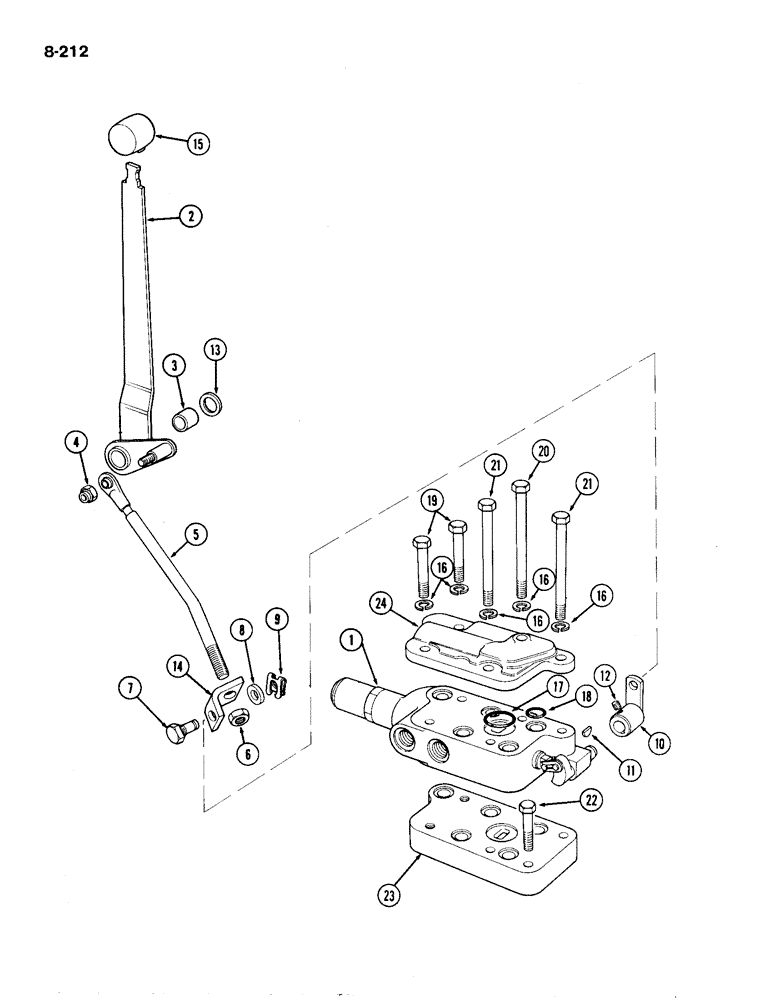

Запчасти Case IH 1194 (8-212) - FIRST REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS

1

UK5024

VALVE

UNIT - detented, See Figure 8-220

1шт.

1

UK5025

VALVE

UNIT - spring centered, See Figure 8-220

1шт.

UK5423

VALVE

UNIT - detented with float, See Figure 8-220

1шт.

UK6634

KIT

FITTINGS, CONTROLS AND COUPLING UNIT - first valve, Includes: Ref. 2 - 24

1шт.

2

K306122

LEVER

ASSEMBLY - first valve

1шт.

3

K655430

BUSHING

- control lever

2шт.

4

K617300

NUT

- self locking, 1/4 inch UNF

1шт.

5

K307212

ROD

- first valve

1шт.

6

280136

NUT,3/8"-16, G8

2шт.

7

K306319

PIN

-, Serial Range: rod-lever

1шт.

8

K651777

WASHER

- 6 mm

2шт.

9

K625039

CLIP

- retaining

1шт.

10

K306327

LEVER

- first valve

1шт.

11

K19602

KEY

- Woodruff No. 404

1шт.

12

K616302

SET SCREW

BOLT - 5/16 UNF x 3/8 inch

1шт.

13

K655810

BUSHING

SPACER - lever

1шт.

14

K307170

BRACKET

END - rod, first valve

1шт.

15

K306268

KNOB

- lever, Includes: Ref. 16 - 22

1шт.

16

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

6шт.

17

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) internal diameter

1шт.

18

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch (18 mm) internal diameter

5шт.

19

K600515

BOLT

- 3/8 UNC x 2-3/4 inch

2шт.

20

K600512

BOLT

- 3/8 UNC x 4-1/2 inch

1шт.

21

K600511

BOLT

- 3/8 UNC x 4-1/4 inch

2шт.

22

K600510

BOLT

- 3/8 UNC x 2 inch

1шт.

23

K203509

BASE

PLATE - base

1шт.

24

K919242

COVER

PLATE - cover

1шт.

REF

INSTRUCTION

TUBES AND COUPLINGS, See Figure 8-218

1шт.
