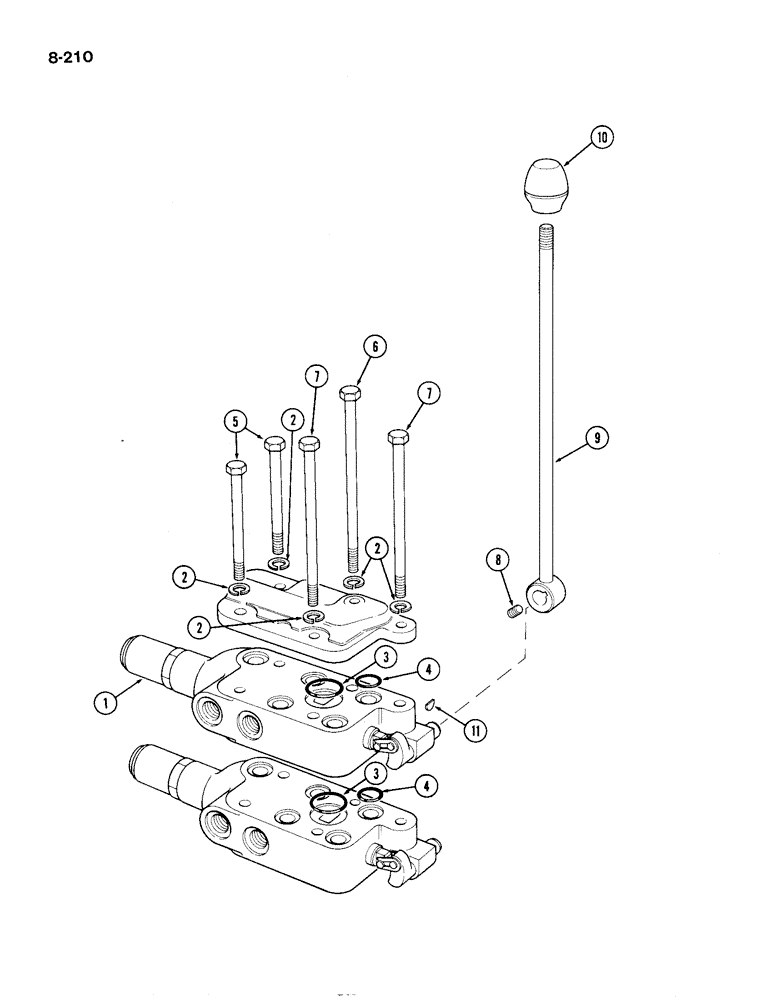

Запчасти Case IH 1194 (8-210) - SECOND REMOTE VALVE, TRACTORS WITHOUT CAB, P.I.N. 11039983 AND AFTER (08) - HYDRAULICS

1

UK5024

VALVE

ASSEMBLY - detented, See Figure 8-220

1шт.

1

UK5025

VALVE

ASSEMBLY - spring centered, See Figure 8-220

1шт.

UK6692

CONTROL

FITTINGS, CONTROLS AND COUPLING UNIT - first valve, Includes: Ref. 2 - 10

1шт.

2

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

6шт.

3

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) internal diameter

3шт.

4

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch (18 mm) internal diameter

5шт.

5

K600513

BOLT

- 3/8 UNC x 6 inch

2шт.

6

K600514

BOLT

- 3/8 UNC x 6-1/4 inch

1шт.

7

K600516

BOLT

- 3/8 UNC x 4-3/4 inch

2шт.

8

K616302

SET SCREW

BOLT - 5/16 UNF x 3/8 inch

1шт.

9

K207762

HANDLE

LEVER - hand, second valve

1шт.

10

K950493

KNOB

- lever

1шт.

11

K19602

KEY

- Woodruff No. 404

1шт.

REF

INSTRUCTION

TUBES AND COUPLINGS, See Figure 8-216

1шт.

UK6781

KIT

VALVE ATTACHMENT - second remote detented in-built pump (North America only) consists of valve assembly controls, fittings, hose attachment, does not include UK5811 forward tube connection on Figure 8-216

1шт.
