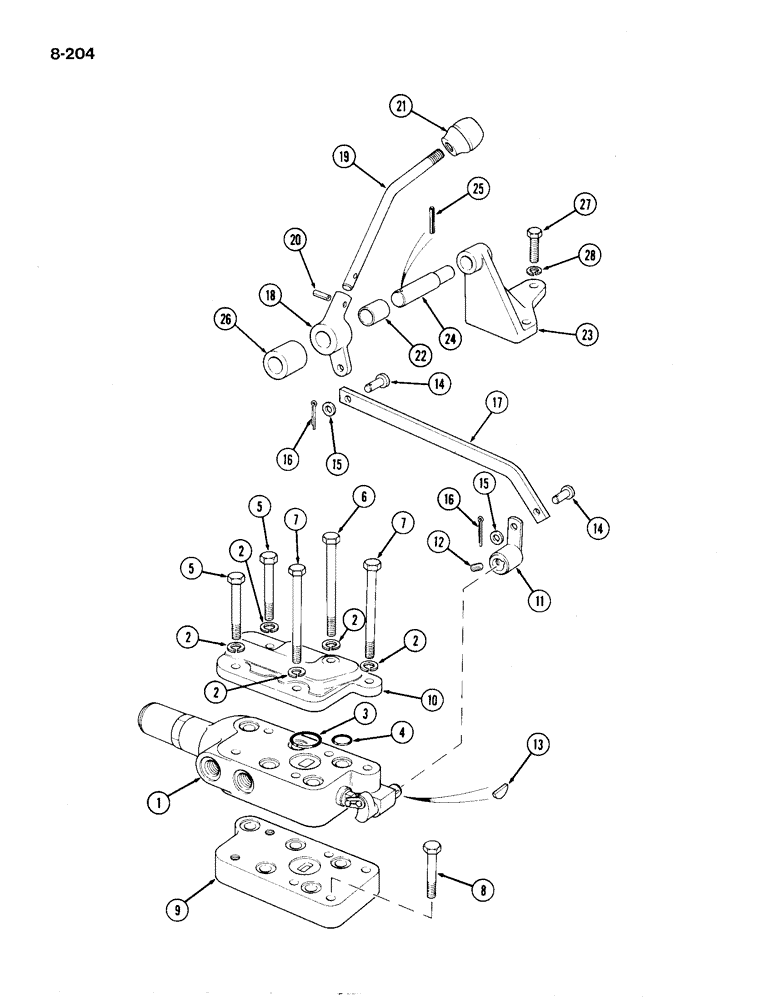

Запчасти Case IH 1194 (8-204) - FIRST REMOTE VALVE, TRACTORS WITHOUT CAB, PRIOR TO P.I.N. 11039983 (08) - HYDRAULICS

1

UK5024

VALVE

ASSEMBLY - detented, See Figure 8-220

1шт.

1

UK5025

VALVE

ASSEMBLY - spring centred, See Figure 8-220

1шт.

1

UK5423

VALVE

ASSEMBLY - detented with float, See Figure 8-220

1шт.

UK6633

KIT

FITTINGS, CONTROLS AND COUPLING UNIT - first valve, Includes: Ref. 2 - 28

1шт.

2

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

6шт.

3

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) internal diameter

2шт.

4

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch (18 mm) internal diameter

5шт.

5

K600515

BOLT

- 3/8 UNC x 2-3/4 inch

2шт.

6

K600512

BOLT

- 3/8 UNC x 4-1/2 inch

1шт.

7

K600511

BOLT

- 3/4 UNC x 4-1/4 inch

2шт.

8

K600510

BOLT

- 3/8 UNC x 2 inch

1шт.

9

K203509

BASE

PLATE - base

1шт.

10

K919242

COVER

PLATE - cover

1шт.

11

K203190

LEVER

1шт.

12

K616302

SET SCREW

SCREW - 5/16 UNF x 3/8 inch

1шт.

13

K19602

KEY

- Woodruff No. 404

1шт.

14

K625965

PIN

- clevis, 1/4 x 1-3/16 inch

2шт.

15

K19470

WASHER

- 1/4 inch (6 mm)

2шт.

16

K19524

PIN

- cotter, 1/16 x 1 inch

2шт.

17

K203480

LINK

1шт.

18

K205228

COLLAR

BOSS - pivot

1шт.

19

K205230

LEVER

- hand

1шт.

20

K623933

SPRING

PIN - roll, 1/8 x 5/8 inch

1шт.

21

K950493

KNOB

1шт.

22

K621377

BUSHING

1шт.

23

K203476

SUPPORT

BRACKET - support

1шт.

24

K203195

PIN

- pivot

1шт.

25

K690976

PIN

- spring, 1/8 x 1 inch

1шт.

26

K627105

BUSHING

SPACER - pivot boss

1шт.

27

K602806

BOLT

- 5/16 UNC x 1-1/8 inch

3шт.

28

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

REF

INSTRUCTION

TUBES AND COUPLINGS, See Figure 8-216

1шт.
