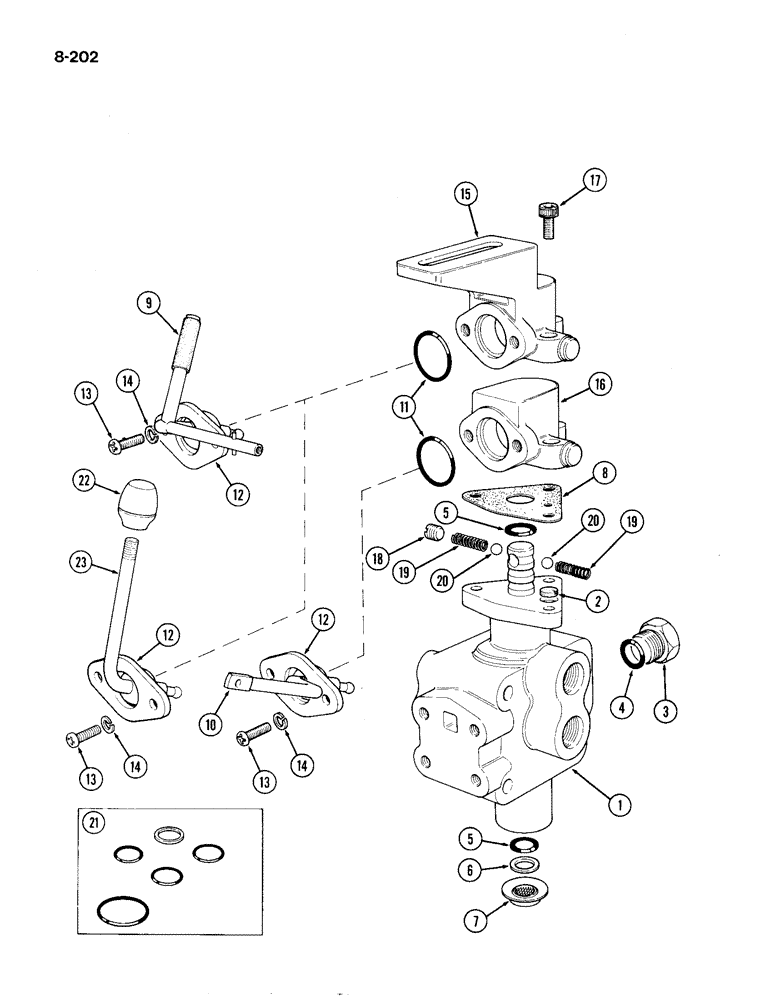

Запчасти Case IH 1194 (8-202) - THREE-WAY VALVE ASSEMBLY, (NOT NORTH AMERICA) (08) - HYDRAULICS

K262225

VALVE

ASSEMBLY - three-way (Replaces K204756, K205935 and K948000), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL

1шт.

2

K915393

FOAM

BREATHER - valve

1шт.

3

K948415

PLUG

- 3/4 inch UNF (Replaces K920826)

1шт.

4

K623589

O-RING

- 5/8 inch (16 mm) internal diameter

1шт.

5

K625408

O-RING

- 7/16 inch (11 mm) internal diameter

2шт.

6

K628059

RING,Split, 11.11mm ID x 15.88mm OD x 1.47mm Thk

- back-up

1шт.

7

K919826

BREATHER

CAP - end

1шт.

8

K944527

GASKET,0.15mm Thk

- cover

1шт.

9

K204724

LEVER

- control (without cab) (Prior to P.I.N. 11039983)

1шт.

10

K205934

LEVER

- control (with cab)

1шт.

11

K16351

O-RING,3.53mm Thk x 24.99mm ID

- 1 inch (25 mm) internal diameter

1шт.

12

K919613

SHIM

PLATE - lever retaining

1шт.

13

K614924

SCREW

- No. 10 UNF x 1/2 inch

2шт.

14

K19488

SPRING WASHER

- lock, 3/16 inch

2шт.

15

K919611

COVER

- valve (without cab)

1шт.

16

K967259

GASKET

COVER - valve (with cab)

1шт.

17

K606501

SCREW

- 1/4 UNC x 5/8 inch

3шт.

18

K606020

SCREW

- 5/16 UNC x 1/4 inch

1шт.

19

K625208

SPRING

- detent

2шт.

20

K17063

BALL

- 1/4 inch (6 mm)

2шт.

21

K965998

SEAL

KIT - valve

1шт.

22

K950493

KNOB

- control lever (without cab) (P.I.N. 11039983 and after)

1шт.

23

K919612

LEVER

- control (without cab) (P.I.N. 11039983 and after)

1шт.
