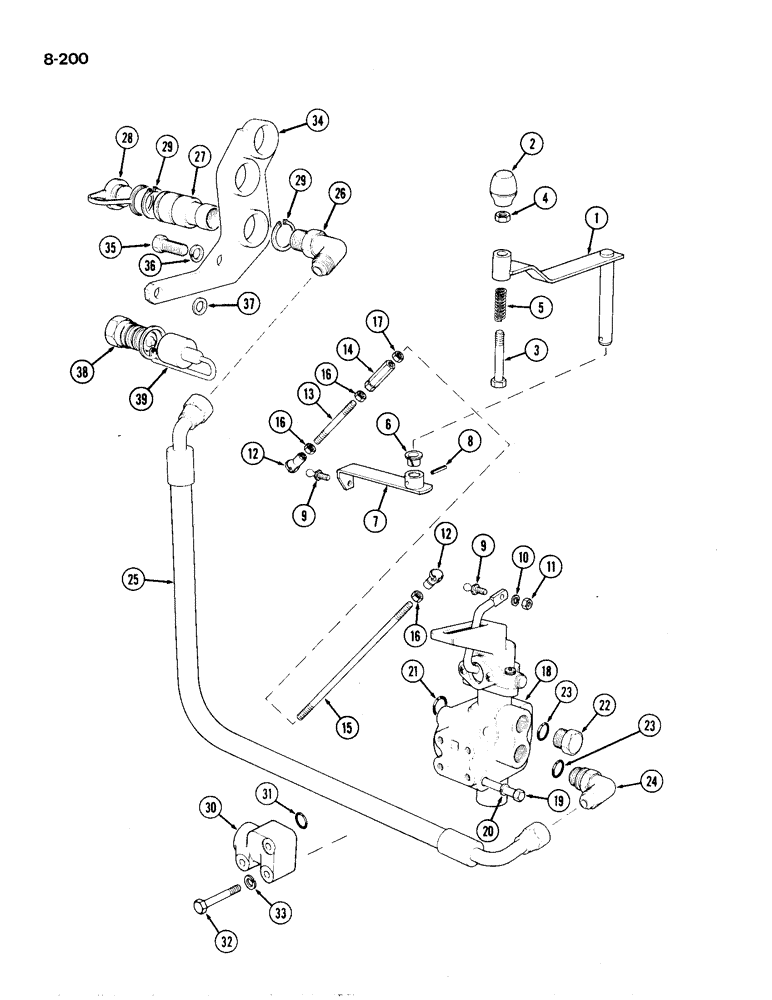

Запчасти Case IH 1194 (8-200) - THREE-WAY VALVE ATTACHMENT, TRACTORS WITH CAB, (NOT NORTH AMERICA) (08) - HYDRAULICS

UK5664

VALVE

CONTROLS UNIT - three-way valve, Includes: Ref. 1 - 14

1шт.

1

K307204

LEVER

- hand

1шт.

2

K950493

KNOB

- hand lever

1шт.

3

K600477

BOLT

- 3/8 UNC x 2-1/2 inch

1шт.

4

280136

NUT,3/8"-16, G8

1шт.

5

K625059

SPRING

1шт.

6

K621310

BUSHING

- cab floor

2шт.

7

K306494

LEVER

1шт.

8

K690976

PIN

- groove

1шт.

9

K621904

BALL JOINT

BALL END - 1/4 inch UNF

2шт.

10

K626552

WASHER

- lock, 1/4 inch

2шт.

11

K617030

NUT

- 1/4 inch UNF

2шт.

12

K621903

BALL JOINT

SOCKET END

2шт.

13

K205698

ROD

- 1/4 UNF x 3-1/2 inch

1шт.

14

K949065

SLEEVE

- adjusting, 1/4 inch UNF

1шт.

15

K207242

ROD

- 1/4 UNF x 4-5/8 inch (118 mm), Includes: Ref. 16 & 17

1шт.

16

K617030

NUT

- 1/4 inch UNF

3шт.

17

K617593

NUT

- 1/4 inch UNF, left-hand

1шт.

UK5660

VALVE

THREE-WAY VALVE ATTACHMENT, Includes: Ref. 18 - 33

1шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY, See Figue 8-202

1шт.

19

K600416

BOLT

- 3/8 UNC x 3 inch

4шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

21

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 inch (19 mm) ID

1шт.

22

K920826

O-RING

PLUG - 3/4 inch UNF

1шт.

23

K623589

O-RING

- 5/8 inch (16 mm) ID

2шт.

24

K622114

FITTING

ELBOW - 3/4 inch UNF x 90 degrees

1шт.

25

K202579

HOSE

TUBE - flexible, 3/4-7/8 UNF x 25-1/4 inch (640 mm)

1шт.

26

K622113

FITTING

ELBOW - 7/8 inch UNF x 90 degrees

1шт.

27

K201770

COUPLING, BREAK AWAY

COUPLING - tractor half

1шт.

28

K950297

PLUG

- dust

1шт.

29

K621510

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

30

K919614

ADAPTER

-, Serial Range: tube-valve

1шт.

31

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- adapter to valve

1шт.

32

K600209

BOLT

- 5/16 UNC x 2 inch

3шт.

33

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

UK4345

BREAKER POINTS

MOUNTING BRACKET ASSEMBLY, Includes: Ref. 34 - 37

1шт.

34

K202578

BRACKET

- coupling support

2шт.

35

K603108

SCREW

BOLT - 1/2 UNC x 1-1/2 inch

2шт.

36

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

37

K19474

HARDWARE

WASHER - 1/2 inch (13 mm)

2шт.

38

K200646

COUPLING, BREAK AWAY

COUPLING - implement half

1шт.

39

K200645

CAP

PLUG - dust, implement coupling

1шт.
