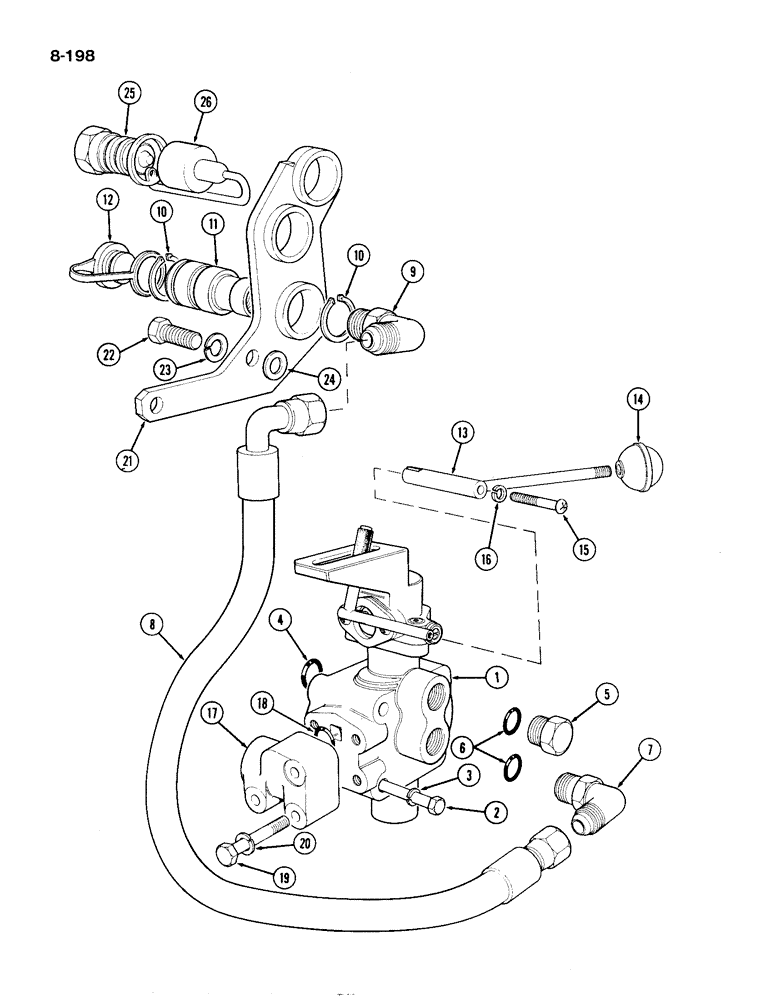

Запчасти Case IH 1194 (8-198) - THREE-WAY VALVE ATTACHMENT, TRACTORS WITHOUT CAB, (NOT NORTH AMERICA) (08) - HYDRAULICS

UK5100

VALVE

THREE-WAY VALVE ATTACHMENT - (Prior to P.I.N. 11039983), Includes: Ref. 1 - 20

1шт.

UK5981

THREE-WAY VALVE ATTACHMENT - (P.I.N. 11039983 and after), Includes: Ref. 1 - 20

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - three-way, See Figure 8-202

1шт.

2

K600416

BOLT

- 3/8 UNC x 3 inch

1шт.

3

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

4

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 inch (19 mm) ID

1шт.

5

K920826

O-RING

PLUG - 3/4 inch UNF

1шт.

6

K623589

O-RING

- 5/8 inch (16 mm) ID

1шт.

7

K622114

FITTING

ELBOW - 3/4 inch UNF x 90 degrees

1шт.

8

K202579

HOSE

TUBE - flexible

1шт.

9

K622113

FITTING

ELBOW - 7/8 inch UNF x 90 degrees

1шт.

10

K621510

SNAP RING,#150, Ext

Ring, Snap, (38 mm) #150, Ext

2шт.

11

K201770

COUPLING, BREAK AWAY

COUPLING - quick release, tractor half

1шт.

12

K950297

PLUG

COVER - dust, tractor coupling

1шт.

13

K204726

LEVER

HANDLE - valve (Prior to P.I.N. 11039983)

1шт.

14

K929750

KNOB

- 1/4 UNC x 1-3/4 inch

1шт.

15

K600154

BOLT

- 1/4 UNC x 1-3/4 inch

1шт.

16

K19480

SPRING WASHER

- lock, 1/4 inch

1шт.

17

K919614

ADAPTER

-, Serial Range: tube-valve

1шт.

18

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch (18 mm) ID

1шт.

19

K600209

BOLT

- 5/16 UNC x 2 inch

3шт.

20

K194981

WASHER - lock, 5/16 inch

3шт.

UK4345

BREAKER POINTS

BRACKET ASSEMBLY - mounting, Includes: Ref. 21 - 24

1шт.

21

K202578

BRACKET

- coupling support

1шт.

22

K603108

SCREW

BOLT - 1/2 UNC x 1-1/2 inch

2шт.

23

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

24

K19474

HARDWARE

WASHER - 1/2 inch (13 mm)

2шт.

25

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick release, implement half, Includes: Ref. 26

1шт.

26

K200645

CAP

COVER - dust, implement coupling

1шт.
