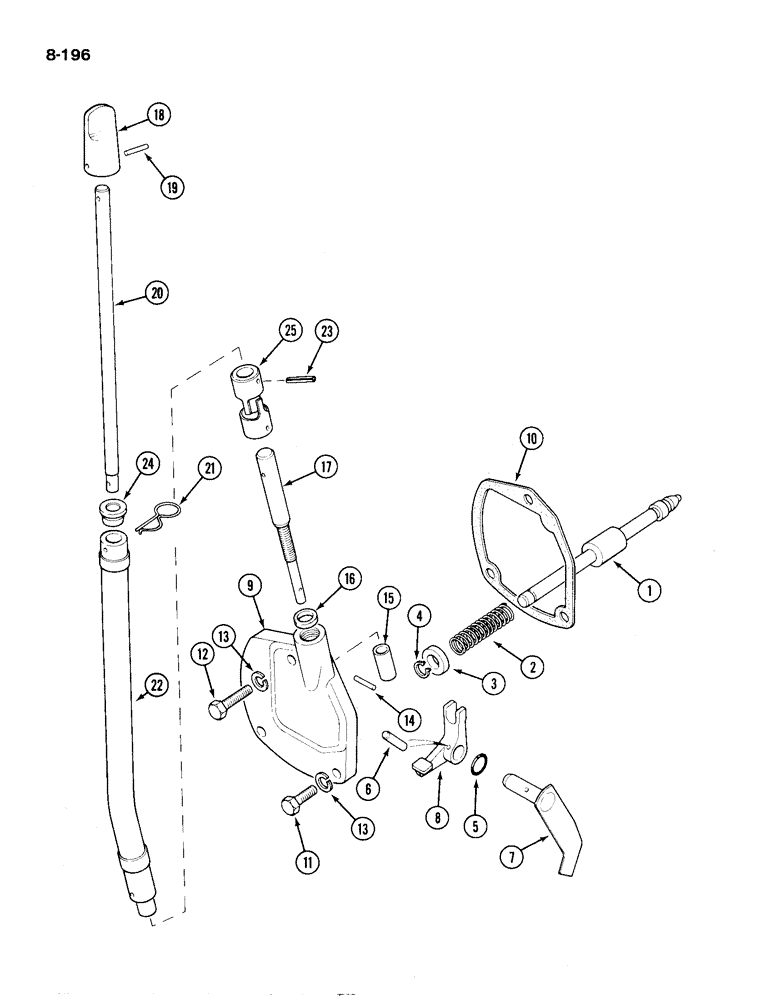

Запчасти Case IH 1194 (8-196) - RATE OF LOWERING CONTROL, TRACTORS WITH CAB (08) - HYDRAULICS

1

K202425

NEEDLE

VALVE - needle

1шт.

2

K625050

SPRING

- needle valve

1шт.

3

K627480

COLLAR

- thrust

1шт.

4

K621562

RING, SNAP

RING - snap, 3/8 inch (10 mm) external

1шт.

5

K24554

O-RING

- 3/8 inch (10 mm) ID

1шт.

6

K623930

SPRING

PIN - 1/8 x 3/4 inch

1шт.

7

K202417

SHAFT

- pivot

1шт.

8

K202416

FORK

- needle control

1шт.

9

K203105

COVER

- control housing

1шт.

10

K202414

GASKET,1.59mm Thk

- cover

1шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

12

K602809

SCREW

BOLT - 5/16 UNC x 1-1/2 inch

1шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

14

K623728

PIN

- 3/32 x 1/2 inch

1шт.

15

K202422

BLOCK

SPACER - spindle

1шт.

16

K623681

WIPER

RING - sealing, 1/2 inch (13 mm) ID

1шт.

17

K202421

SCREW

SPINDLE - adjusting

1шт.

18

K306344

KNOB

- control spindle

1шт.

19

K690976

PIN

- roll, 1/8 x 1 inch

1шт.

20

K307168

SHAFT

SPINDLE - control

1шт.

21

K624874

SPRING

- clip

1шт.

22

K307185

DRIVE

- flexible

1шт.

23

K690976

PIN

- roll, 1/8 x 3/4 inch

2шт.

24

K659210

BUSHING

- plastic

2шт.

25

K203623

JOINT

- universal

1шт.
