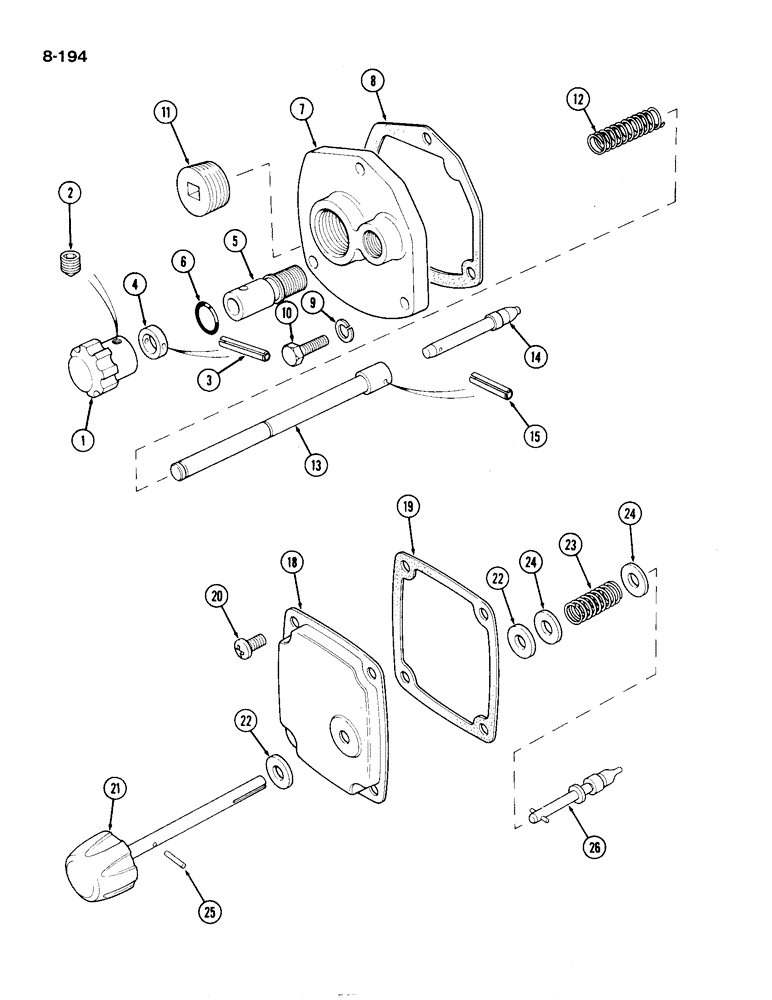

Запчасти Case IH 1194 (8-194) - RATE OF LOWERING CONTROL, TRACTORS WITHOUT CAB, PRIOR TO P.I.N. 11039983 (08) - HYDRAULICS

1

K203592

KNOB

- lowering control

1шт.

2

K606300

SCREW

- set, 1/4 UNC x 1/4 inch

1шт.

3

K623933

SPRING

PIN - spring, 1/8 x 5/8 inch

1шт.

4

K207044

COLLAR

1шт.

5

K203588

GUIDE

- threaded

1шт.

6

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch (14 mm) internal diameter

1шт.

7

K203587

LEVER

COVER - control housing

1шт.

8

K202414

GASKET,1.59mm Thk

-, Serial Range: cover-housing

1шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

11

K12362

PLUG

- 1 inch BSP

1шт.

12

K625050

SPRING

1шт.

13

K203589

SPINDLE

- needle valve

1шт.

14

K957135

NEEDLE

NOSE - needle valve

1шт.

15

K623973

SPRING

PIN - spring, 3/32 x 3/4 inch

1шт.

18

K910860

WASHER

COVER - control housing, tractors without cab - P.I.N. 11039983 and after

1шт.

19

K909559

GASKET,1.59mm Thk

- cover, tractors without cab - P.I.N. 11039983 and after

1шт.

20

K604477

SCREW

- 5/16 UNC x 5/8 inch, tractors without cab - P.I.N. 11039983 and after

4шт.

21

K910721

KNOB

AND SPINDLE - lowering control, tractors without cab - P.I.N. 11039983 and after

1шт.

22

K909573

DISC

WASHER - friction, tractors without cab - P.I.N. 11039983 and after

2шт.

23

K24887

SPRING

- spindle, tractors without cab - P.I.N. 11039983 and after

1шт.

24

K19472

WASHER

- 3/8 inch, tractors without cab - P.I.N. 11039983 and after

2шт.

25

K623930

SPRING

PIN - spring, 1/8 x 3/4 inch, tractors without cab - P.I.N. 11039983 and after

1шт.

26

K944593

NEEDLE

NOSE - needle valve, tractors without cab - P.I.N. 11039983 and after

1шт.
