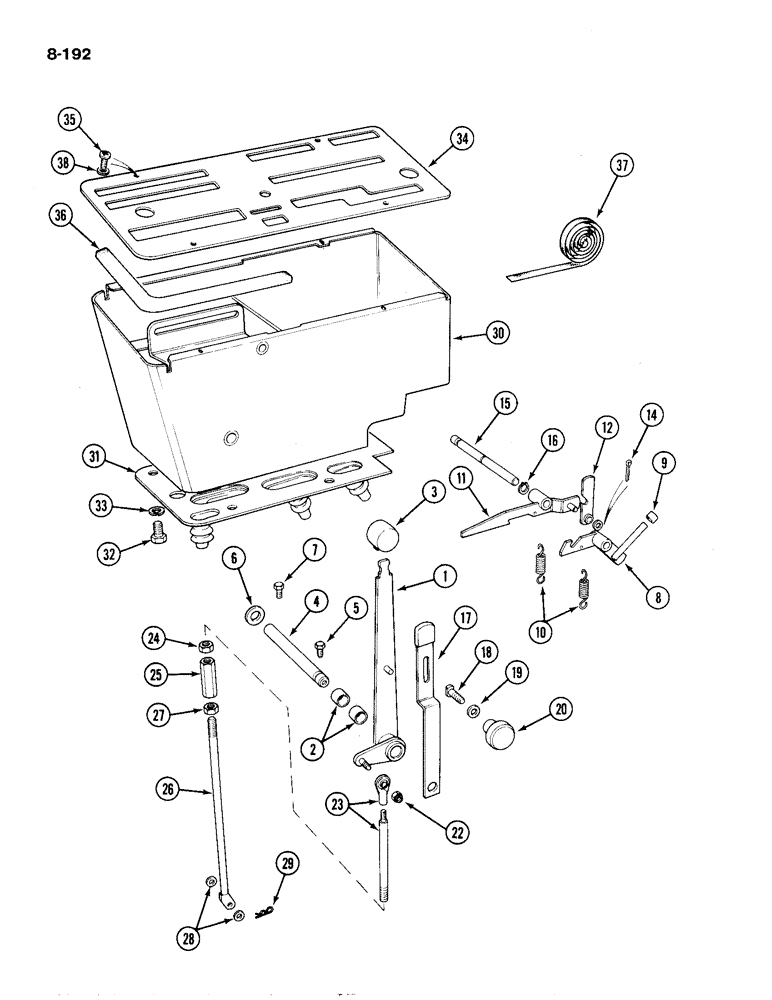

Запчасти Case IH 1194 (8-192) - CONTROL LEVER AND CONSOLE, TRACTORS WITH CAB (08) - HYDRAULICS

1

K306116

LEVER

ASSEMBLY - control, hydraulic system, Includes: Ref. 2

1шт.

2

K655430

BUSHING

- lever

2шт.

3

K306268

KNOB

- lever

1шт.

4

K306161

SHAFT

LSHAFT - lever

1шт.

5

K650803

BOLT,M6 - 1 x 12mm, Grade 8.8

SCREW - locating, M6

1шт.

6

K655810

BUSHING

SPACER - shaft

1шт.

7

K650625

BOLT

- M6 x 12 mm

1шт.

8

K306151

LATCH

LOCK - constant pumping

1шт.

9

K306699

KNOB

- lock

1шт.

10

K624938

SPRING

- return, lock

2шт.

11

K306146

LATCH

LOCK - maximum lift

1шт.

12

K306324

LEVER

LOCK - lever

1шт.

13

K19470

WASHER

- 1/4 inch (6 mm)

1шт.

14

K623605

PIN

- cotter, 1/16 x 1/2 inch

1шт.

15

K306144

SHAFT

- cross

1шт.

16

K621587

RING, SNAP

RING - snap, 8 mm, external

1шт.

17

K306143

GUIDE

- lever

1шт.

18

K909577

STUD

- 5/16 inch UNF, special

1шт.

19

K626682

WASHER

- 8 mm, special

1шт.

20

K921826

SERRATED NUT

- special, 5/16 inch UNF

1шт.

22

K617300

NUT

- self-locking, 1/4 inch UNF

1шт.

23

K306746

ROD

- upper

1шт.

24

K616982

NUT

- 3/8 inch UNF

1шт.

25

K950846

NUT

SLEEVE - adjusting

1шт.

26

K307210

ROD

- lever

1шт.

27

K622808

NUT

- 3/8 inch UNF, left-hand

1шт.

28

K19470

WASHER

- 1/4 inch (6 mm)

2шт.

29

K950865

CLIP

- retaining

1шт.

30

K307874

PANEL

CONSOLE - hydraulic control

1шт.

31

K306501

BOOT

COVER - lever

1шт.

32

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

33

K651848

WASHER

- lock, 8 mm

4шт.

34

K306674

COVER

- console, top

1шт.

35

K656180

SCREW

- No 12 x 1/2 inch

4шт.

36

K628232

GUARD

STRIP - edging, 240 mm

1шт.

37

K307130

STRIP

- damping, 9 x 1.5 x 285 mm

1шт.

38

K626659

WASHER

- nylon

4шт.
