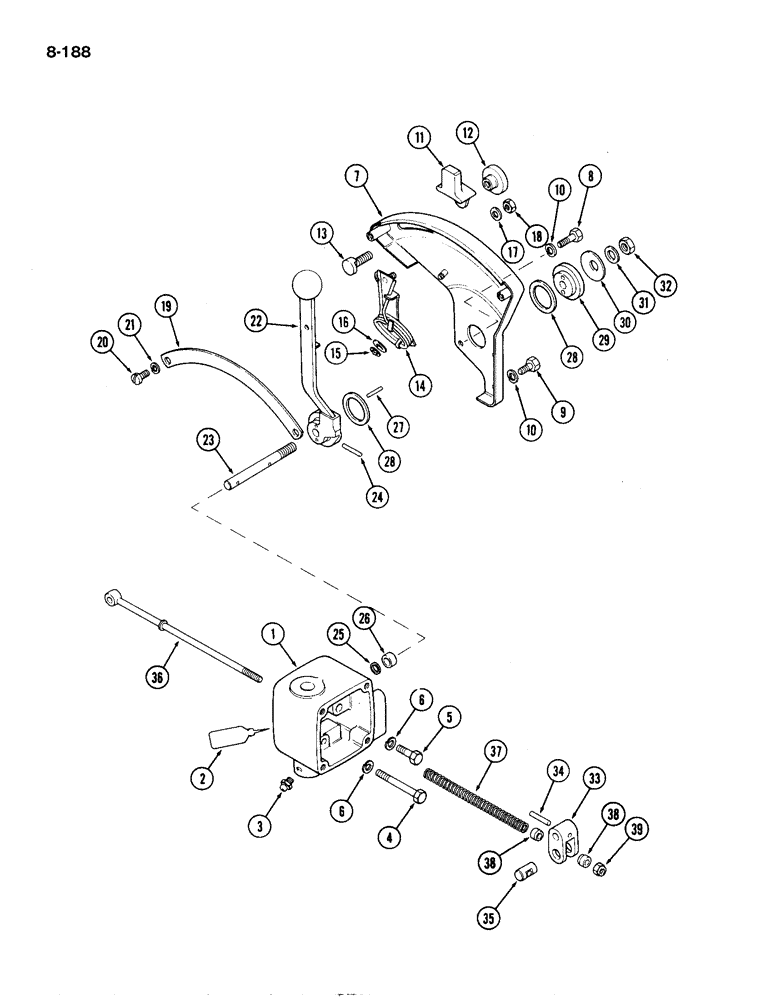

Запчасти Case IH 1194 (8-188) - CONTROL HOUSING AND QUADRANT, TRACTORS WITHOUT CAB, P.I.N. 11039983 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
K929789
LEVER
HOUSING - control, Includes: Ref. 2
1шт.
2
REF
INSTRUCTION
SILMATE RTV - gasket replacement (See Your Authorized Case Dealer)
1шт.
3
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
1шт.
4
K600217
BOLT
- 5/16 inch UNC x 3 inch
2шт.
6
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
3шт.
7
K913263
QUADRANT
- control lever
1шт.
8
413-518
BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5
- 5/16 inch UNC x 1-1/8 inch
1шт.
9
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
BOLT - 5/16 inch UNC x 3/4 inch
2шт.
10
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
3шт.
11
K947403
BRACKET
GUIDE - finger
1шт.
12
K921826
SERRATED NUT
- hand, 5/16 inch UNF
1шт.
13
K909577
STUD
- 5/16 inch UNF, special
1шт.
14
K913935
SPRING
PLATE - carrier, with spring
1шт.
15
K624582
RETAINER
CLIP -, Serial Range: plate-quadrant
1шт.
16
K19470
WASHER
- 1/4 inch
1шт.
17
K626682
WASHER
- 5/16 inch
1шт.
18
9635082
NUT,5/16" - 18, Gr 5
- 5/16 inch UNC
1шт.
19
K913637
STOP
PLATE - quadrant
1шт.
20
K604575
SCREW
- 5/16 UNC x 5/8 inch
2шт.
21
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
2шт.
22
K913268
LEVER
- hydraulic control
1шт.
23
K210000
LEVER
SHAFT - control lever
1шт.
24
K623942
PIN
- spring, 5/32 x 1-1/4 inch
1шт.
25
K623424
RING
- sealing, 1/2 inch (13 mm) ID
1шт.
26
K627068
BUSHING
SLEEVE - plastic
1шт.
27
K621811
PIN
DOWEL - locating
2шт.
28
K909582
WASHER
- friction
2шт.
29
K950864
PLATE
- friction
1шт.
30
K626740
WASHER
- Belleville, 5/8 inch
2шт.
31
K626686
WASHER
- 1/2 inch
1шт.
32
K617273
NUT
- 1/2 inch UNF
1шт.
33
K909584
FORK
- shaft
1шт.
34
K623940
PIN
- spring, 5/32 x 1 inch
1шт.
35
K903370
PIN
- fork
1шт.
36
K909585
ROD
- connecting
1шт.
37
K625161
SPRING
- connecting rod
1шт.
38
K903367
COLLAR
- connecting rod
2шт.
39
231-1435
LOCK NUT,5/16"-18, GB
NUT - self-locking, 5/16 inch UNC
1шт.
Выбрано товаров: 39
