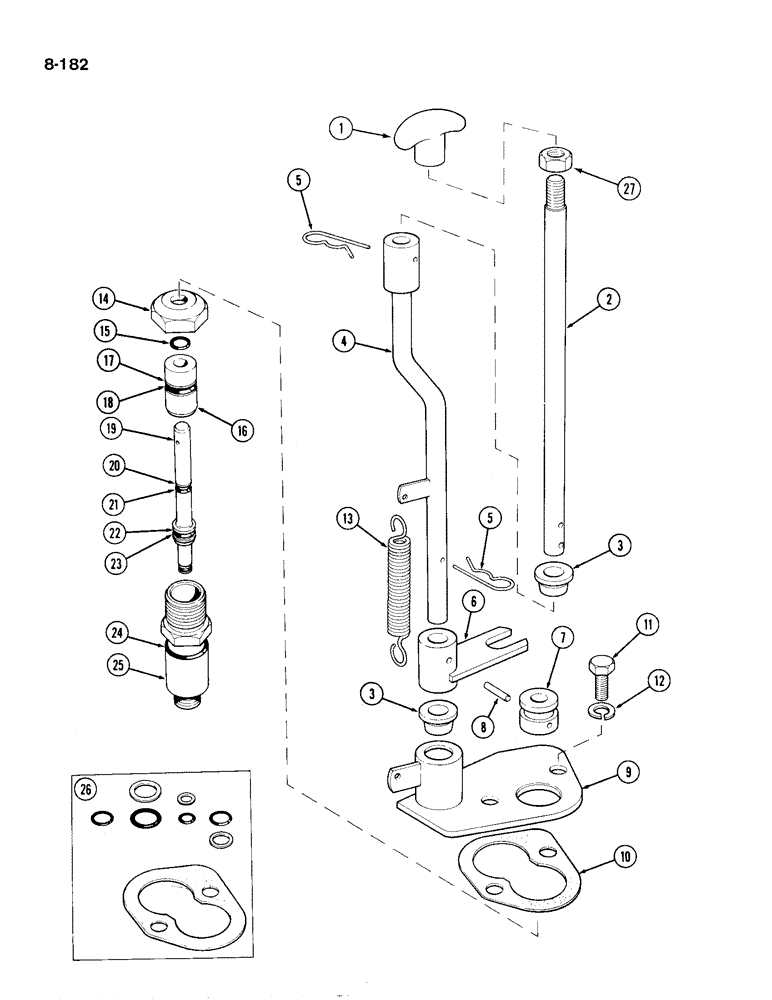

Запчасти Case IH 1194 (8-182) - DUMP VALVE AND CONTROL, TRACTORS WITH CAB (08) - HYDRAULICS

1

K955948

KNOB

- dump control

1шт.

2

K306824

ROD

- upper

1шт.

3

K659210

BUSHING

- plastic

2шт.

4

K307175

ROD

- lower

1шт.

5

K624874

SPRING

CLIP - spring

2шт.

6

K306834

LEVER

- lower rod

1шт.

7

K306830

SPOOL

COLLAR - valve spindle

1шт.

8

K623930

SPRING

PIN - spring, 1/8 x 3/4 inch

1шт.

9

K306837

COVER

PLATE - cover, rear axle

1шт.

10

K929464

GASKET

- cover plate

1шт.

11

K602803

BOLT

- 5/16 UNC x 3/4 inch

2шт.

12

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

13

K624914

SPRING

- control rod

1шт.

K204087

PIPE

VALVE ASSEMBLY - dump, Includes: Ref. 14 - 25

1шт.

14

K918983

NUT

- 1 inch UNF, special

1шт.

15

K24554

O-RING

RING - sealing, 1/2 inch (13 mm) diameter

1шт.

16

K205085

BUSHING

- special

1шт.

17

K628913

RING

- back-up, 3/4 inch (19 mm) external diameter

1шт.

18

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch (14 mm) internal diameter

1шт.

19

K260383

PLUNGER

1шт.

20

K628060

RING,Split, 6.35mm ID x 9.53mm OD x 1.47mm Thk

- back-up, 3/8 inch (10 mm) external diameter

2шт.

21

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4 inch (6 mm) internal diameter

2шт.

22

K625404

O-RING,0.362" ID x 0.103" Width

- 3/8 inch (10 mm) internal diameter

1шт.

23

K948806

RING

- back-up, 9/16 inch (14 mm) external diameter

1шт.

24

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

RING - sealing, 1 inch (25 mm) diameter

1шт.

25

K948804

GUIDE

BODY - valve

1шт.

26

K964568

SEAL

KIT - seals, dump valve

1шт.

27

280136

NUT,3/8"-16, G8

1шт.
