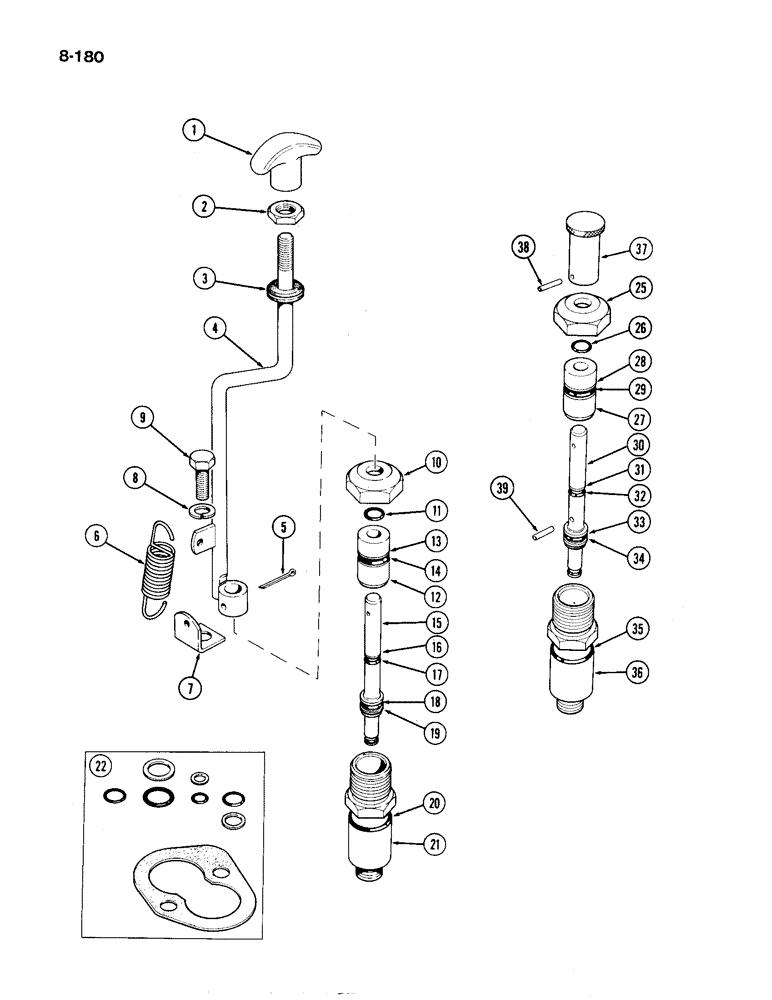

Запчасти Case IH 1194 (8-180) - DUMP VALVE AND CONTROL, TRACTORS WITHOUT CAB, PRIOR TO P.I.N. 11039983 (08) - HYDRAULICS

1

K955948

KNOB

1шт.

2

280136

NUT,3/8"-16, G8

1шт.

3

K627723

GROMMET

- 5/8 inch (16 mm)

1шт.

4

K203886

ROD

- control

1шт.

5

K26228

PIN

- cotter, 1/8 x 7/8 inch

1шт.

6

K624947

SPRING

- return

1шт.

7

K301426

BRACKET

ANCHOR - return spring

1шт.

8

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

9

K602803

BOLT

- 5/16 UNC x 3/4 inch

1шт.

K205087

VALVE

ASSEMBLY - dump, Includes: Ref. 10 - 21

1шт.

10

K918983

NUT

- 1 inch UNF, special

1шт.

11

K24554

O-RING

RING - sealing, 1/2 inch (13 mm) diameter

1шт.

12

K205085

BUSHING

- special

1шт.

13

K628913

RING

- back-up, 3/4 inch (19 mm) external diameter

1шт.

14

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch (14 mm) internal diameter

1шт.

15

K260383

PLUNGER

1шт.

16

K628060

RING,Split, 6.35mm ID x 9.53mm OD x 1.47mm Thk

- back-up, 3/8 inch (10 mm) external diameter

2шт.

17

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4 inch (6 mm) internal diameter

2шт.

18

K625404

O-RING,0.362" ID x 0.103" Width

- 3/8 inch (10 mm) internal diameter

1шт.

19

K948806

RING

- back-up, 9/16 inch (14 mm) external diameter

1шт.

20

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

RING - sealing, 1 inch (25 mm) diameter

1шт.

21

K948804

GUIDE

BODY - valve

1шт.

22

K964568

SEAL

KIT - seals, dump valve

1шт.

K953673

VALVE

ASSEMBLY - dump, tractors without cab - P.I.N. 11039983 and after, Includes: Ref. 25 - 39

1шт.

25

K918983

NUT

- 1 inch UNF, special, tractors without cab - P.I.N. 11039983 and after

1шт.

26

K24554

O-RING

RING - sealing, 1/2 inch (13 mm) diameter, tractors without cab - P.I.N. 11039983 and after

1шт.

27

K948805

BUSHING

- special, tractors without cab - P.I.N. 11039983 and after

1шт.

28

K628913

RING

- back-up, 3/4 inch (19 mm) external diameter, tractors without cab - P.I.N. 11039983 and after

1шт.

29

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch (14 mm) internal diameter, tractors without cab - P.I.N. 11039983 and after

1шт.

30

K964763

PLUNGER

tractors without cab - P.I.N. 11039983 and after

1шт.

31

K628060

RING,Split, 6.35mm ID x 9.53mm OD x 1.47mm Thk

- back-up, 3/8 inch (10 mm) external diameter, tractors without cab - P.I.N. 11039983 and after

2шт.

32

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4 inch (6 mm) internal diameter, tractors without cab - P.I.N. 11039983 and after

2шт.

33

K625404

O-RING,0.362" ID x 0.103" Width

- 3/8 inch (10 mm) internal diameter, tractors without cab - P.I.N. 11039983 and after

1шт.

34

K948806

RING

- back-up, 9/16 inch (14 mm) external diameter, tractors without cab - P.I.N. 11039983 and after

1шт.

35

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

RING - sealing, 1 inch (25 mm) diameter, tractors without cab - P.I.N. 11039983 and after

1шт.

36

K948804

GUIDE

BODY - valve, tractors without cab - P.I.N. 11039983 and after

1шт.

37

K919666

KNOB

tractors without cab - P.I.N. 11039983 and after

1шт.

38

K623724

PIN

- knob, 1/8 x 5/8 inch, tractors without cab - P.I.N. 11039983 and after

1шт.

39

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, , plunger, tractors without cab - P.I.N. 11039983 and after 1/8" x 1/2", Type D

1шт.

22

K964568

SEAL

KIT - seals, dump valve, tractors without cab - P.I.N. 11039983 and after

1шт.
