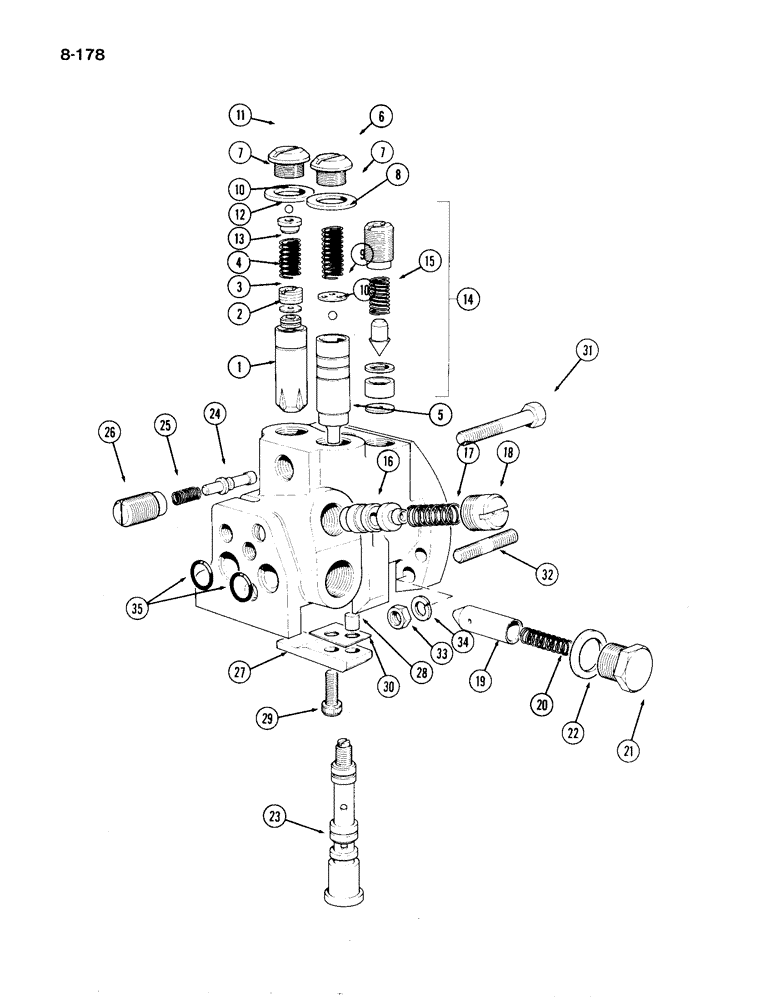

Запчасти Case IH 1194 (8-178) - CONTROL VALVE (08) - HYDRAULICS

K260462

VALVE

ASSEMBLY - remanufactured (North America only), Includes: Ref. 1 - 26

1шт.

K260900

RETURN NUMBER - use this number to return valve core for credit (North America Only)

1шт.

K956606

VALVE

ASSEMBLY - control (without cab - Prior to P.I.N. 11039983), Includes: Ref. 1 - 26

1шт.

1

K957493

VALVE

ASSEMBLY - control (without cab - P.I.N. 11039983 and after), Includes: Ref. 1 - 26

1шт.

K956606

VALVE

ASSEMBLY - control (with cab), Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER - by-pass valve

1шт.

2

K921154

FILTER

- by-pass plunger

1шт.

3

K913621

WASHER

- restrictor

1шт.

4

K947759

PLUG

- 3/8 inch UNF, special

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - hold valve

1шт.

6

K913242

PLUG

- 5/8 inch UNF, without dump valve

1шт.

7

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - sealing, 5/8 inch (16 mm)

2шт.

8

K24832

SPRING

1шт.

9

K920136

SHIM

RETAINER - ball

1шт.

10

K11548

BALL

- steel, 1/8 inch (3 mm)

2шт.

11

K948067

PLUG

- 5/8 inch UNF, special

1шт.

12

K947977

RETAINER

1шт.

13

K24832

SPRING

1шт.

14

K961794

VALVE

- relief, pre-set assembly

1шт.

15

K625160

SPRING

- relief valve

1шт.

16

K202530

SPOOL

- rate of lowering valve

1шт.

17

K625108

SPRING

- rate of lowering valve

1шт.

18

K202531

CAP

PLUG - 3/8 inch BSP, special

1шт.

19

K916395

PLUNGER

- non-return valve

1шт.

20

K625167

SPRING

- non-return valve

1шт.

21

K916397

PLUG

- 3/4 inch UNF, special

1шт.

22

K623530

SEAL

WASHER - sealing, 3/4 inch (19 mm)

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

24

NSS

NOT SOLD SEPARAT

PLUNGER - latching valve

1шт.

25

K625180

SPRING

- latching valve

1шт.

26

K913971

PLUG

- 9/16 inch UNF, special

1шт.

27

K912464

WASHER

PLATE - abutment

1шт.

28

K24853

PIN

DOWEL - 1/4 x 11/16 inch

1шт.

29

K606803

SCREW

- self-locking, 1/4 inch UNC

1шт.

30

K912467

SHIM,.015" Thk

(0.38 mm) .015" Thk

1шт.

30

K912465

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

30

K912466

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

31

K600211

BOLT

- 5/16 UNC x 2-1/4 inch

1шт.

32

K608143

STUD

- 5/16 UNC x 1-1/2 inch

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

35

K625408

O-RING

- 7/16 inch (11 mm) internal diameter

2шт.
