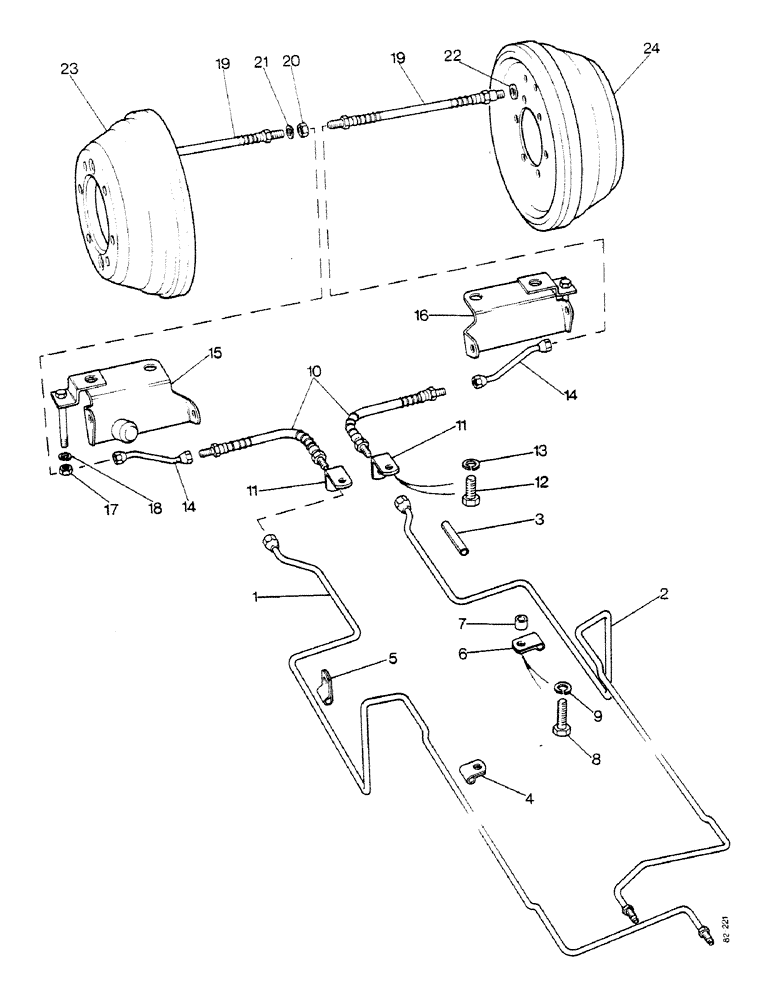

Запчасти Case IH 1190 (J2) - PIPES, FRONT BRAKES (07) - BRAKES

1a

K302973

PIPE

banjo to left-hand flexible, 1290, 1390 Highway

1шт.

1b

K302905

PIPE

banjo to left hand flexible, 1190 Highway

1шт.

2a

K302974

PIPE

banjo to right-hand flexible, 1290, 1390 Highway

1шт.

2b

K302906

PIPE

banjo to right-hand flexible, 1190 Highway

1шт.

3

K206244

SLEEVE

NYLON

2шт.

4

K657000

CLIP

pipes to gearbox cover

4шт.

5

K621725

CLIP

2шт.

6a

K621610

CLIP

1290, 1390 Highway

2шт.

6b

K621728

PIPE

CLIP - right-hand pipe, 1190 Highway

1шт.

6c

K621619

CLIP

left-hand pipe, 1190 Highway

1шт.

7

K627020

BUSHING

DISTANCE PIECE

2шт.

8a

K602806

BOLT

SETSCREW - 5/16 UNC x 1-1/8 inch, 1290, 1390 Highway

2шт.

8b

K602735

SCREW

SET - 1/4 x 3/4 inch, 1190 Highway

1шт.

9a

K19481

SPRING WASHER

SPRING - 5/16 inch, 1290, 1390 Highway

2шт.

9b

K626341

SPRING WASHER

SPRING - 1/4 inch, 1190 Highway

1шт.

10

K953945

HOSE

PIPE - flexible, 3/8 UNF x 12-1/2 inch

2шт.

11a

K953946

SUPPORT

BRACKET - flexible pipes, 1290, 1390 Highway

2шт.

11b

K304879

BRACKET

BRACKET - flexible pipes, 1190 Highway

2шт.

12

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SET - 5/16 UNC x 3/4 inch

2шт.

13

K19481

SPRING WASHER

SPRING - 5/16 inch

2шт.

14

K954134

PIPE

, Serial Range: flexible-flexible

2шт.

15

K206418

BRACKET

SUPPORT - left-hand pipe

1шт.

16

K206419

BRACKET

SUPPORT - right-hand pipe

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

K19481

SPRING WASHER

SPRING - 5/16 inch

2шт.

19a

K972385

HOSE

SPARE PART PIPE - flexible, 3/8 UNF x 13 inch, 1290, 1390 Highway

2шт.

19b

K965248

WASHER

PIPE - flexible, 3/8 UNF x 17 inch, 1190 Highway

2шт.

20

K617052

NUT

LOCK - 3/8 UNF

4шт.

21

K626479

WASHER

LOCK - 3/8 inch

4шт.

22

K626447

WASHER

SEALING - 3/8 inch

2шт.

23

K943507

BRAKE

BRAKE ASSEMBLY - left-hand front

2шт.

24

K943508

BRAKE

BRAKE ASSEMBLY - right-hand front

1шт.
