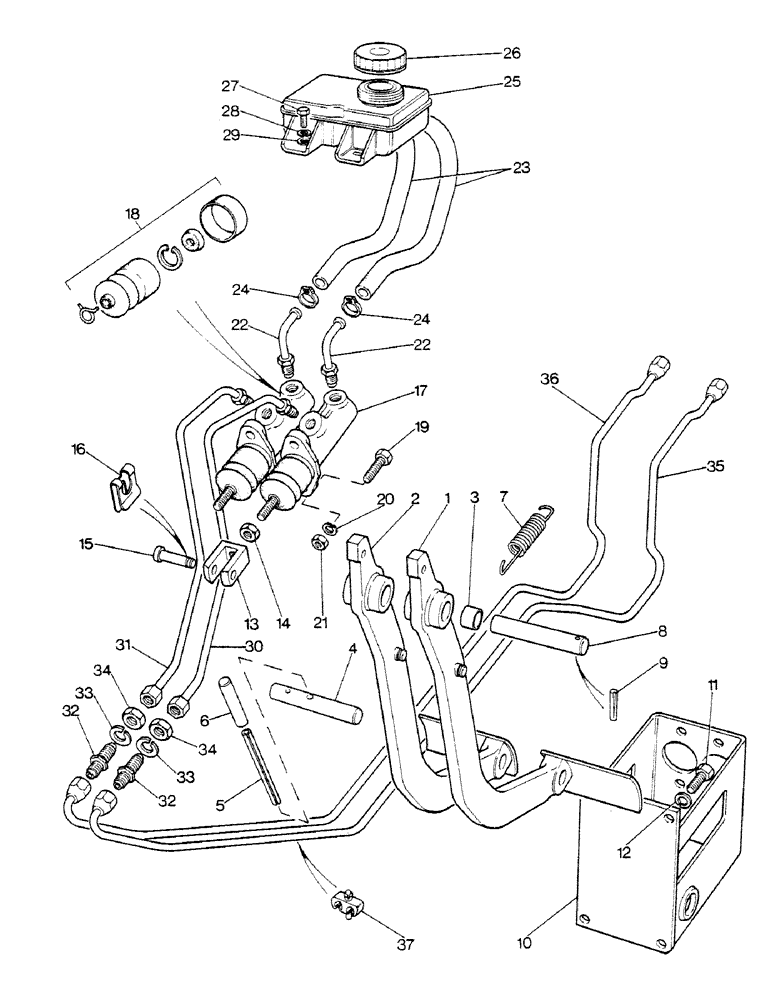

Запчасти Case IH 1190 (J1) - BRAKE PEDALS, MASTER CYLINDERS AND PIPES (07) - BRAKES

1

K303678

PEDAL

BRAKE - left-hand, Includes: Ref. 3

1шт.

2

K303677

PEDAL

BRAKE - right-hand, Includes: Ref. 3

1шт.

3

K303744

BUSHING

pedals

2шт.

4

K304611

BRAKE

LOCK - brake pedals

1шт.

5

K657616

PIN

SPRING - 6 x 80 mm

1шт.

6

K303812

LARGE PIN

PIN, LARGE COUNTERWEIGHT

1шт.

7

K303540

SPRING

RETURN

2шт.

8

K303546

SHAFT

SPARE PART PIVOT PIN - pedals

1шт.

9

K690706

PIN

SPRING - 6 x 30 mm

1шт.

10

K303164

MOUNTING PARTS

SUPPORT BRACKET - pedals

1шт.

11

K650641

SCREW

SET - M8 x 16

4шт.

12

K651848

WASHER

SPRING - 8 mm

4шт.

13

K622212

FORK

END - 5/16 UNF

2шт.

14

425-115

NUT,5/16"-24, G5

Lock

2шт.

15

K625930

PIN

CLEVIS - 5/16 x 1-5/32 inch

2шт.

16

K625040

CLIP

RETAINING

2шт.

17

K949121

CYLINDER

MASTER

2шт.

18

K964780

SEAL

KIT - vegetable oil seals

1шт.

19

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SET - 5/16 UNC x 1-1/8 inch

4шт.

20

K19481

SPRING WASHER

SPRING - 5/16 inch

4шт.

21

9635082

NUT,5/16" - 18, Gr 5

4шт.

22

K302897

PIPE

master cylinder inlet

2шт.

23

K304880

HOSE

1/4 x 8-1/2 inch

2шт.

24

K656903

CLIP

HOSE

2шт.

25

K304507

RESERVOIR

Includes: Ref. 26

1шт.

26

K302457

CAP

FILLER

1шт.

27

K652474

BOLT

SETSCREW - M6 x 12

2шт.

28

K651847

WASHER, LOCK

SPRING - 6 mm

2шт.

29

K651777

WASHER

6 mm

2шт.

30

K302899

PIPE

left-hand master, Serial Range: cylinder-union

1шт.

31

K302898

PIPE

right-hand master, Serial Range: cylinder-union

1шт.

32

K206201

UNION - 7/16 UNF

2шт.

33

K626480

WASHER

SPRING - 7/16 inch

2шт.

34

K617033

NUT

LOCK - 7/16 UNF

2шт.

35

K302901

PIPE

left-hand, Serial Range: union-flexible

1шт.

36

K302900

PIPE

right-hand, Serial Range: union-flexible

1шт.

37

K657120

CLIP

, Serial Range: pipes-cab

2шт.
