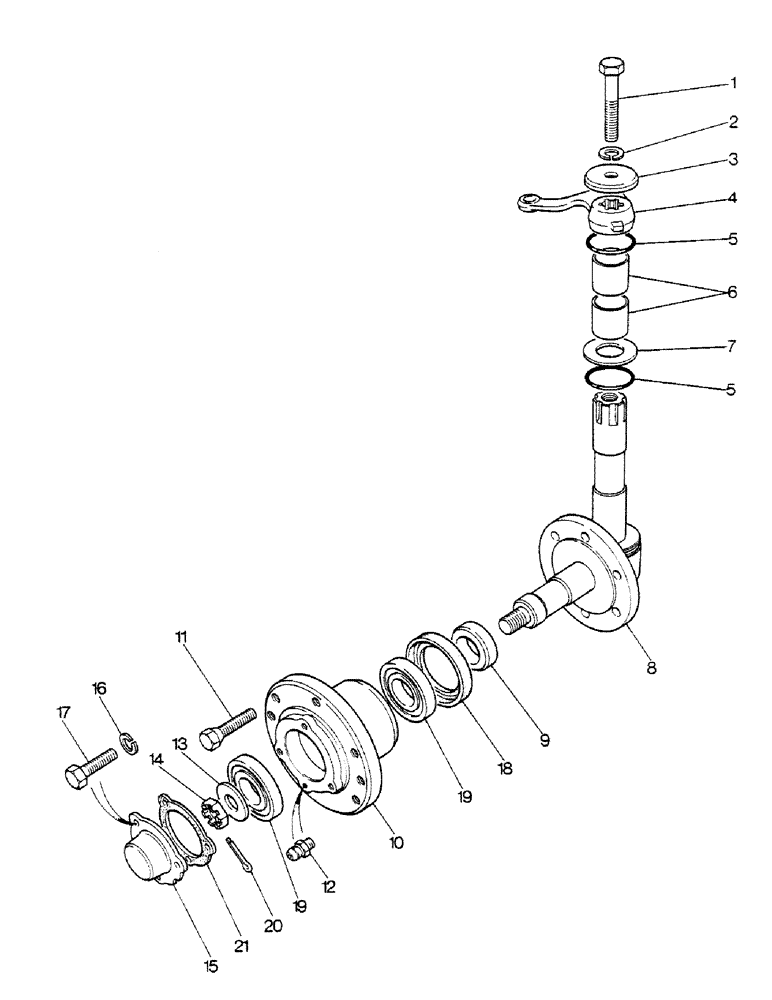

Запчасти Case IH 1190 (G1) - FRONT HUBS AND STUB AXLES (06) - POWER TRAIN

1a

K601210

BOLT (SPREADER)

5/8 UNC x 2 3/4in, right-hand lever

1шт.

1b

K601213

BOLT

5/8 UNC x 3 1/4 inch, left-hand lever

1шт.

2

K19485

WASHER

SPRING - 5/8 inch order K966207 (10)

2шт.

3

K15595

WASHER

5/8 inch, special

2шт.

4a

K942525

LEVER

STEERING - right-hand

1шт.

4b

K200597

LEVER

STEERING - left-hand

1шт.

5

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2 inch internal "0"

4шт.

6

K11598

BUSHING

beam extension

4шт.

7

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

THRUST

2шт.

8a

K963408

SHAFT

STUB AXLE - with brake flange, 1190 Highway, Includes: Ref. 9a and 9b

2шт.

8b

K964579

SHAFT

STUB AXLE - with brake flange, 12/1390 Highway, Includes: Ref. 9a and 9b

2шт.

9a

K943500

SLEEVE

oil seal, 1190 Highway

1шт.

9b

K953300

SEAL

SLEEVE - oil seal, 12/1390 Highway

1шт.

10

K943501

HUB

FRONT

2шт.

11

K971809

WHEEL BOLT

WHEEL - 1/2 UNC x 2-1/4 inch

12шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

ANF, Order K966110 (10)

2шт.

13

K626673

WASHER

3/4 inch, special

2шт.

14

K617157

NUT

SLOTTED - 3/4 inch, special

2шт.

15

K908913

CAP

HUB

2шт.

16

K19481

SPRING WASHER

SPRING - 5/16 inch order K966405 (10)

6шт.

17

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SET - 5/16 UNC x 5/8 inch order K966405 (10)

6шт.

K962985

BEARING ASSY

hub bearings and seal, Includes: Ref. 18 - 21

2шт.

18

K623450

OIL SEAL

OIL - 2-1/8 x 3 x 12 inch

1шт.

19

K620046

BEARING

TAPERED ROLLER

2шт.

20

K623603

PIN

SPLIT - 5/32 x 1 1/8 inch order K966610 (10)

1шт.

21

K15344

GASKET,0.25mm Thk

order K966127 (10)

1шт.
