(T2) - REAR FOG LAMP AND DECALS

Запчасти Case IH 1190 (T2) - REAR FOG LAMP AND DECALS (09) - CHASSIS

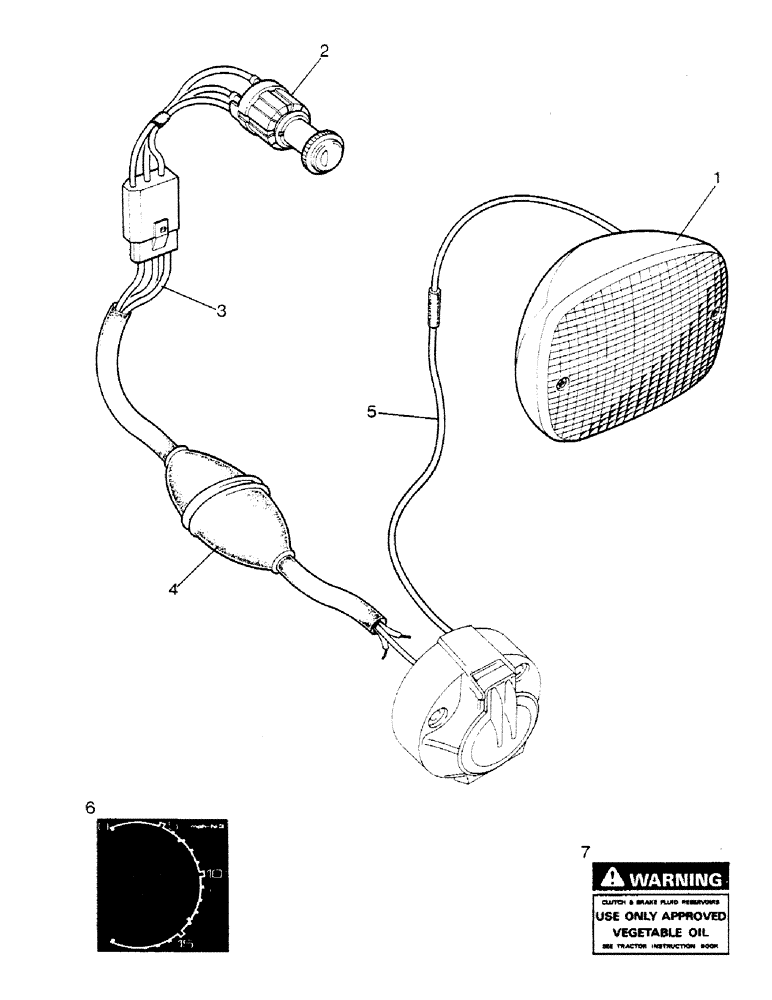

Схема запчастей Case IH 1190 - (T2) - REAR FOG LAMP AND DECALS (09) - CHASSIS
6
7
6
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K304509

LAMP

rear fog, Lucas type L921

1шт.

2

K302035

SWITCH

SPARE PART fog lamp

1шт.

3

K302939

HARNESS

lighting, Serial Range: switch-connectors

1шт.

4

K302940

ELECTRICAL WIRE

WIRE LEAD - 12-way connector to trailer socket

1шт.

5

K302941

ELECTRICAL WIRE

WIRE LEAD - trailer socket to lamp connector

1шт.

6

K204929

PRODUCT GRAPHIC

DECAL - road speeds

1шт.

7

K204897

DECAL

clutch and brake fluid

1шт.
