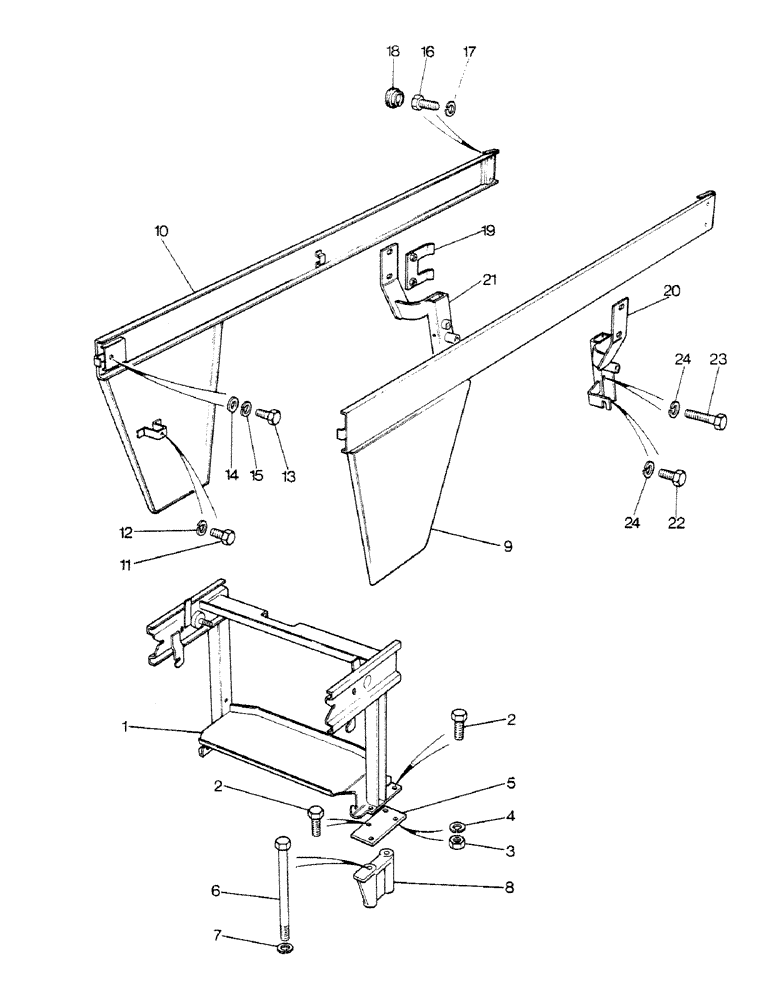

Запчасти Case IH 1190 (N5) - REAR OPENING, ENGINE COVER, SUPPORT FRAME (09) - CHASSIS

1

K304342

FRAME

SUPPORT - engine cover

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

280136

NUT,3/8"-16, G8

4шт.

4

K19482

SPRING WASHER

SPRING - 3/8 inch

4шт.

5a

K304309

PLATE

cover support, 1190 Highway

2шт.

5b

K304311

PLATE

cover support, 1290, 1390 Highway

2шт.

6

K600424

SCREW

BOLT - 3/8 UNC x 5 inch

4шт.

7

K19482

SPRING WASHER

SPRING - 3/8 UNC

4шт.

8

K301195

SUPPORT

2шт.

9a

K306420

SPARE PART

SIDE FRAME - left-hand, yellow

1шт.

9b

K304782

RAIL

SIDE FRAME - left-hand yellow, 1290, 1390 Highway

1шт.

10a

K306421

SPARE PART

SIDE FRAME - right-hand, yellow, 1190 Highway

1шт.

10b

K304783

RAIL

SIDE FRAME - right-hand, yellow, 1290, 1390 Highway

1шт.

11

K655643

BOLT

M8 x 18

2шт.

12

K651848

WASHER

SPRING - 8 mm

2шт.

13

K655643

BOLT

M8 x 18

2шт.

14

K651778

WASHER

8 mm

2шт.

15

K651848

WASHER

SPRING - 8 mm

2шт.

16

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

17

K651874

SPRING

WASHER - 8 mm

4шт.

18

K627992

PLUG

PLASTIC - waistrail

4шт.

19

K304541

NUT

PLATE

2шт.

20a

K304548

SUPPORT

left-hand rear, 1190 Highway

1шт.

21a

K304551

SUPPORT

right-hand rear, 1190 Highway

1шт.

20b

K304531

SUPPORT

left-hand rear, 1290, 1390 Highway

1шт.

21b

K304535

SUPPORT

SPARE PART right-hand rear, 1290, 1390 Highway

1шт.

22

K602902

SCREW

SET - 3/8 UNC x 3/4 inch

2шт.

23

K600406

BOLT

3/8 UNC x 1-3/4 inch

2шт.

24

K19482

SPRING WASHER

SPRING - 3/8 inch

4шт.
