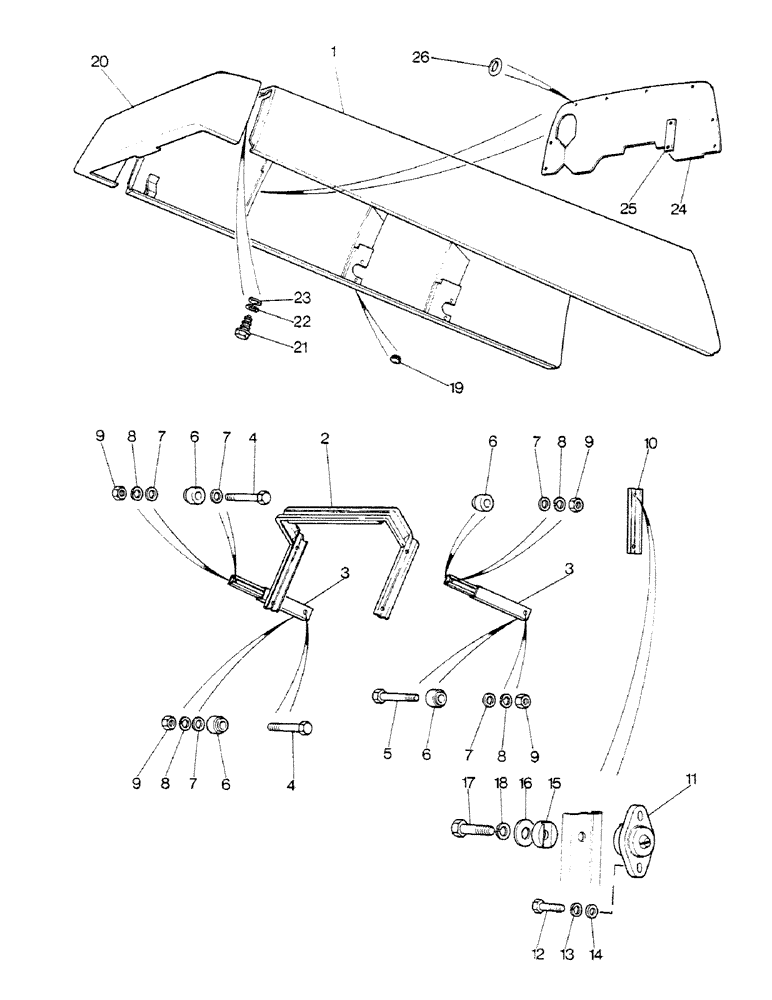

Запчасти Case IH 1190 (N3) - FRONT OPENING, ENGINE COVER, TOP AND HINGE (09) - CHASSIS

1a

K304779

SPARE PART

ENGINE COVER - top, yellow, 1190 Highway

1шт.

1b

K300366

HOOD

SPARE PART ENGINE COVER - top, 1290, 1390 Highway

1шт.

2a

K300916

LINK

front, 1190 Highway

1шт.

2b

K301668

LINK

SPARE PART front, 1290, 1390 Highway

1шт.

3a

K300420

SLIDE

STAY - front link, 1190 Highway

1шт.

3b

K301000

SUPPORT

STAY - front link

2шт.

4

K650630

BOLT

M6 x 30 mm

1шт.

5

K650629

SCREW

BOLT - M6 x 25 mm

1шт.

6a

K300922

BUSHING

SPACER - 6 x 14 x 7 mm

2шт.

6b

K301548

BUSHING

SPACER - 6 x 14 x 3 mm

1шт.

7

K651777

WASHER

6 mm

2шт.

8

K651847

WASHER, LOCK

SPRING - 6 mm

2шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

10a

K300914

SPARE PART

LINK - rear, 1190 Highway

1шт.

10b

K300911

LINK

rear, left-hand, 1290, 1390 Highway

1шт.

10c

K301690

LINK

rear, right-hand, 1290, 1390 Highway

1шт.

11

K304095

LINK

PIVOT BRACKET

8шт.

12

K655629

BOLT

M6 x 20 mm

16шт.

13

K651847

WASHER, LOCK

SPRING - 6 mm

16шт.

14

K19470

WASHER

6 mm

16шт.

15

K300910

WASHER

8 mm, special

4шт.

16

K692199

WASHER

8 x 25 x 1.6 mm

4шт.

17

K602859

SCREW

BOLT - 5/16 UNC x 1 inch

8шт.

18

K651848

WASHER

SPRING - 5/16 inch

8шт.

19

K916596

PLUG

RUBBER

4шт.

20

K206101

HOOD

NOSE - engine cover top, yellow

1шт.

21

K624533

SCREW

self-tapping, 8 mm

5шт.

22

K626552

WASHER

SPRING - 8 mm

5шт.

23

K651778

WASHER

8 mm

5шт.

24a

K300887

BAFFLE

radiator, 1190 Highway

1шт.

24b

K300886

BAFFLE

radiator, 1290, 1390 Highway

1шт.

25

K301514

STRIP

CLAMPING

2шт.

26

K626776

WASHER

CUP - 1/8 inch

6шт.
