(N2) - FRONT OPENING, ENGINE COVER, SUPPORT FRAME

Запчасти Case IH 1190 (N2) - FRONT OPENING, ENGINE COVER, SUPPORT FRAME (09) - CHASSIS

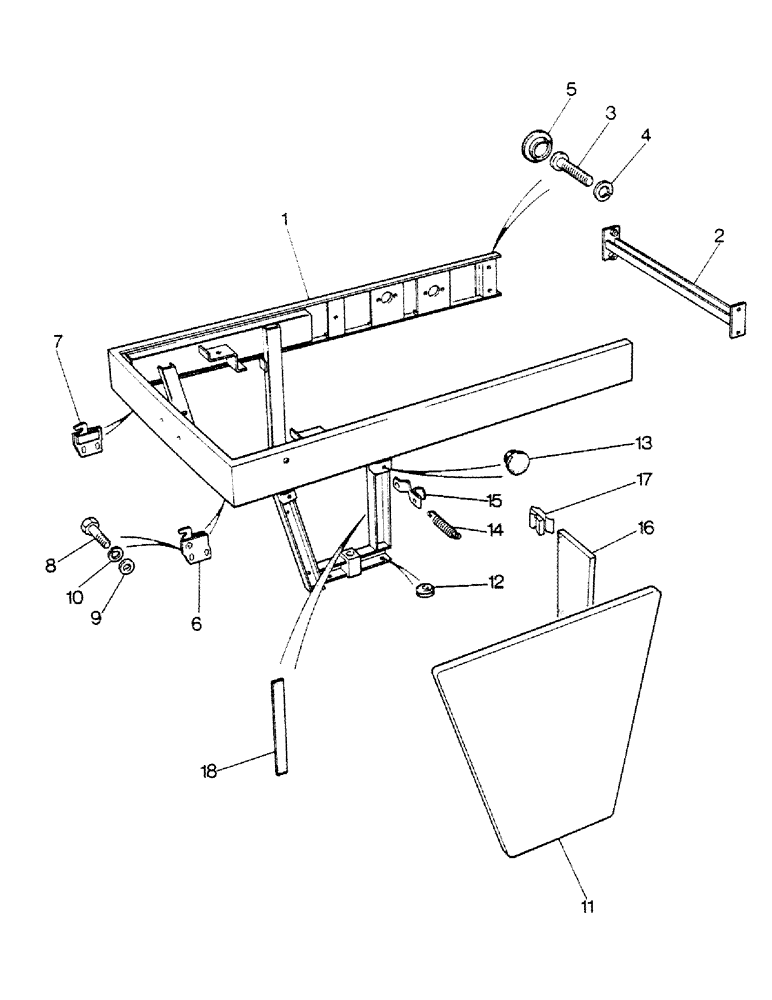

Схема запчастей Case IH 1190 - (N2) - FRONT OPENING, ENGINE COVER, SUPPORT FRAME (09) - CHASSIS
11
4
18
14
5
2
9
16
3
10
17
8
1
12
6
15
7
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1a

K301083

SUPPORT

FRAME - 1190 Highway

1шт.

1b

K301080

SUPPORT

SPARE PART FRAME - 1290, 1390 Highway

1шт.

2a

K301218

DRIVEN PLATE

CROSS STRUT - 1190 Highway

1шт.

2b

K301094

DRIVEN PLATE

CROSS STRUT - 1290, 1390 Highway

1шт.

3

K654070

SCREW

SET - M x 20

4шт.

4

K651874

SPRING

WASHER - 8 mm

4шт.

5

K627992

PLUG

PLASTIC - waistrail

4шт.

6

K300500

LOCK

left-hand

1шт.

7

K300499

LOCK

right-hand

1шт.

8

K655629

BOLT

M6 x 20

4шт.

9

K651777

WASHER

6 mm

4шт.

10

K651847

WASHER, LOCK

SPRING - 6 mm

4шт.

11

K304791

SPARE PART

SIDE PANEL - yellow

1шт.

12

K627754

GROMMET

GROMMET - 14mm

4шт.

13

K627771

BUTTON

RUBBER PLUG

4шт.

14

K624940

SPRING

2шт.

15

K915791

GRIP

FINGER

2шт.

16

K300888

SEAL

side panel

2шт.

17

K621744

CLIP

RETAINING

8шт.

18

K300811

RADIATOR

SEALING STRIP - indicator side

2шт.
