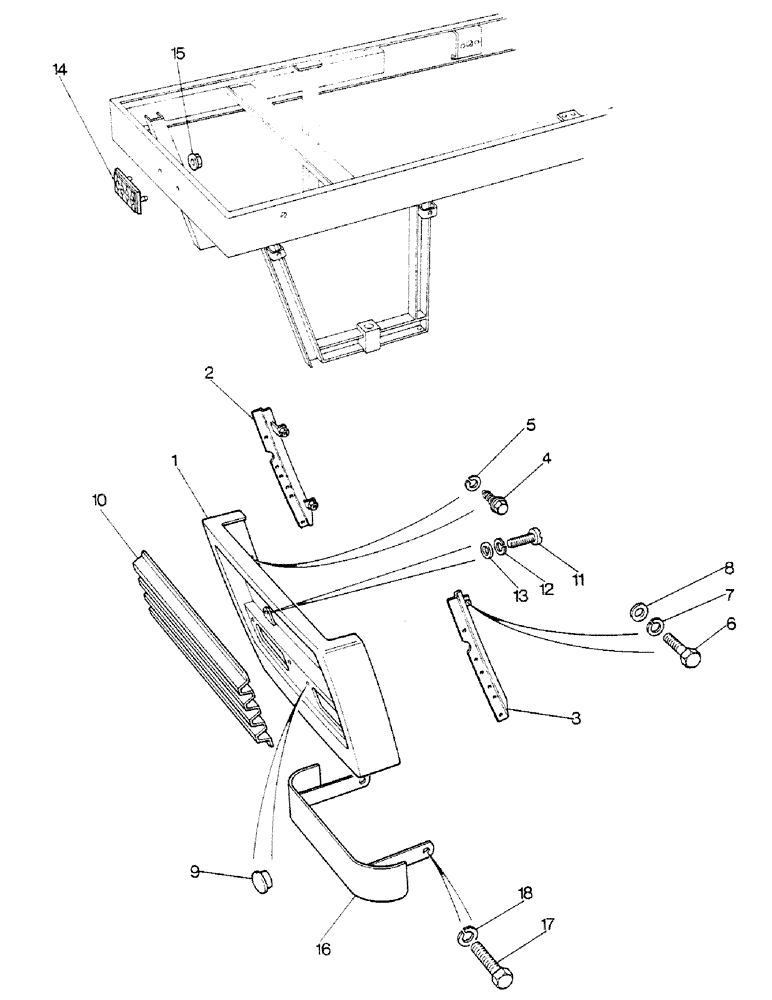

Запчасти Case IH 1190 (N1) - FRONT OPENING, ENGINE COVER, FRONT (09) - CHASSIS

1

K304794

HOOD

NOSE - lower, yellow

1шт.

2

K302716

BRACKET

SUPPORT - left-hand

1шт.

3

K302717

SUPPORT

right-hand

1шт.

4

K624533

SCREW

self-tapping

6шт.

5

K626552

WASHER

SPRING - 8 mm

6шт.

6

K655645

BOLT

M8 x 22

4шт.

7

K651848

WASHER

SPRING - 8 mm

4шт.

8

K651778

WASHER

8 mm

4шт.

9

K627874

PLUG

headlamp adjusters

4шт.

10

K300093

GUARD

GRILLE - lower

1шт.

11

K652464

SCREW

M5 x 16

4шт.

12

K651846

WASHER, LOCK

SPRING - 5 mm

4шт.

13

K626946

WASHER

5 mm, special

4шт.

14

K300238

EMBLEM CASE/IH

MEDALLION - Case logo

1шт.

15

K623280

NUT

1/4 inch, special

2шт.

16

K301302

PLATE

LOWER PANEL

1шт.

17

K603302

SCREW

SET - 5/8 UNC x 1 inch

2шт.

18

K19485

WASHER

SPRING - 5/8 inch

2шт.
