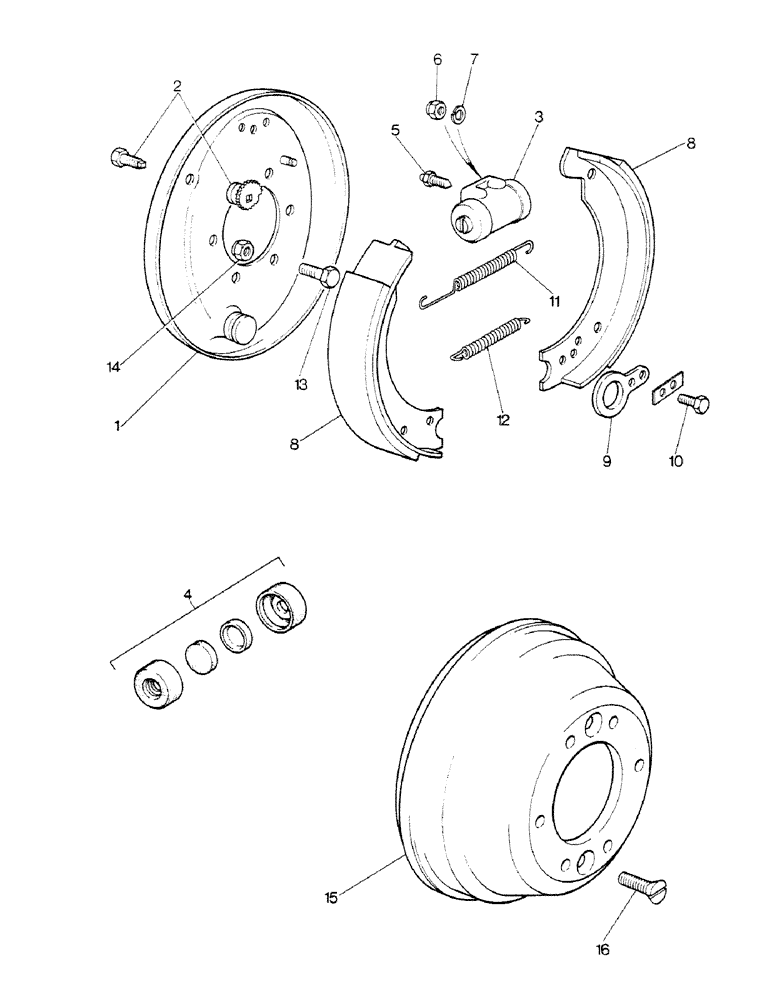

Запчасти Case IH 1190 (J4) - FRONT BRAKES (07) - BRAKES

K943507

BRAKE

BRAKE ASSEMBLY - left-hand front, Includes: Ref. 1a - 12

1шт.

K943508

BRAKE

BRAKE ASSEMBLY - right-hand front, Includes: Ref. 1a - 12

1шт.

1a

K964506

PLATE

BACK - left-hand

1шт.

1b

K964507

PLATE

BACK - right-hand

1шт.

2

K964516

CAM

KIT - snail cam

1шт.

3a

K964511

WHEEL

SPARE PART CYLINDER - left-hand, Includes: Ref. 4

1шт.

3b

K964512

WHEEL

SPARE PART CYLINDER - right-hand, Includes: Ref. 4

1шт.

4

K964513

KIT

SEAL KIT - wheel cylinder

1шт.

5

K964519

SCREW

SPARE PART air removal, 3/8 UNF

1шт.

6

K964515

NUT

LOCK

2шт.

7

K964514

SPRING

WASHER

2шт.

8a

K964508

SHOE

SPARE PART BRAKE - pair, left-hand

1шт.

8b

K965505

FENDER

BRAKE SHOES - pair, right-hand

1шт.

9

K964517

PLATE

ANCHOR - brake shoe

1шт.

10

K964518

SCREW

SET - anchor plate

1шт.

11

K964509

SPRING

, Serial Range: shoe-backplate

1шт.

12

K964510

SPRING

, Serial Range: shoe-shoe

1шт.

13

K600503

BOLT

3/8 UNC x 1-1/16 inch

12шт.

14

232-1416

LOCK NUT,3/8"-16, GC

UNC, self-locking

12шт.

15

K943502

BRAKE

DRUM - front

2шт.

16

K604211

SCREW

1/2 UNC x 1-1/2

4шт.
