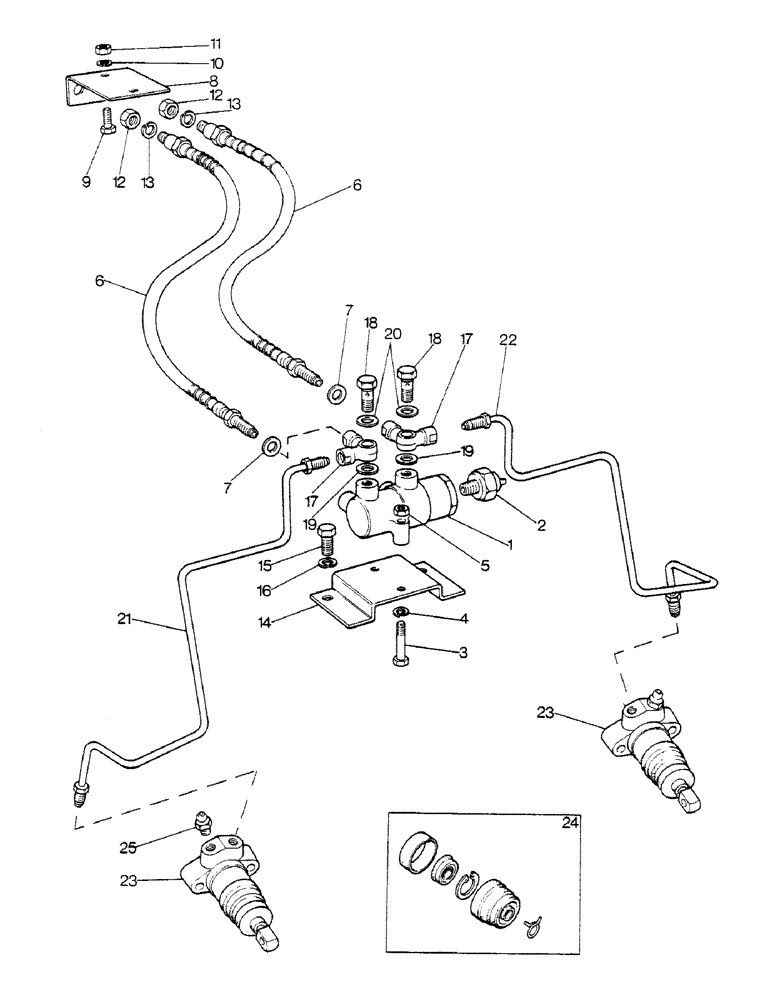

Запчасти Case IH 1190 (J3) - PIPES, REAR BRAKES (07) - BRAKES

1

K204439

VALVE

BALANCE

1шт.

2

K206163

SWITCH

stop lamps

1шт.

3

K600150

BOLT

1/4 UNC 1 1/2 inch

2шт.

4

K626341

SPRING WASHER

SPRING - 1/4 inch

2шт.

5

K607043

NUT

1/4 UNC

2шт.

6

K972385

HOSE

SPARE PART PIPE - flexible, 3/8 UNF x 15 1/4 inch

2шт.

7

K626447

WASHER

SEALING - 3/8 inch

2шт.

8

K304852

BRACKET

SUPPORT - flexible pipes

1шт.

9

K602735

SCREW

SET - 1/4 UNC x 3/4 inch, Serial Range: bracket-cab

2шт.

10

K626341

SPRING WASHER

SPRING - 1/4 inch, Serial Range: bracket-cab

2шт.

11

K607043

NUT

1/4 UNC

2шт.

12

K626479

WASHER

LOCKNUT - 3/8 UNF

2шт.

13

K626479

WASHER

LOCK - 3/8 inch

2шт.

14

K304851

BRACKET

SUPPORT - balance valve

1шт.

15

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SET - 3/8 UNC x 3/4 inch bracket to rear axle

2шт.

16

K19482

SPRING WASHER

SPRING - 3/8 inch bracket to rear axle

2шт.

17

K626096

FITTING

BANJO - 3/8 UNF

2шт.

18

K620344

BANJO BOLT

BANJO - 3/8 UNF

2шт.

19

K626447

WASHER

SEALING - 3/8 inch

2шт.

20

K14674

WASHER

SEALING - 7/16 inch

2шт.

21

K302976

PIPE

banjo to left-hand slave cylinder

1шт.

22

K302975

PIPE

banjo to right-hand slave cylinder

1шт.

23

K304687

BRAKE

SLAVE CYLINDER - Includes: Ref. 24 and 25

2шт.

24

K261057

SEAL

SEAL KIT

1шт.

25

K261074

SCREW

air removal, M10

1шт.
