(T-06) - SAFETY SEAT BELT

Запчасти Case IH 1190 (T-06) - SAFETY SEAT BELT (10) - OPERATORS PLATFORM/CAB

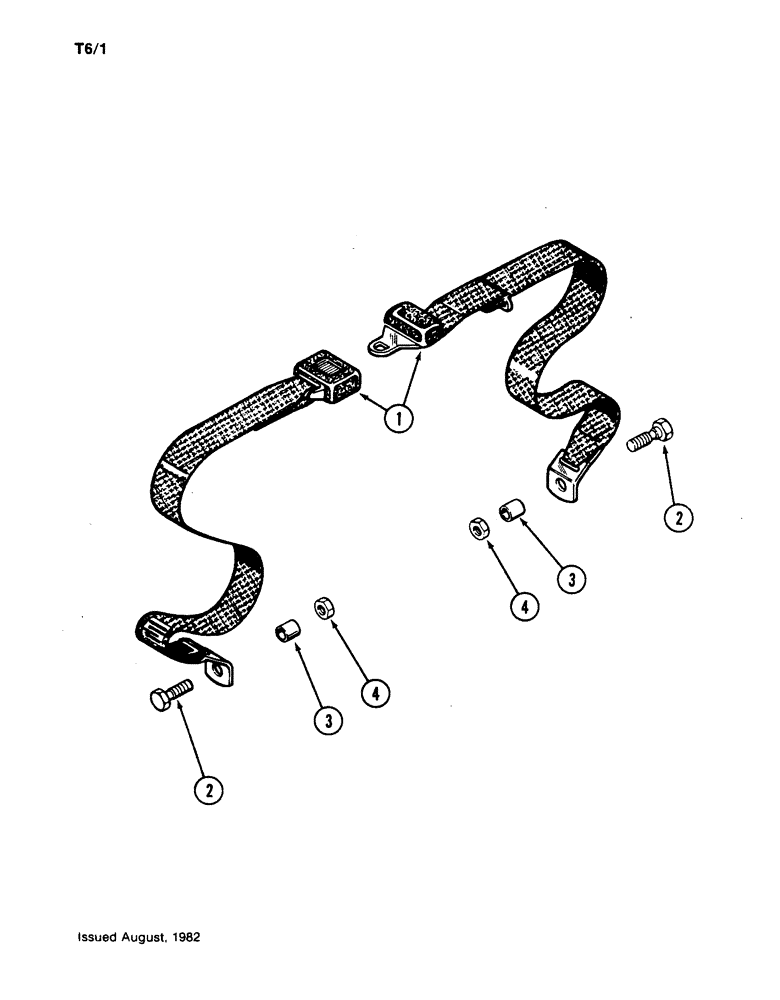

Схема запчастей Case IH 1190 - (T-06) - SAFETY SEAT BELT (10) - OPERATORS PLATFORM/CAB
3
2
4
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A160404

SAFETY BELT

BELT - seat safety

1шт.

A164475

HARDWARE PACKAGE - mounting, belt, Includes Ref: 2 - 4

1шт.

2

A61946

STEP BOLT

BOLT - shoulder, set belt

2шт.

3

A60907

BUSHING

SPACER - bolt

2шт.

4

731-205

NUT - lock, 5/16" NC hex with nylon insert

2шт.
