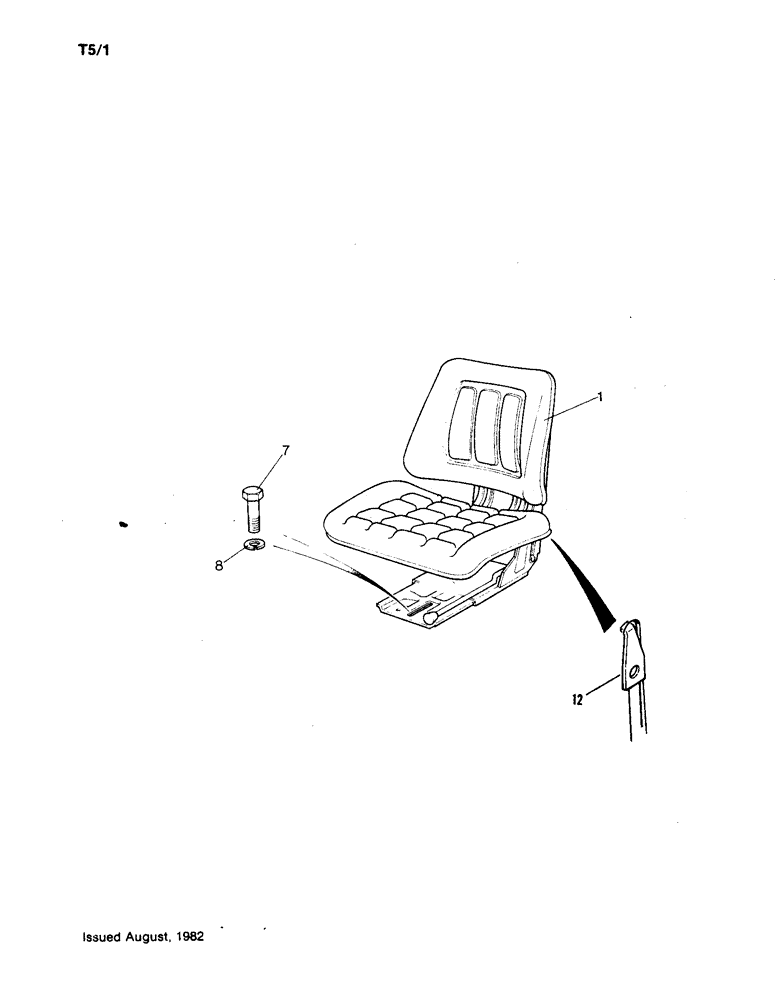

Запчасти Case IH 1190 (T-05[A]) - SEAT ASSEMBLY AND ROLL BAR (10) - OPERATORS PLATFORM/CAB

1

UK4221

SEAT

ASSEMBLY - standard (Order K300771, Page T5/4)

1шт.

K260656

SEAT COVER

CUSHION - seat

1шт.

K260655

SEAT

CUSHION - back

1шт.

7

K650660

BOLT

- M10 x 25, Serial Range: seat-tractor

4шт.

8

K651849

WASHER

- lock, 10 mm, Serial Range: seat-tractor

4шт.

12

K205718

STRAP - stop, seat (Mounted to top bolt)

2шт.

A164477

FRAME

ROPS - two post with hardware (Not shown) (Sims Part No. B-1000-0701), low profile special

1шт.

A164478

TOP

CANOPY - operator with hardware (Not shown) (Sims Part No. B-1000-0702), low profile special

1шт.
