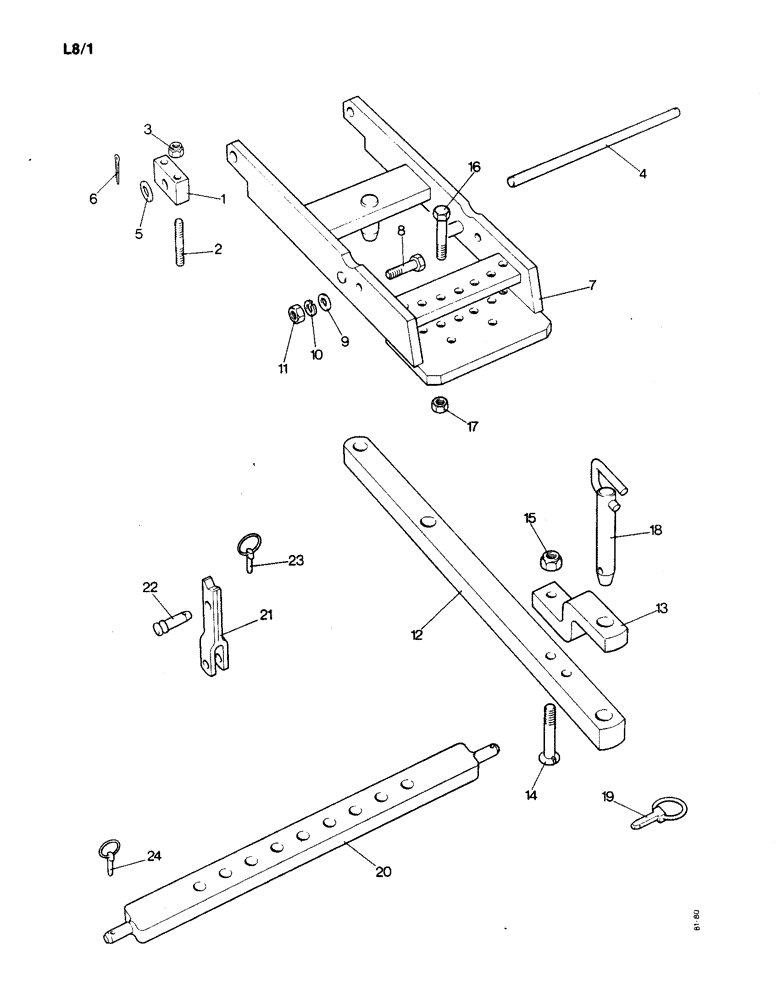

Запчасти Case IH 1190 (L-08) - UNIVERSAL DRAWBAR (09) - IMPLEMENT LIFT

UK1673

BAR

SUPPORT FRAME UNIT, Includes Ref: 1 - 11

1шт.

1

K912087

HINGE

BRACKET

2шт.

2

K608508

STUD

- 1/2 UNC x 3-7/8"

4шт.

3

K607804

NUT

LOCKNUT - 1/2 UNC

4шт.

4

K943056

HINGE

BAR

1шт.

5

K19476

WASHER

- 3/4", order K966204 (10)

2шт.

6

K26230

PIN, SPLIT (COTTER)

SPLIT PIN - 3/16 x 1-3/8", order K966282 (10)

2шт.

7

K946192

SUPPORT

DRAWBAR SUPPORT

1шт.

8

K601405

BOLT

- 3/4 UNC x 2-3/8"

2шт.

9

K19476

WASHER

- 3/4", order K966204 (10)

2шт.

10

K19486

WASHER, LOCK

WASHER - lock, 3/4", order K966208 (10)

2шт.

11

280954

NUT,3/4"-10, G5

- 3/4 UNC

2шт.

UK1672

UNIVERSAL JOINT

DRAWBAR UNIT, Includes Ref: 12 - 19

1шт.

12

K946154

DRAWBAR, SWINGING

DRAWBAR

1шт.

13

K916516

CLEVIS

BRACKET

1шт.

14

K601664

BOLT

- 5/8 UNC x 3-1/4", special

2шт.

15

K607463

NUT

LOCKNUT - 5/8 UNC

2шт.

16

K601332

BOLT

- 5/8 UNC x 4"

2шт.

17

K607306

NUT

LOCKNUT - 5/8 UNC

2шт.

18

K946789

HITCH PIN

HITHC PIN

1шт.

19

K920359

PIN

LINCH PIN AND RING

1шт.

UK1600

LINKAGE

DRAWBAR UNIT, Includes Ref: 20 - 24

1шт.

20

K902280

LINKAGE

DRAWBAR

1шт.

21

NLS

NO LONGER SERVICED

LIFT ROD EXTENSION

2шт.

22

K903399

HITCH PIN

LINK PIN - 5/16 x 2-3/6"

2шт.

23

K66408

PIN

LINCH PIN AND RING

2шт.

24

K920359

PIN

LINCH PIN AND RING

2шт.
