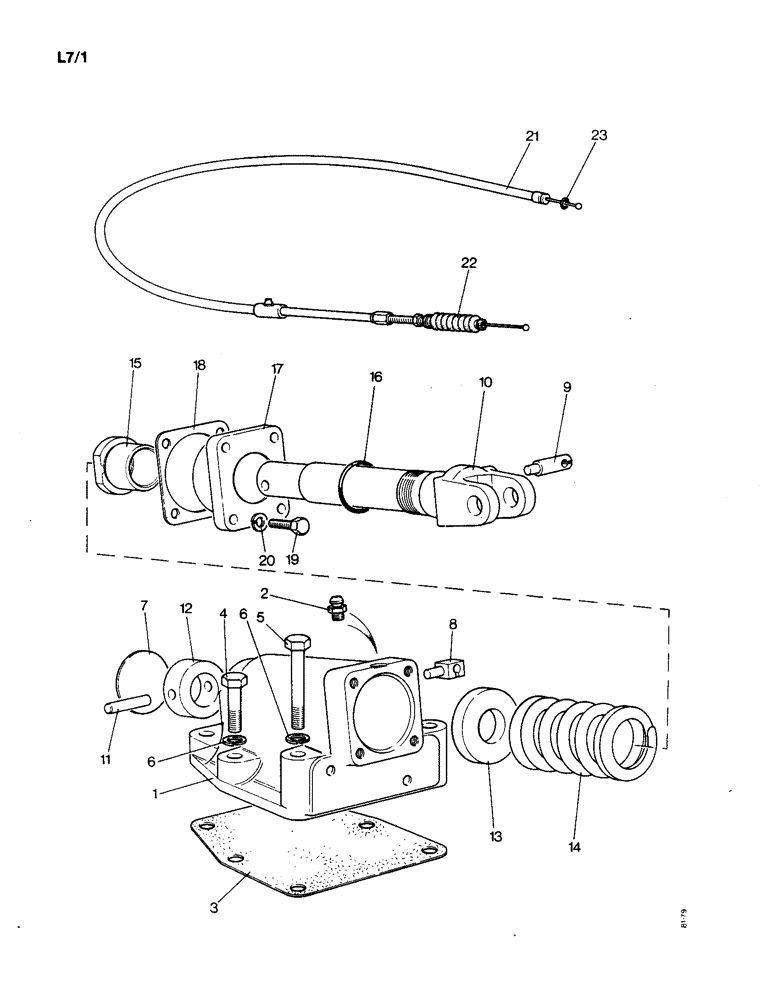

Запчасти Case IH 1190 (L-07) - SINGLE RATE SENSING UNIT (09) - IMPLEMENT LIFT

1

K202576

CASE

HOUSING

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg

1шт.

3

K926451

GASKET,0.56mm Thk

1шт.

4

K600885

BOLT

- 1/2 UNC x 2"

4шт.

5

K600887

BOLT

- 1/2 UNC x 3-1/4"

2шт.

5

K608834

BOLT

- 1/2 UNC x 3-1/2", coupling bracket

1шт.

6

K626686

WASHER

- lock, 1/2", order K966755 (10)

6шт.

7

K623813

PLUG

CORE PLUG - 2-3/8"

1шт.

8

K912371

CABLE

SUPPORT - outer

1шт.

9

K913852

LARGE PIN

CABLE SUPPORT - inner

1шт.

10

K915258

SHAFT

1шт.

11

K915117

PIN

RETAINING PIN - 3/8" x 2-1/4"

1шт.

12

K915266

COLLAR

1шт.

13

K915101

WASHER

THRUST WASHER - 0.375"

1шт.

13

K915112

WASHER

THRUST WASHER - 0.355"

1шт.

13

K915113

WASHER

THRUST WASHER - 0.365"

1шт.

13

K915114

WASHER

THRUST WASHER - 0.385"

1шт.

13

K915115

WASHER

THRUST WASHER - 0.395"

1шт.

13

K915116

WASHER

THRUST WASHER - 0.405"

1шт.

14

K915263

SPRING

1шт.

15

K915262

SLEEVE

1шт.

16

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- 1-7/8" internal diameter

1шт.

17

K915261

FLANGE

END PLATE

1шт.

18

K915096

SHIM,.005" Thk

Order K967059 (10) .005" Thk

1шт.

18

K915097

SHIM,.010" Thk

Order K967060 (10) .010" Thk

1шт.

18

K915098

SHIM,.030" Thk

Order K967061 (10) .030" Thk

1шт.

19

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Order K966428 (10) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

4шт.

21

K962896

LINK

CABLE - inner and outer, Includes Ref: 22

1шт.

22

K911970

BOOT

DIRT SEAL

1шт.

23

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

- 1/4" internal diameter

1шт.
