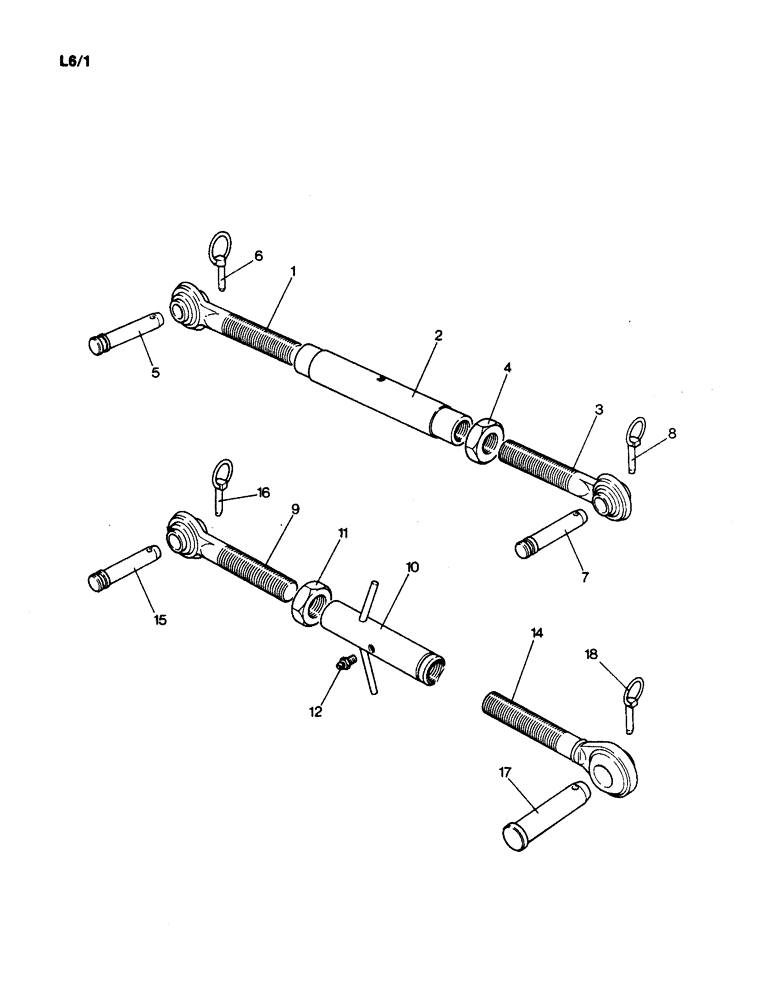

Запчасти Case IH 1190 (L-06) - TOP LINK (09) - IMPLEMENT LIFT

K927079

LINK

TOP LINK ASSEMBLY - Category 1 linkage only, Includes Ref: 1 - 4

1шт.

1

K912362

SCREW

AND HOUSING - 7-1/2", tractor end, Category 1 linkage only

1шт.

2

K927080

TUBE

TURNBUCKLE - 1", UNC, Category 1 linkage only

1шт.

3

K912365

SCREW

AND HOUSING - 7-1/2", Catergory 1 linkage only

1шт.

4

K607059

NUT

LOCKNUT - 1" UNC, Category 1 linkage only

1шт.

5

K912936

PIN

LINK PIN - sensing unit, Category 1 linkage only

1шт.

6

K66408

PIN

LINCH PIN AND RING - Category 1 linkage only

1шт.

7

K903981

HITCH PIN

LINK PIN - Category 1 linkage only

1шт.

8

K920359

PIN

LINCH PIN AND RING - Category 1 linkage only

1шт.

K942056

LINK

TOP LINK ASSEMBLY - Dual Category linkage only, Includes Ref: 9 - 14

1шт.

9

K920796

SCREW

AND HOUSING - 7-7/8", tractor end, Dual Category linkage only

1шт.

10

K920800

TURNBUCKLE

- 1" UNC, Dual Category linkage only

1шт.

11

K19448

LOCK NUT

LOCKNUT - 1" UNC, Dual Category linkage only

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Dual Category linkage only, Order K966110 (10) 1/4"-28 NPT x .54" lg

1шт.

14

K942057

SCREW

AND HOUSING - 9", Dual Category linkage only

1шт.

15

K912936

PIN

LINK PIN - sensing unit, Dual Category linkage only

1шт.

16

K66408

PIN

LINCH PIN AND RING - Dual Category linkage only

1шт.

17

K65690

HITCH PIN

LINK PIN - Category 2, Dual Category linkage only

1шт.

17

K903981

HITCH PIN

LINK PIN - Category 1, Dual Category linkage only

1шт.

18

K920359

PIN

LINCH PIN AND RING - Dual Category linkage only

1шт.
