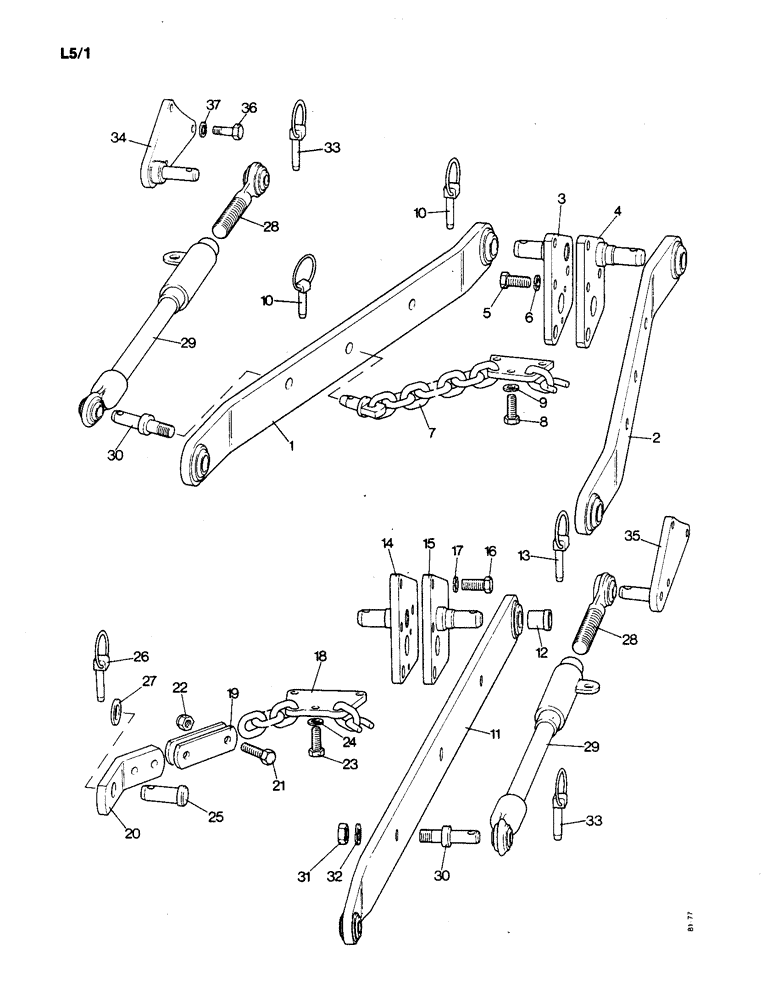

Запчасти Case IH 1190 (L-05) - LOWER LINKS AND STABILIZER BARS (09) - IMPLEMENT LIFT

1

K928548

LINK

LOWER LINK - 30-1/2", left hand, Category 1 linkage only

1шт.

2

K928549

LINK

LOWER LINK - 30-1/2", right hand, Category 1 linkage only

1шт.

3

K940091

BRACKET

HITCH BRACKET - left hand, Category 1 linkage only

1шт.

4

K940092

BRACKET

HITCH BRACKET - right hand, Category 1 linkage only

1шт.

5

K603143

SCREW

BOLT - 1/2 UNC x 1-1/2", Category 1 linkage only

6шт.

6

K626345

LOCK WASHER

WASHER - lock, 1/2", Category 1 linkage only - order K966716 (10)

6шт.

7

K942994

CHAIN (AG)

CHECK CHAIN - Category 1 linkage only

1шт.

8

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Category 1 linkage only - order K966428 (10) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8", Category 1 linkage only - order K966206 (10)

3шт.

10

K66408

PIN

LINCH PIN AND RING - Category 1 linkage only

4шт.

11

K943631

LINK

LOWER LINK - 30-1/2", Dual Category linkage only

2шт.

12

K922071

BUSHING

- Dual Category linkage only

2шт.

13

K920359

PIN

LINCH PIN AND RING - Dual Category linkage only

4шт.

14

K943627

BRACKET

HITCH BRACKET - left hand, Dual Category linkage only

1шт.

15

K943628

HITCH ASSY

HITCH BRACKET - right hand, Dual Category linkage only

1шт.

16

K603143

SCREW

BOLT - 1/2 UNC x 1-1/2", Dual Category linkage only

6шт.

17

K626345

LOCK WASHER

WASHER - lock, 1/2", Dual Category linkage only - order K966716 (10)

6шт.

18

K201225

CHAIN (AG)

CHECK CHAIN ASSEMBLY - Dual Category linkage only, Includes Ref: 19 - 22

1шт.

19

K943855

PLATE

ADJUSTING PLATE - Dual Category linkage only

4шт.

20

K201227

PLATE

- Dual Category linkage only

2шт.

21

K602934

SCREW,3/8" - 16 x 1 1/2", Gr 5

BOLT - 3/8 UNC x 1-1/2", Dual Category linkage only - order K966423 (10)

4шт.

22

K607460

NUT

- 3/8 UNC, self-locking, Dual Category linkage only

4шт.

23

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Dual Category linkage only - order K966428 (10) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

24

K19482

SPRING WASHER

WASHER - lock, 3/8", Dual Category linkage only - order K966206 (10)

3шт.

25

K946108

HEADED PIN

PIN - check chain, Dual Category linkage only

2шт.

26

K915678

PIN

LINCH PIN AND RING

2шт.

27

K19476

WASHER

- 3/4", order K966204 (10)

1шт.

UK1272

STABILIZER

LINKAGE STABILIZER UNIT - Catergory 1 linkage

1шт.

UK1581

STABILIZER

LINKAGE STABILIZER UNIT - Dual Category linkage, Includes Ref: 38 - 37

1шт.

K955899

STABILIZER

BAR ASSEMBLY - telescopic, Includes Ref: 28 and 29

2шт.

28

K914993

END

BALL HOUSING - front

1шт.

29

K955900

TUBE,8.125" L

AND BALL HOUSING - rear

1шт.

30

K912228

PIN

- lower link

2шт.

31

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

32

K19485

WASHER

- lock, 5/8", order K966207 (10)

2шт.

33

K920359

PIN

LINCH PIN AND RING

4шт.

34

K922654

PLATE

BRACKET - left hand, Category 1 linkage only

1шт.

34

K922656

PLATE

BRACKET - right hand, Category 1 linkage only

1шт.

35

K948525

PLATE

BRACKET - left hand, Dual Category linkage

1шт.

35

K948526

PLATE

BRACKET - right hand, Dual Category linkage

1шт.

36

K603143

SCREW

BOLT - 1/2 UNC x 1-1/2"

1шт.

37

K626345

LOCK WASHER

WASHER - lock, 1/2", order K966716 (10)

1шт.
