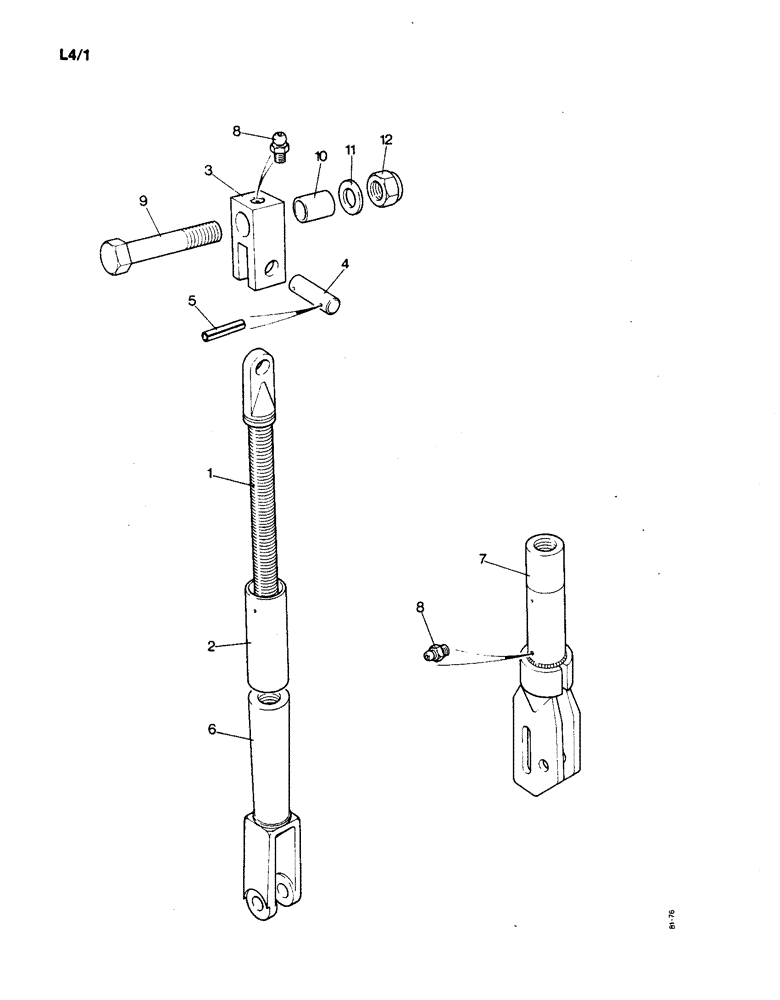

Запчасти Case IH 1190 (L-04) - LIFT ROD, DUAL CATEGORY LINKAGE (09) - IMPLEMENT LIFT

K940505

ROD

LIFT ROD ASSEMBLY - standard

1шт.

K204586

ROD

LIFT ROD ASSEMBLY - slotted

1шт.

1

K962978

SET SCREW

ADJUSTING SCREW - 1" Whitworth x 10-7/8"

1шт.

2

K940510

TUBE,1.75" ID x 6.187" L

- 1-3/4 x 6-1/4"

1шт.

3

K921914

FORK

END

1шт.

4

K948353

PIVOT PIN

1шт.

5

K623740

SPLIT PIN/SAFETY PIN

SPRING PIN - 3/16 x 7/8", order K966625 (10)

2шт.

6

K940700

NUT

ADJUSTING NUT - standard

1шт.

7

K945967

CLEVIS

ADJUSTING NUT - slotted

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg

2шт.

9

K601413

BOLT

- 3/4 UNC x 3-3/4", rod to ramshaft cover

1шт.

10

K901963

BUSHING

- rod to ramshaft cover

1шт.

11

K19476

WASHER

- 3/4", rod to ramshaft cover - order K966204 (10)

1шт.

12

K607446

NUT

- 3/4 UNC, self-locking rod, to ramshaft cover

1шт.
