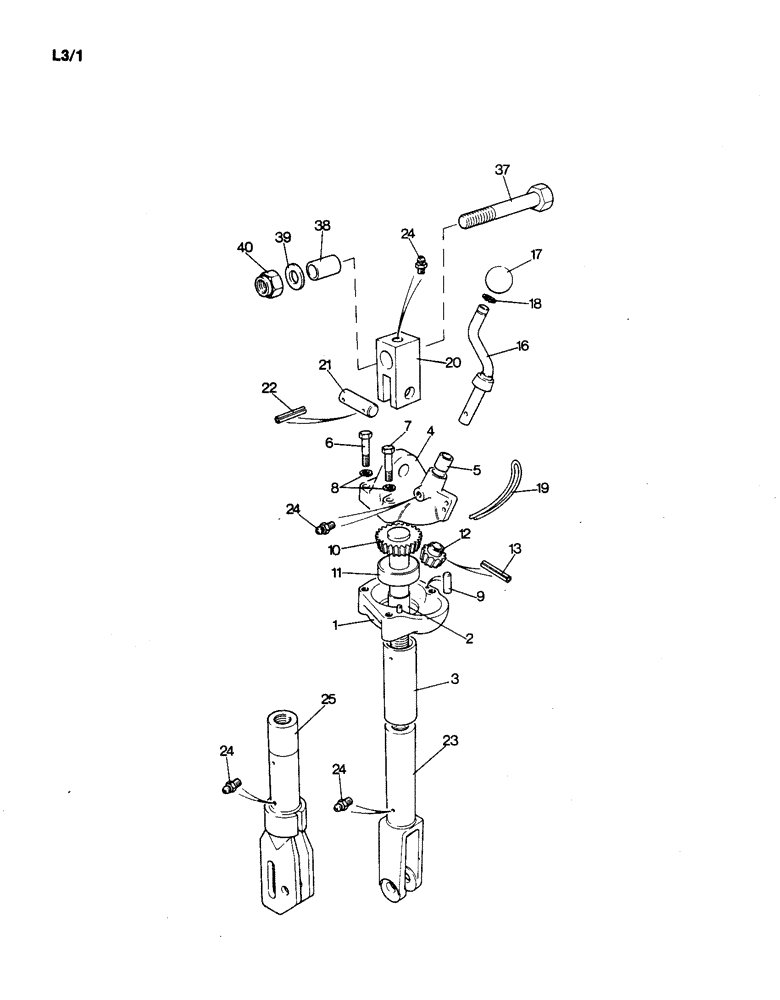

Запчасти Case IH 1190 (L-03) - LEVELING LEVER, DUAL CATEGORY LINKAGE (09) - IMPLEMENT LIFT

K204587

LEVER

LEVELING LEVER ASSEMBLY - with slotted nut

1шт.

K940508

LEVER

LEVELING LEVER ASSEMBLY - with standard nut, Includes Ref: 1 - 8

1шт.

1

K962977

HOUSING

GEAR HOUSING - with bushing and tube

1шт.

2

K621339

BUSHING

- gear housing

1шт.

3

K922657

TUBE,1.75" DIA x 5.25" L

- 1-3/4 x 5-1/4", gear housing

1шт.

4

K962691

COVER

CAP - with bushings and dowels

1шт.

5

K621340

BUSHING

- cap

2шт.

6

K600561

BOLT

- 3/8 UNC x 1-5/8", order K966393 (10)

2шт.

7

K600407

BOLT

- 3/8 UNC x 1-7/8", order K966388 (10)

2шт.

8

K19482

SPRING WASHER

WASHER - lock, 3/8 UNC, order K966206 (10)

4шт.

9

K32063

PIN

DOWEL - 3/16 x 1/2", order K966300 (10)

2шт.

10

K919770

SHAFT

LEVELING SCREW - 1" Whitworth x 9-5/16"

1шт.

11

K19187

THRUST BEARING

1шт.

12

K919769

GEAR

BEVEL PINION

1шт.

13

K623946

PIN

SPRING PIN - 5/32 x 15/16", order K967394 (10)

1шт.

16

K919761

LEVER

HAND LEVER - with knob

1шт.

17

K919763

BUTTON

KNOB

1шт.

18

K621790

RING, SNAP

RETAINING RING - 1/2", external - order K966592 (10)

1шт.

19

K924723

SPRING

LATCH

1шт.

20

K921914

FORK

END

1шт.

21

K948353

PIVOT PIN

1шт.

22

K623740

SPLIT PIN/SAFETY PIN

SPRING PIN - 3/16 x 7/8", order K966625 (10)

2шт.

23

K940700

NUT

ADJUSTING NUT - 1" Whitworth standard

1шт.

24

K945967

CLEVIS

GREASE FITTING - 1/4 ANF

3шт.

25

K945967

CLEVIS

ADJUSTING NUT - 1" Whitworth, slotted

2шт.

37

K69413

BOLT - 3/4 UNC x 3-3/4"

1шт.

38

K901963

BUSHING

1шт.

39

K19676

WASHER

- 3/4"

1шт.

40

K607446

NUT

- 3/4 UNC, self-locking

1шт.
