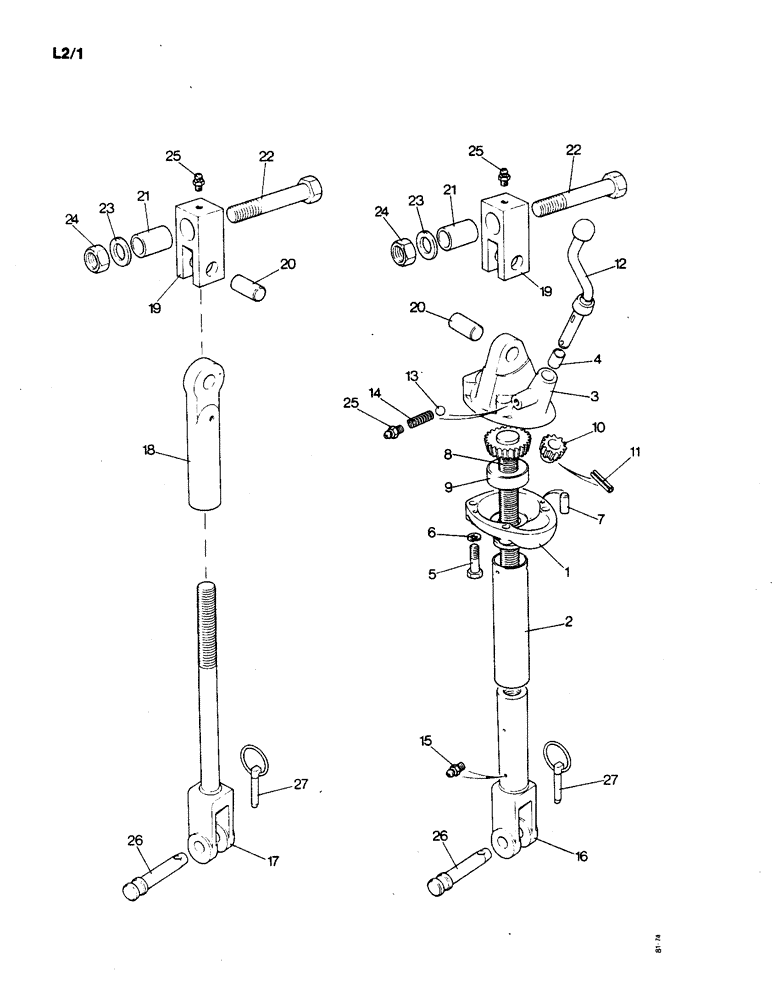

Запчасти Case IH 1190 (L-02) - LEVELING LEVER AND LIFT ROD, CATEGORY ONE (09) - IMPLEMENT LIFT

K940515

LEVER

LEVELING LEVER - complete

1шт.

1

K913166

GEAR

HOUSING, Includes Ref: 1 - 24

1шт.

2

K913165

TUBE

- 1-1/4 x 5", gear housing

1шт.

3

K961754

CAP

- with bushings and dowels

1шт.

4

K621373

BUSHING

- cap

2шт.

5

K602807

SCREW

BOLT - 5/16 UNC x 1-1/4", cap to gear housing - order K966406 (10)

4шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16", cap to gear housing - order K966205 (10)

2шт.

7

K32063

PIN

DOWEL - 3/16 x 1/2", cap to gear housing - order K966300 (10)

1шт.

8

K913224

BEVEL GEAR

LEVELING SCREW - 3/4 UNC x 7-7/16"

1шт.

9

K620181

THRUST BEARING

1шт.

10

K913170

GEAR

BEVEL PINION

1шт.

11

K623931

SPLIT PIN/SAFETY PIN

SPRING PIN - 1/8 x 11/16", order K966642 (10)

1шт.

12

K913171

LEVER

HAND LEVER

1шт.

13

K620179

BALL

STEEL BALL - 7/16", order K966538 (10)

1шт.

14

K625174

SPRING

1шт.

15

K622251

FITTING

GREASE FITTING - 5/16 BSF

1шт.

16

K922761

CLEVIS

ADJUSTING NUT - 3/4 UNC x 7-3/4"

1шт.

K940498

ROD

LIFT ROD - complete

1шт.

17

K922765

FORK

ADJUSTING SCREW

1шт.

18

K914197

EYE

END

1шт.

19

K921914

FORK

END

2шт.

20

K901962

PIN

PIVOT PIN

2шт.

21

K901963

BUSHING

2шт.

22

K601413

BOLT

- 3/4 UNC x 3-3/4", fork ends to lift arms

2шт.

23

K19476

WASHER

- 3/4", fork ends to lift arms - order K966204 (10)

2шт.

24

K607446

NUT

- 3/4 UNC, self-locking, fork ends to lift arms

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg

2шт.

26

K903399

HITCH PIN

LINK PIN

2шт.

27

K920359

PIN

LINCH PIN AND RING

2шт.
