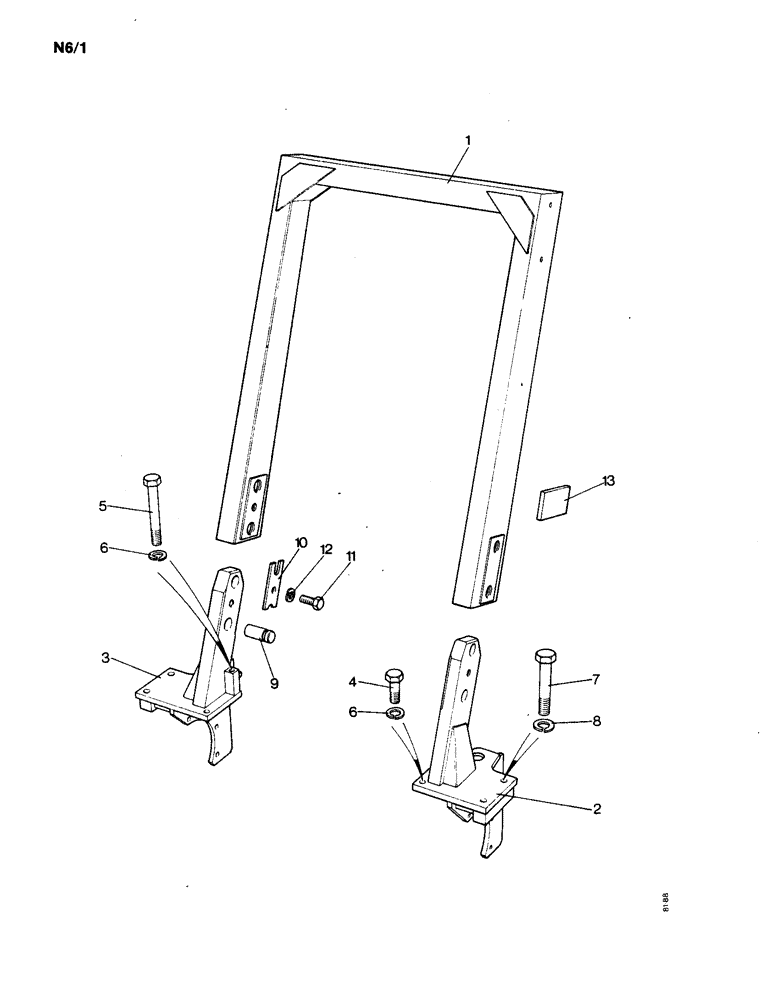

Запчасти Case IH 1190 (N-06) - AXLE MOUNTED ROLL BAR, UK4701 (08) - SHEET METAL

1

K300161

BAR

ROLL BAR

1шт.

2

K301395

BAR

SUPPORT - left hand

1шт.

3

K301396

BAR

SUPPORT - right hand

1шт.

4

K603107

BOLT,1/2" x 1 3/8"

BOLT - 1/2 UNC x 1-3/8", supports to rear axle

2шт.

5

K600890

BOLT

- 1/2 UNC x 4", supports to rear axle

2шт.

6

K626345

LOCK WASHER

WASHER - lock, 1/2", supports to rear axle - order K966716 (10)

4шт.

7

K601366

BOLT

- 5/8 UNC x 3-1/2", supports to final drives

4шт.

8

K19485

WASHER

- lock, 5/8", supports to final drives - order K966207 (10)

4шт.

9

K301379

PIN

- 32 mm diameter x 80

4шт.

10

K301380

PLATE

RETAINING PLATE

2шт.

11

K601465

BOLT

- 3/4 UNC x 2-1/4"

2шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/4", order K966206 (10)

2шт.

13

K302607

PAD

-, Serial Range: bar-fenders

2шт.
