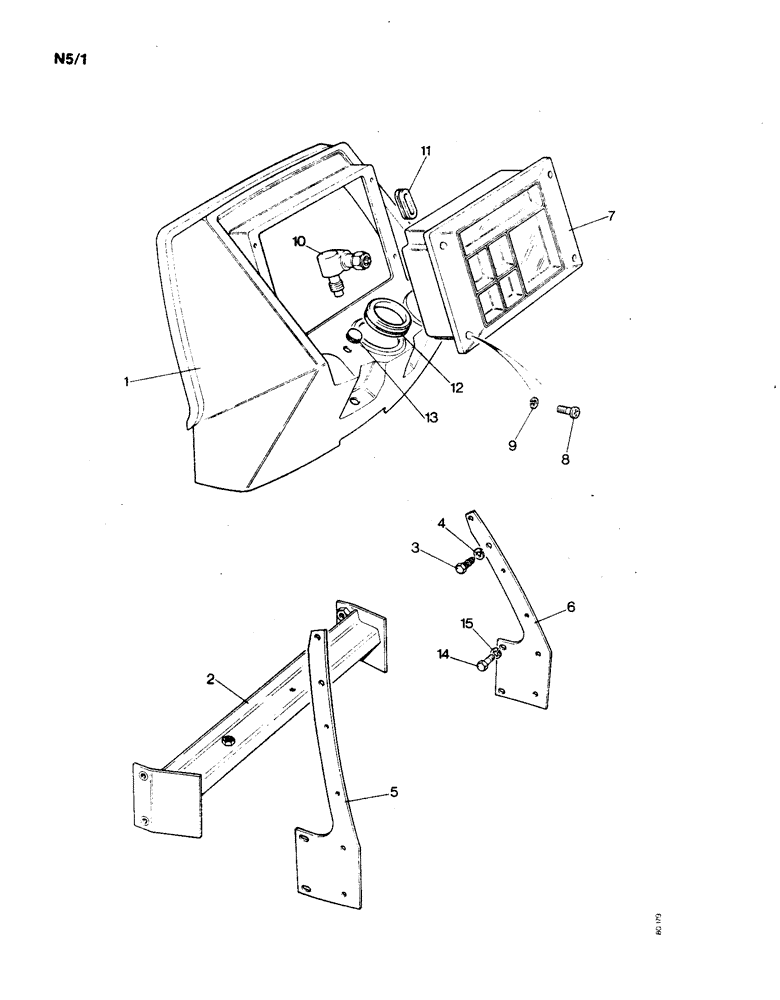

Запчасти Case IH 1190 (N-05) - INSTRUMENT PANEL AND SUPPORTS (08) - SHEET METAL

1

K300773

PANEL

INSTRUMENT PANEL

1шт.

2

K302428

SUPPORT

BRACKET - engine cover rear

1шт.

3

K624533

SCREW

- special, M8, panel to support bracket

8шт.

4

K651848

WASHER

- lock, 8 mm, panel to support bracket - order K967381 (10)

8шт.

5

K304343

PANEL

SUPPORT - instrument panel, left hand (Replaces K300274)

1шт.

6

K304344

PANEL

SUPPORT - instrument panel, right hand (Replaces K300275)

1шт.

7

K300269

CLUSTER

INSTRUMENT CLUSTER - see Figure B7

1шт.

8

K652502

SCREW,Pan, M5 x 0.8 x 16mm

- M5 x 10, order K967423 (10)

4шт.

9

K651846

WASHER, LOCK

WASHER - lock, 5 mm, order K967384 (10)

4шт.

10

K201998

ADAPTER

- engine speed indicator drive

1шт.

11

K627761

GROMMET

- throttle lever

1шт.

12

K627760

GROMMET

- steering column

1шт.

13

K627742

GROMMET

RUBBER PLUG - instrument panel

1шт.

14

K654047

SCREW

- M8 x 20, engine and panel, Serial Range: support-frame

4шт.

15

K651874

SPRING

WASHER - lock, 8 mm, engine and panel, Serial Range: support-frame

4шт.
