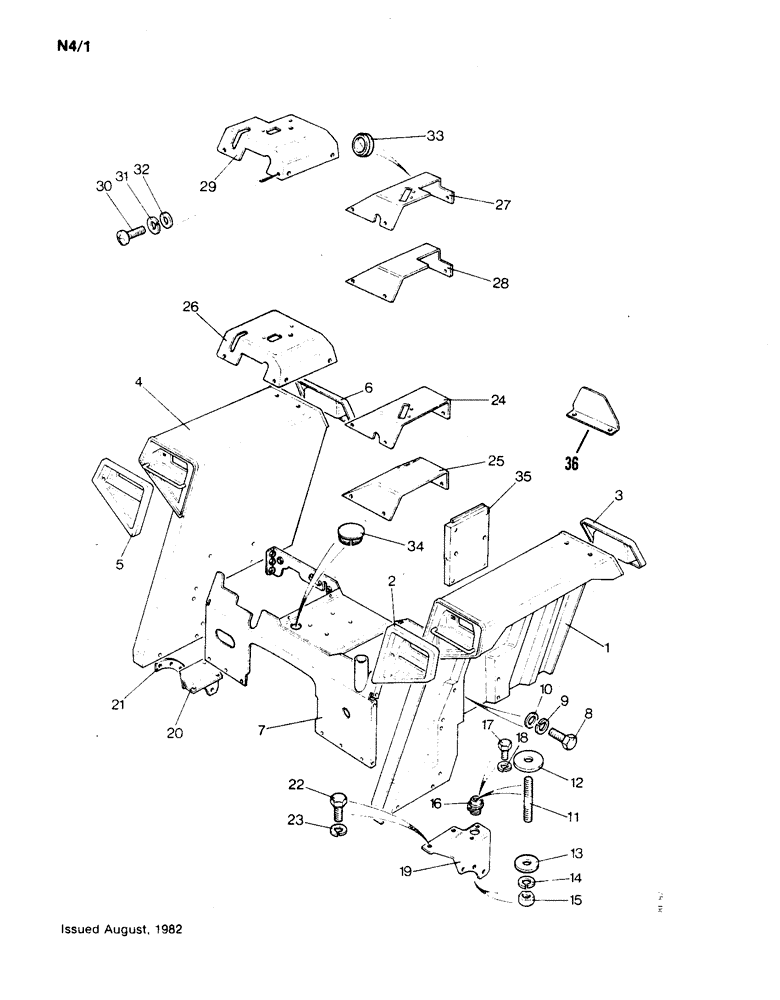

Запчасти Case IH 1190 (N-04) - REAR AXLE COVER, FENDERS AND MOUNTINGS (08) - SHEET METAL
№
Артикул
Название
Примечание
Количество
1
K300401
FENDER
FULL FENDER - left hand
1шт.
2
K300413
MOLDING
RUBBER MOULDING - front, left hand fender
1шт.
3
K300422
MOLDING
RUBBER MOULDING - rear, left hand fender
1шт.
4
K300403
FENDER
FULL FENDER - right hand
1шт.
5
K300423
MOLDING
RUBBER MOULDING - front, right hand fender
1шт.
6
K300405
MOLDING
RUBBER MOULDING - rear, right hand fender
1шт.
7
K300985
SHAFT
AXLE COVER - continuous clutch
1шт.
7
K300997
SHAFT
AXLE COVER - independent clutch
1шт.
8
K650643
BOLT
- M8 x 24
12шт.
9
K651848
WASHER
- lock, 8 mm
12шт.
10
K651778
WASHER
- 8 mm
12шт.
11
K608245
STUD
- 3/8 UNC x 3"
2шт.
12
K627465
WASHER
- 10 mm, special
2шт.
13
K627464
WASHER
- 10 mm, special
2шт.
14
K19482
SPRING WASHER
WASHER - lock, 3/8"
2шт.
15
280136
NUT,3/8"-16, G8
2шт.
16
K300649
BLOCK
RUBBER - mounting
2шт.
17
K650627
BOLT,M6 x 16mm
- M6 x 16
4шт.
18
K651847
WASHER, LOCK
WASHER - lock, 6 mm
4шт.
19
K300695
SUPPORT
BRACKET - left hand
1шт.
20
K300696
SUPPORT
BRACKET - right hand
1шт.
21
K300697
BUSHING
SPACER - bracket
2шт.
22
K603138
SCREW
BOLT - 1/2 UNC x 1"
4шт.
23
K626345
LOCK WASHER
WASHER - lock, 1/2"
4шт.
24
K300992
SHAFT
COVER - left hand, independent clutch, tractor without roll bar
1шт.
25
K301513
SHAFT
COVER - left hand, continuous clutch, tractor without roll bar
1шт.
26
K300995
COVER
- right hand, tractor without roll bar
1шт.
27
K300996
SHAFT
COVER - left hand, independent clutch, tractor with axle mounted roll bar
1шт.
28
K301511
SHAFT
COVER - left hand, countinuous clutch, tractor with axle mounted roll bar
1шт.
29
K300999
COVER
- right hand, tractor with axle mounted roll bar
1шт.
30
K650643
BOLT
- M8 x 24
12шт.
31
K651848
WASHER
- lock, 8 mm
12шт.
32
K651778
WASHER
- 8 mm
12шт.
33
K627770
GROMMET
- left hand cover
1шт.
34
K628015
PLUG
PLASTIC PLUG - 45 mm
1шт.
35
K954320
BOX
- operators manual
1шт.
36
K302725
BRACKET
- SMV
1шт.
Выбрано товаров: 37
