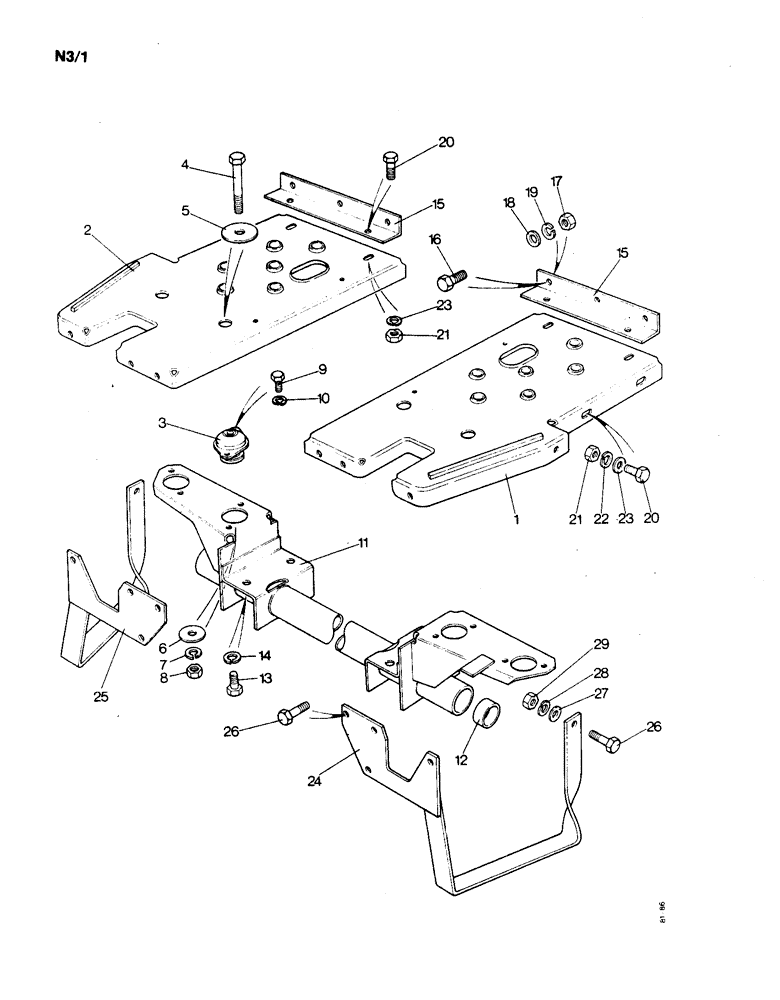

Запчасти Case IH 1190 (N-03) - FOOTPLATES AND MOUNTINGS (08) - SHEET METAL

1

K300782

PLATE ASSY.

FOOTPLATE - left hand

1шт.

2

K300787

PLATE ASSY.

FOOTPLATE - right hand

1шт.

3

K300649

BLOCK

RUBBER MOUNTINGS - front

4шт.

4

K600563

BOLT

- 3/8 UNC x 2-1/4", Serial Range: mountings-footplates

4шт.

5

K627465

WASHER

- 10 mm, special, Serial Range: mountings-footplates

4шт.

6

K627464

WASHER

-, Serial Range: mountings-footplats

4шт.

7

K19482

SPRING WASHER

WASHER - lock, 3/8", mountings to footplates - order K966206 (10)

4шт.

8

280136

NUT,3/8"-16, G8

Mountings to footplates - order K966474 (10) 3/8"-16, G8

4шт.

9

K650626

BOLT

- M6 x 14, rubber mounting to bracket - order K967401 (10)

8шт.

10

K651847

WASHER, LOCK

WASHER - lock, 6 mm, rubber mounting to bracket - order K967385 (10)

8шт.

11

K202133

SUPPORT

BRACKET - footplates

1шт.

12

K621309

BUSHING

- brake cross shaft

2шт.

13

K603138

SCREW

BOLT - 1/2 UNC x 1"

4шт.

14

K626345

LOCK WASHER

WASHER - lock, 1/2", order K966716 (10)

4шт.

15

K301635

BRACKET

ANGLE

2шт.

16

K650641

SCREW

BOLT - M8 x 16, order K967407 (10)

6шт.

17

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Order K967390 (10)

6шт.

18

K651778

WASHER

- 8 mm, order K967412 (10)

6шт.

19

K651848

WASHER

- lock, 8 mm, order K967381 (10)

6шт.

20

K650641

SCREW

BOLT - M8 x 16, order K967407 (10)

14шт.

21

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Order K967390 (10)

14шт.

22

K651848

WASHER

- lock, 8 mm, order K967381 (14)

14шт.

23

K651778

WASHER

- 8 mm, order K967412 (10)

8шт.

24

K300800

BRACKET

STEP - left hand

1шт.

25

K300798

BRACKET

STEP - right hand

1шт.

26

K650643

BOLT

- M8 x 25, step to footplates - order K967409 (10)

8шт.

27

K651778

WASHER

- 8 mm, step to footplates - order K967412 (10)

8шт.

28

K651848

WASHER

- lock, 8 mm, step to footplates - order K967381 (10)

8шт.

29

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Step to Footplates - Order K967390 (10)

8шт.
