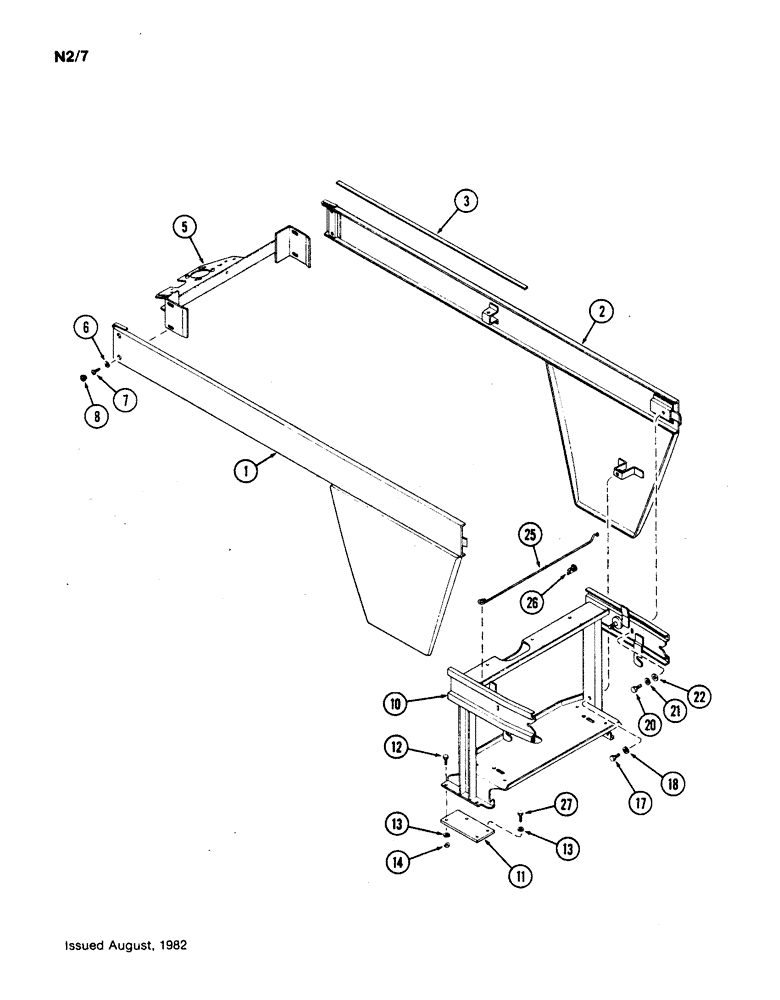

Запчасти Case IH 1190 (N-02[D]) - ENGINE HOOD SIDE FRAME AND SUPPORT, REAR OPENING HOOD (08) - SHEET METAL

1

K304412

PANEL

SIDE FRAME - hood, RH

1шт.

2

K304411

SPARE PART

SIDE FRAME - hood, LH

1шт.

3

K304909

STRIP

SLIDE STRIP - hood (Replaces K305949)

2шт.

5

K304367

SUPPORT

- rear, hood

1шт.

6

K651874

SPRING

WASHER - lock, 8 mm

4шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

- M8 x 20 mm

4шт.

8

K627992

PLUG

- waistrail, plastic

4шт.

10

K304342

FRAME

- support, front

1шт.

11

K304309

PLATE

- support

2шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

14

280136

NUT,3/8"-16, G8

4шт.

17

K655643

BOLT

- M8 x 18 mm hex

2шт.

18

K651848

WASHER

- lock, 8 mm

2шт.

20

K655643

BOLT

- M8 x 18 mm hex

2шт.

21

K651848

WASHER

- lock, 8 mm

2шт.

22

K651778

WASHER

- flat, 8 mm

2шт.

25

K304588

STAY

ROD - support, hood (475 mm)

1шт.

25

K304612

STAY

ROD - support, hood (275 mm)

1шт.

26

K657160

CLIP

- rod retaining

1шт.

27

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.
