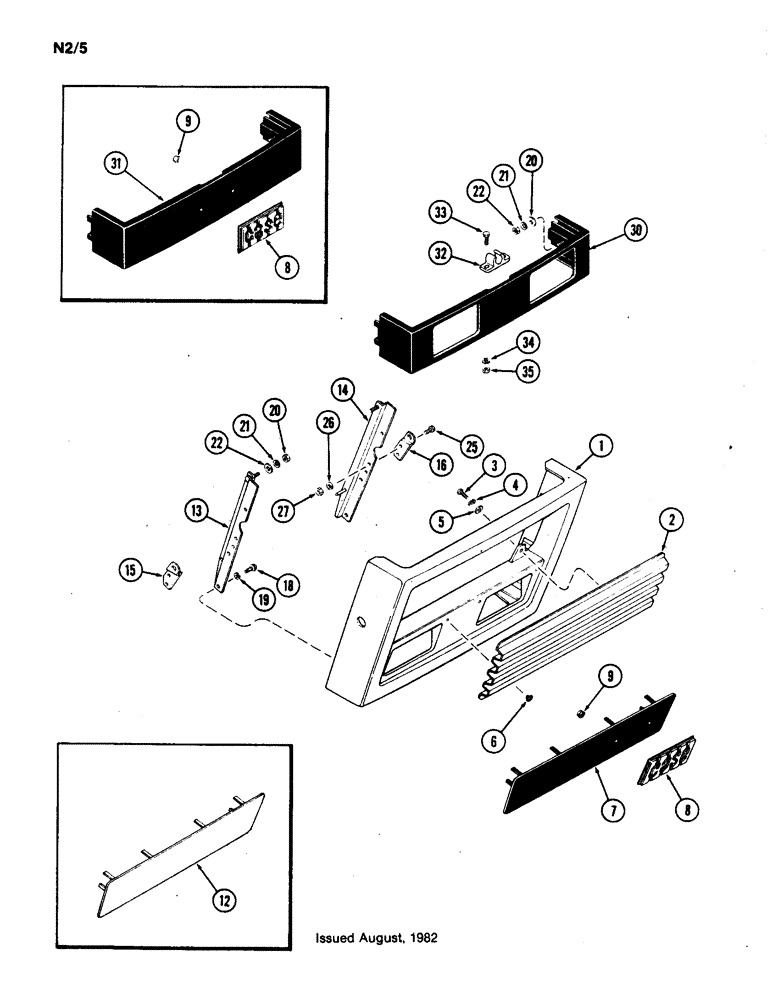

Запчасти Case IH 1190 (N-02[C]) - ENGINE FRONT GRILLE, REAR OPENING HOOD (08) - SHEET METAL

1

K300000

FRAME

- lower grille (For Inboard Head Lamps)

1шт.

1

K302153

FRAME - lower grille (For Outboard Head Lamps) (Not North America)

1шт.

2

K300093

GUARD

SCREEN - grille

1шт.

3

K652464

SCREW

BOLT - M5 x 16 mm hex

4шт.

4

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

5

K626946

WASHER

- flat, 5 mm special

4шт.

6

K627874

PLUG

- head lamp adjusters (For head lamps below waist rail)

4шт.

7

K304397

PLUG

PLATE - blank (Black) used with head lamps in waistrail)

1шт.

8

K300238

EMBLEM CASE/IH

MEDALLION - Case logo

1шт.

9

K623280

NUT

- medallion (Special)

2шт.

12

K302152

PLATE

- blank (white) use with outboard mounted lamps (Not North America)

1шт.

13

K304425

SUPPORT

- grille frame, RH

1шт.

14

K304426

SUPPORT

- grille frame, LH

1шт.

15

K302150

BRACKET

- support, RH (Not North America)

1шт.

15

K302149

BRACKET

- support, LH (Not North America)

1шт.

18

K624533

SCREW

- self tapping

6шт.

19

K626522

SEALING WASHER

- lock, 1/4"

6шт.

20

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

21

K651848

WASHER

- lock, 8 mm

4шт.

22

K626849

WASHER

- 8 mm, special

4шт.

25

K650341

SCREW

BOLT - M8 x 16 mm hex (Used with outboard head lamps)

4шт.

26

K651828

SPRING

WASHER - flat, 8 mm

4шт.

27

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

30

K304823

BRACKET

WAISTRAIL - front (Used with inboard lamps)

1шт.

31

K304921

WAISTRAIL - front (Used with outboard lamps) (Not North America)

1шт.

32

K304945

FASTENER

CATCH - hood

1шт.

33

K614946

SCREW,Pan, #10 - 32 x 3/4"

BOLT - #10 x 3/4" NF hex

2шт.

34

K626340

RING

WASHER - lock, 3/16"

2шт.

35

K617299

LOCK NUT

- #10 NF hex self locking

2шт.
