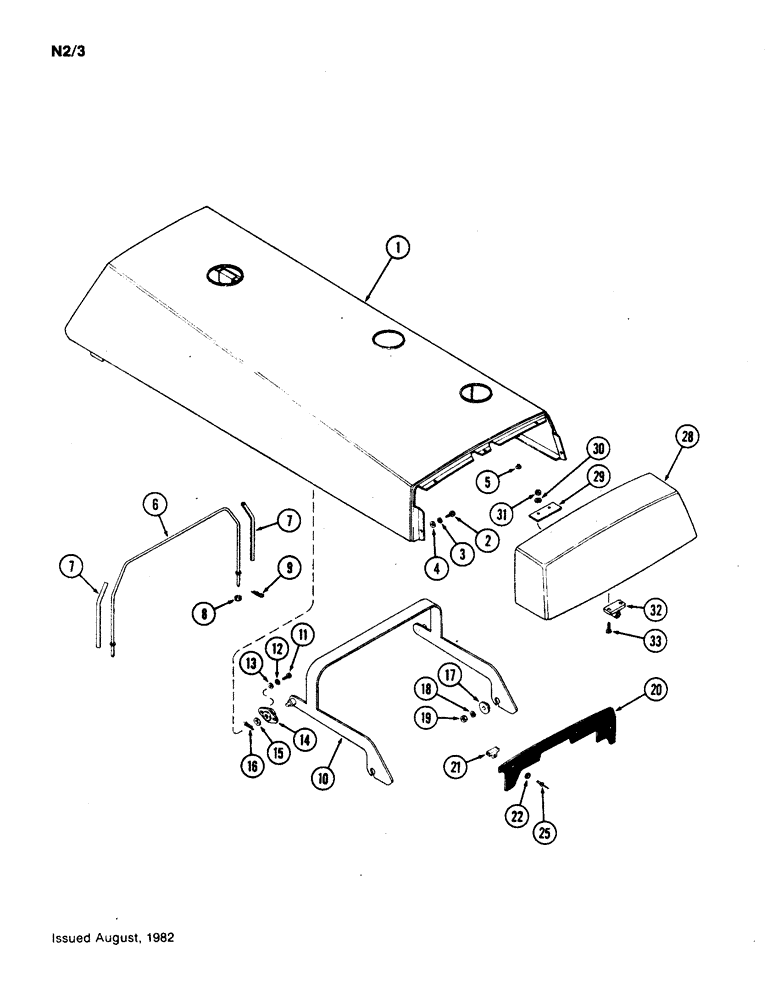

Запчасти Case IH 1190 (N-02[B]) - ENGINE HOOD AND HINGE, REAR OPENING HOOD (08) - SHEET METAL

1

K304938

HOOD

- engine

1шт.

2

K624533

SCREW

- 8 mm, self tapping

5шт.

3

K626552

WASHER

- lock, 1/4"

5шт.

4

K651778

WASHER

- flat, 8 mm

5шт.

5

K916596

PLUG

- rubber

2шт.

6

K305921

GUIDE

- hood

1шт.

7

K305949

STRIP

SLIDE - hood guide, rubber (Replaces K304909)

2шт.

8

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

- hood guide

2шт.

9

K624870

CLIP

- spring

2шт.

10

K304385

SUPPORT

CROSS MEMBER - hood pivot

1шт.

11

K655629

BOLT

- M6 x 20 mm hex

4шт.

12

K651847

WASHER, LOCK

WASHER - lock, 6 mm

4шт.

13

K19470

WASHER

- flat, 6 mm

4шт.

14

K300350

LINK

BRACKET - pivot

2шт.

15

K692199

WASHER

- pivot bracket

2шт.

16

K950865

CLIP

- retaining, 1/4"

2шт.

17

K205385

BUSHING

SPACER - pivot

2шт.

18

K651849

WASHER

- lock, 10 mm

2шт.

19

100016

NUT,M10 x 1.5, Cl 8

2шт.

20

K304481

RADIATOR

BAFFLE - radiator

1шт.

21

K657166

CLIP

- retaining

3шт.

22

K626776

WASHER

- retaining clip

3шт.

25

NSS

NOT SOLD SEPARAT

RIVET - clip retainer

3шт.

28

K956250

COVER

- engine hood, upper front

1шт.

29

K304946

PLATE

- catch

1шт.

30

K626340

RING

WASHER - lock, 3/16"

2шт.

31

K617299

LOCK NUT

- #10 UNF hex

2шт.

32

K304944

LOCK

CATCH - hood

1шт.

33

K615408

SCREW,Pan, #10 - 32 x 1"

BOLT - #10 x 1" UNF hex

2шт.
