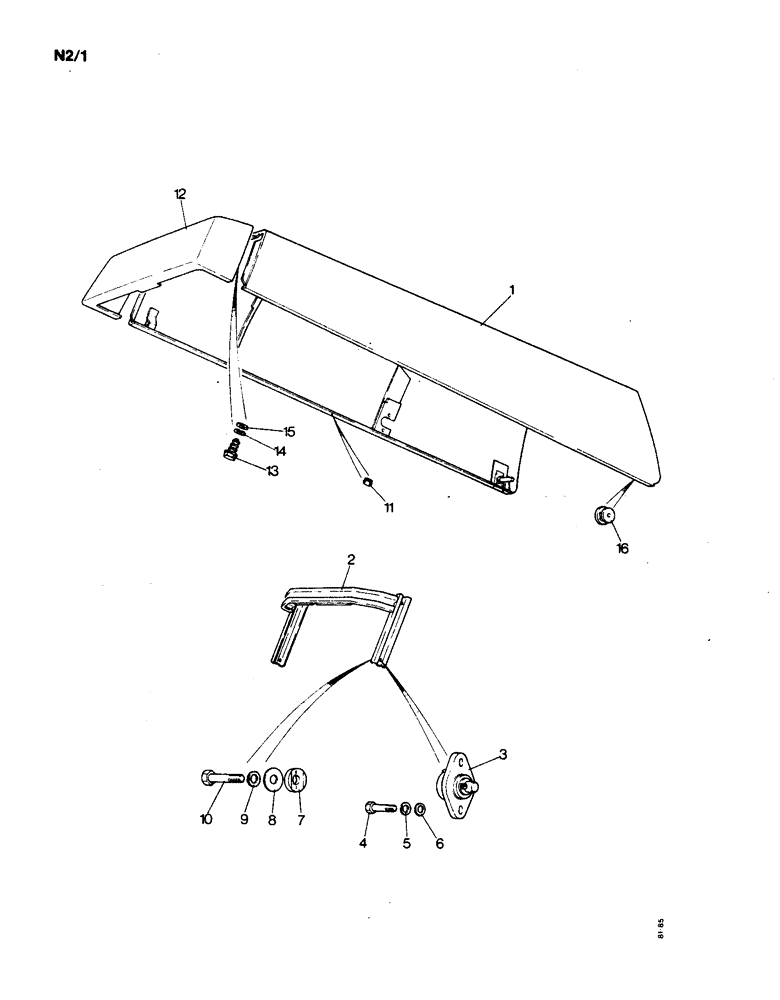

Запчасти Case IH 1190 (N-02[A]) - ENGINE HOOD AND HINGE, FRONT OPENING HOOD (08) - SHEET METAL

1

K300362

HOOD

ENGINE HOOD - top

1шт.

2

K300919

LINK

- tilt

1шт.

3

K300928

SUPPORT

BRACKET - pivot

4шт.

4

K650628

BOLT

- M6 x 20

8шт.

5

K651847

WASHER, LOCK

WASHER - lock, 6 mm

8шт.

6

K19470

WASHER

- 6 mm

8шт.

7

K300910

WASHER

- 8 mm, special, link to pivot brackets

4шт.

8

K692199

WASHER

- 8 mm, special, link to pivot brackets

4шт.

9

K651848

WASHER

- lock, 8 mm

4шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

11

K916596

PLUG

- rubber

6шт.

12

K956250

COVER

ENGINE HOOD - nose

1шт.

13

K624533

SCREW

- self-tapping, 8 mm

5шт.

14

K651848

WASHER

- lock, 8 mm

5шт.

15

K651778

WASHER

- 8 mm

5шт.

16

K300486

ROLLER

- tilt

2шт.
