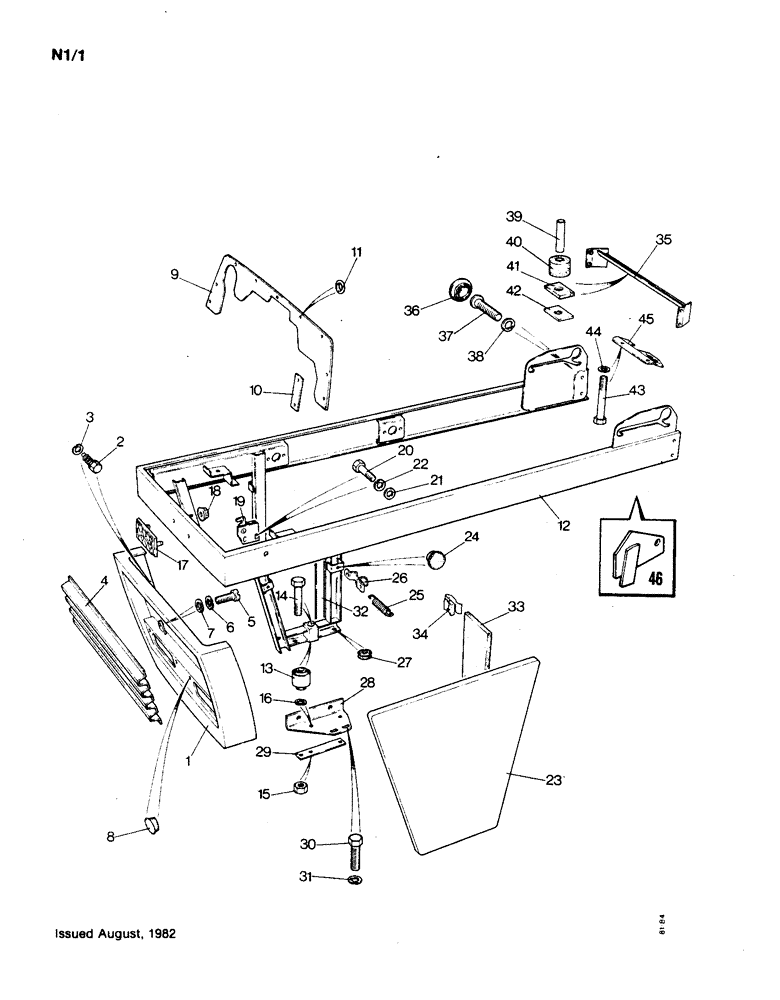

Запчасти Case IH 1190 (N-01) - ENGINE GRILLE AND FRAME, FRONT OPENING HOOD (08) - SHEET METAL

1

K301260

HOOD

ENGINE GRILLE - nose, lower

1шт.

2

K624533

SCREW

SELF TAPPING SCREW - lower, Serial Range: grille-support

6шт.

3

K651848

WASHER

- lock, 8 mm

6шт.

4

K300093

GUARD

GRILLE - lower

1шт.

5

K652464

SCREW

- M5 x 16

4шт.

6

K651846

WASHER, LOCK

WASHER - lower, 5 mm

4шт.

7

K626946

WASHER

- 5 mm, special

4шт.

8

K627874

PLUG

RUBBER PLUG - 12 mm, headlamp adjusters

4шт.

9

K300885

BAFFLE ASSY.

BAFFLE - radiator

1шт.

10

K301514

STRIP

- clamping

2шт.

11

K626776

WASHER

CUP WASHER - 1/8"

6шт.

12

K300655

SUPPORT

FRAME - engine hood

1шт.

13

K622851

BUSHING

MOUNTING - flexible, support frame

2шт.

14

K650649

BOLT

- M8 x 55, Serial Range: mounting-support

2шт.

15

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Mounting to Support

2шт.

16

K651848

WASHER

- lock, 8 mm

2шт.

17

K300238

EMBLEM CASE/IH

MEDALLION - CASE logo

1шт.

18

K623280

NUT

- 1/4", special

2шт.

19

K300500

LOCK

- left hand

1шт.

19

K300499

LOCK

- right hand

1шт.

20

K650628

BOLT

- M6 x 16

4шт.

21

K651777

WASHER

- 6 mm

4шт.

22

K651847

WASHER, LOCK

WASHER - lock, 6 mm

4шт.

23

K300225

PANEL

SIDE PANEL - engine

2шт.

24

K627771

BUTTON

RUBBER PLUG - 3/8", side panel engine hood

4шт.

25

K624940

SPRING

- side panel engine hood

2шт.

26

K915791

GRIP

FINGER GRIP - side panel engine hood

2шт.

27

K627754

GROMMET

- 14 mm, side panel engine hood

4шт.

28

K301211

SUPPORT

BRACKET - left hand

1шт.

28

K301213

SUPPORT

BRACKET - right hand

1шт.

29

K300296

SHIM

PLATE - spacing, bracket

2шт.

30

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

31

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

32

K300811

RADIATOR

SEALING STRIP - radiator side

2шт.

33

K300888

SEAL

- side panel

2шт.

34

K621744

CLIP

- panel seal

8шт.

35

K302428

SUPPORT

REAR SUPPORT - engine hood frame

1шт.

36

K627992

PLUG

- socket screw

4шт.

37

K654047

SCREW

- socket

4шт.

38

K651874

SPRING

WASHER - lock

4шт.

39

K627007

TUBE,0.375" OD x 1.016" L

SPACER - engine hood support to cross beam

2шт.

40

K626462

DAMPER

PACKING - engine hood support to cross beam

2шт.

41

K915725

WASHER

RUBBER WASHER - engine hood support to cross beam

2шт.

42

K915726

PLATE

CLAMPING PLATE - engine hood support to cross beam

2шт.

43

K650632

BOLT

- M6 x 40

2шт.

44

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

45

K300200

SUPPORT

- engine hood frame

1шт.

46

K301679

GUIDE

PLATE - blanking L.H. (Shown)

1шт.

46

K301678

GUIDE

PLATE - blanking R.H.

1шт.
