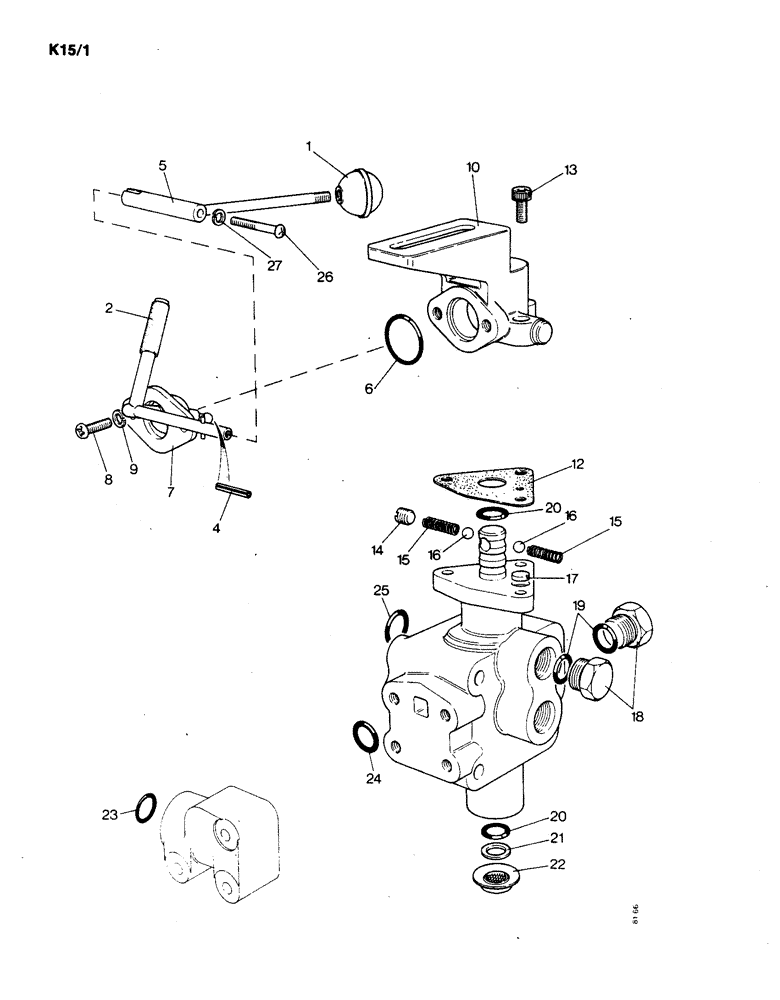

Запчасти Case IH 1190 (K-15) - THREE WAY VALVE ASSEMBLY (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
K204765
VALVE
- three-way, Includes Ref: 1 - 22
1шт.
1
K929750
KNOB
- lever
1шт.
2
K204724
LEVER
1шт.
4
K943367
PIN
- 5/32 x 1-3/8"
1шт.
5
K204726
LEVER
HANDLE
1шт.
6
K16351
O-RING,3.53mm Thk x 24.99mm ID
- 1", internal diameter
1шт.
7
K919613
SHIM
PLATE - lever retaining
1шт.
8
86625206
SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"
- No. 10 UNF x 1/2", order K967277 (10)
2шт.
9
K626340
RING
SPRING WASHER - 3/16", order K966713 (10)
2шт.
10
K957259
COVER
1шт.
12
K944527
GASKET,0.15mm Thk
- order K967176 (10)
1шт.
13
K606501
SCREW
- 1/4 UNC x 5/8"
3шт.
14
K606020
SCREW
GRUB SCREW - 5/16 UNC x 1/4", order K966467 (10)
1шт.
15
K625208
SPRING
2шт.
16
K17063
BALL
STEEL BALL - 1/4", order K966143 (10)
2шт.
17
K915393
FOAM
BREATHER PAD - order K967066 (10)
1шт.
18
K948415
PLUG
- 3/4 UNF
2шт.
18
K948415
PLUG
- 3/4 UNF, special
2шт.
19
K623589
O-RING
- 5/8", internal diameter, order K966607 (10)
2шт.
20
K625408
O-RING
- 7/16", internal diameter
2шт.
21
K628059
RING,Split, 11.11mm ID x 15.88mm OD x 1.47mm Thk
BACK-UP RING
1шт.
22
K919826
BREATHER
1шт.
K965998
SEAL
KIT - seals, Includes Ref: 23, 24, 25, 19, 20, 21, 17, 12
1шт.
23
K24676
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
- 5/8", internal diameter, order K966264 (10)
1шт.
24
K24852
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
- 11/16", internal diameter, order K966714 (10)
1шт.
25
K24556
O-RING,0.734" ID x 1.012" OD x 0.139"
- 3/4", internal diameter
1шт.
19
K623589
O-RING
- 5/8", internal, order K966607 (10)
1шт.
20
K625408
O-RING
- 7/16"
2шт.
21
K628059
RING,Split, 11.11mm ID x 15.88mm OD x 1.47mm Thk
BACK-UP RING
2шт.
17
K915393
FOAM
BREATHER PAD - order K967066 (10)
1шт.
12
K944527
GASKET,0.15mm Thk
- order K967176 (10)
1шт.
26
K600154
BOLT
- 1/4 UNC x 1-3/4"
1шт.
27
K626341
SPRING WASHER
SPRING WASHER - 1/4", order K966714 (10)
1шт.
Выбрано товаров: 33
